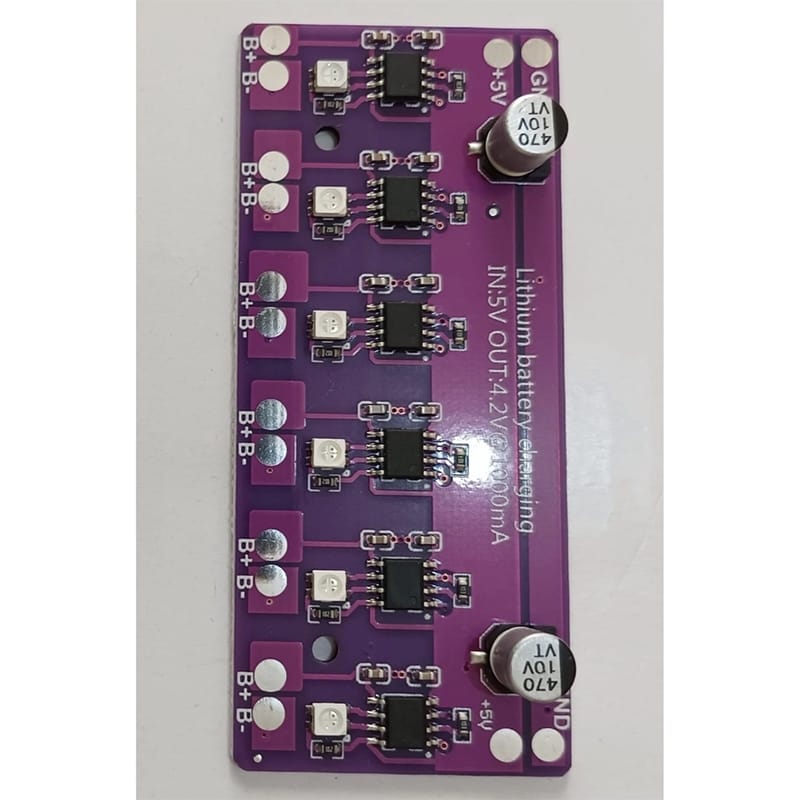

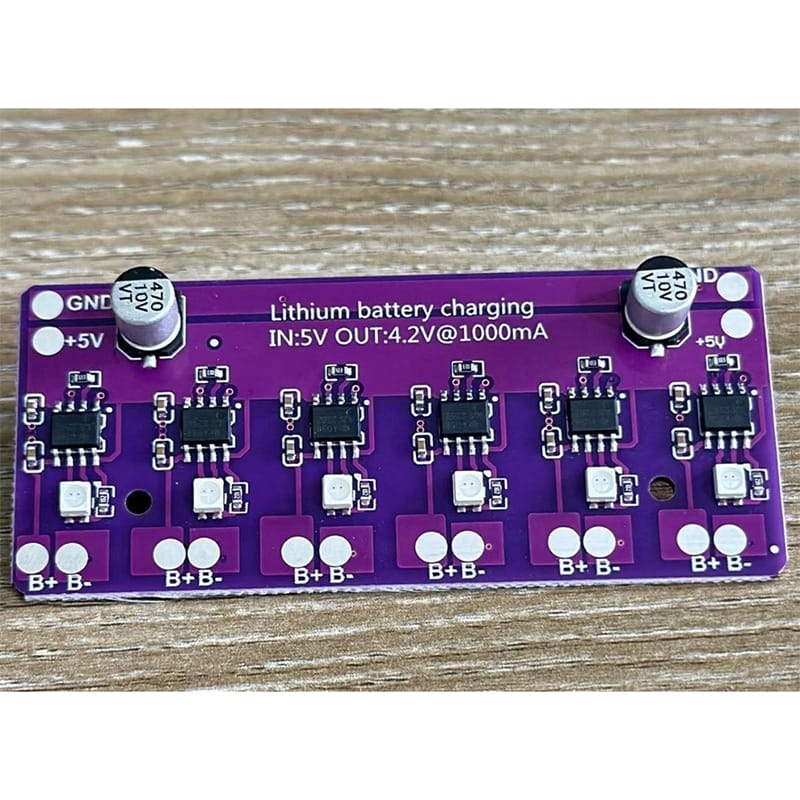

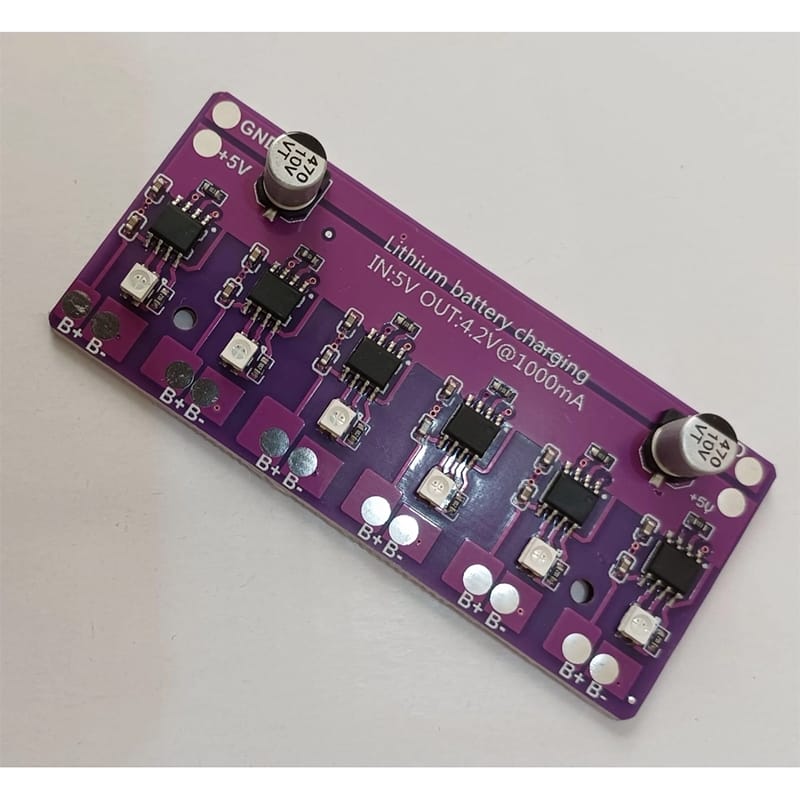

6in1Charging Module PCB Circuit Board Charger Array 5V Input for 18650 4.2V Lithium Battery Accessories

Features:

1.6 * 1A can be output in parallel to increase current

2.Lithium battery charging module 4056 is independent of 6 groups in parallel, with each group outputting 1000ma

3.Supports charging 6 batteries together for 5V input circuit

4.The output shares the same ground and can be connected in parallel to increase the output current

5.With status indicator light, more convenient to use

Parameters:

Input voltage: 5V-6V (exceeding the voltage can cause damage)

Output voltage: 4.2V (± 1%)

Output current: 1A

Status indicator: LED charging red light, fully charged to green (hanging green light always on or flashing green light)

Body size: 40MM * 67MM * T10MM

Instructions for use:

1.The input cannot be reversed or overpressure, and the output cannot be reversed to the battery, otherwise it will cause chip damage.

2.The output is common to the ground, and multiple parallel connections can be used to increase the output current, but the battery cannot be charged in series.

3.This product does not include a transformer, and the customer comes with a 5V 6A power transformer.​
