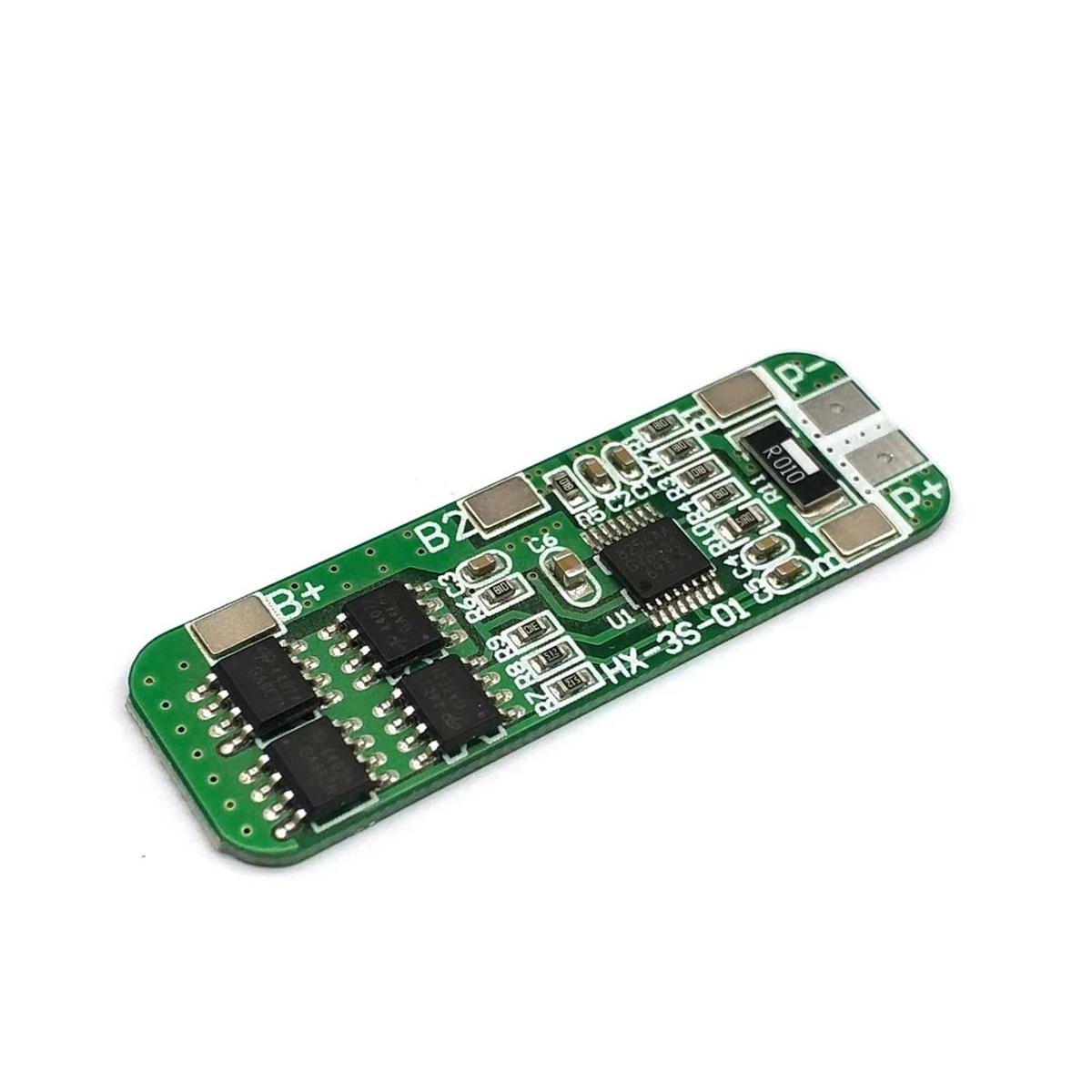

Feature:Short circuit protection.Overcharge protection.Over-discharge protection.Overcurrent protection.Can be applied to various 3.7V lithium core.Compact size and lightweight.Fine workmanship and durable.Ensure the security of battery pack.Suitable for:10.8V (Rated voltage of polymer battery)11.1V (18650 or 3.7V lithium battery rated voltage)12.6V (Lithium battery full charge voltage)

• Size: approx.50x16x1mm
• Maximum discharge current: 10A
• Overcharge detection voltage: 4.25-4.35V±0.05V
• Over-discharge detection voltage: 2.3-3.0V±0.05V
• Maximum working current: 5A-8A
• Transient current: 9A-10A
• Operating temperature: -40~50°
• Storage temperature: -40~80°
• Quiescent current: <6uA
• Internal resistance: <60mΩ
• Service life: >30,000 hours
