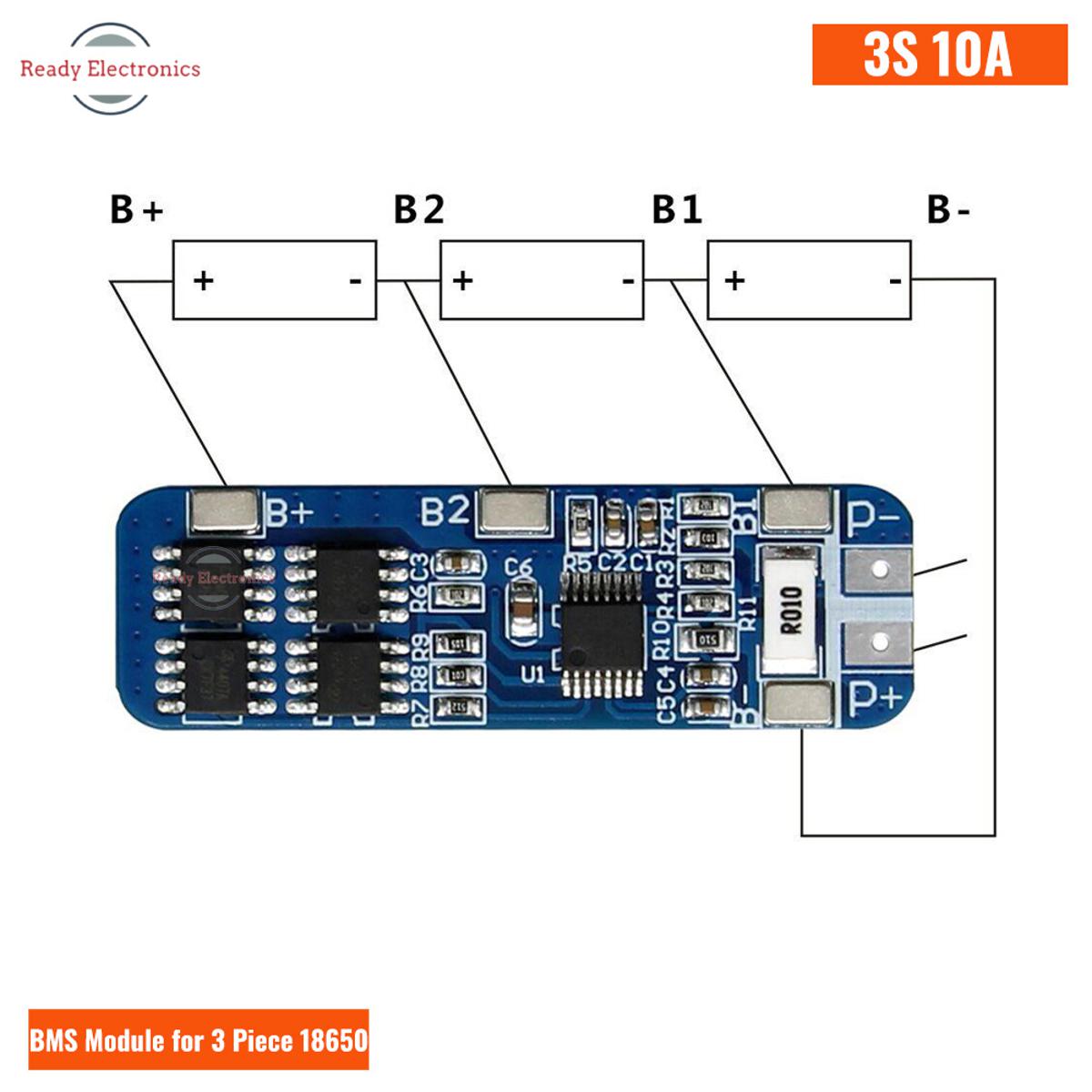

3S 10A 12V 18650 Li-ion Lithium Battery BMS Charger Protection Boar

Category:
SKU: RDE01740
Seller: READY ELECTRONICS
Tk 173
Tk 375
Tk 375
54% OFF
0 review(s)



  • Maximum discharge current: 10A
  • Overcharge detection voltage: 4.25-4.35V±0.05V
  • Over-discharge detection voltage: 2.3-3.0V±0.05V
  • Maximum working current: 5A-8A
  • Transient current: 9A-10A
  • Operating temperature: -40~50°
  • Storage temperature: -40~80°
  • Quiescent current: ＜6uA
  • Internal resistance: ＜60mΩ
  • Service life: ＞30,000 hours



Call For Order : 09613-800800
    1. Short circuit protection.
    2. Over charge protection.
    3. Over-discharge protection
    4. Overcurrent protection.
    5. Can be applied to various 3.7V lithium core.
    6. Suitable for: 10.8V (Rated voltage of polymer battery), 11.1V (18650 or 3.7V lithium battery rated voltage), 12.6V (Lithium battery full charge voltage)







  • Maximum discharge current: 10A
  • Overcharge detection voltage: 4.25-4.35V±0.05V
  • Over-discharge detection voltage: 2.3-3.0V±0.05V
  • Maximum working current: 5A-8A
  • Transient current: 9A-10A
  • Operating temperature: -40~50°
  • Storage temperature: -40~80°
  • Quiescent current: ＜6uA
  • Internal resistance: ＜60mΩ
  • Service life: ＞30,000 hours
