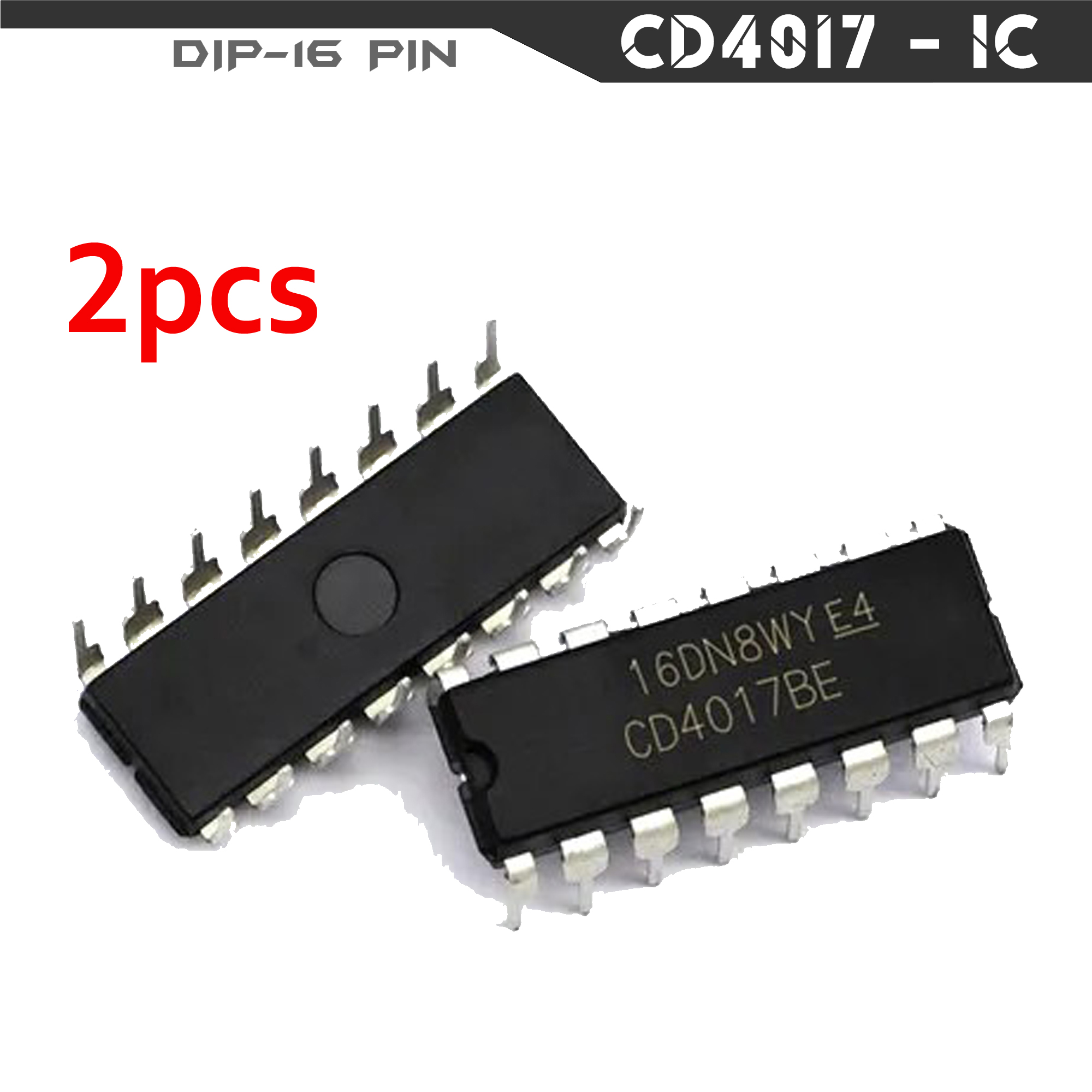

2Pcs- CD4017 CD4017BE CD-4017 4017 DIP-16 Pin Leads Dual In Package IC Breadboard Friendly IC

Name: 2Pcs- CD4017 CD4017BE CD-4017 4017 DIP-16 Pin Leads Dual In Package IC Breadboard Friendly IC
SKU: SKNT79661
Price: 102 BDT
Availability: InStock

Category: Others

SKU: SKNT79661

Seller: Skynet

bKash 10% Cashback ( T&C)

Tk 60

Tk 102

41% OFF

0 review(s)

Select Color: *

Call For Order : 09613-800800

Description: CD4017 Johnson Counter

Theis used for counting applications, it has the capability to turn on 10 outputs sequentially in a pre-defined time and reset the count or hold it when required. It also has the capability to indicate the status of counting using Carry pin. This is commonly used for Led chasers and other logical output projects, so if you are looking for an sequential decoded counting IC that can count up to 10 then this IC will be your right choice

CD4017 PinConfiguration

Pin Number	Pin Name	Description
1 to 7 and 9,10,11	Output pins Q0 to Q9	These are the 10 output pins on which the counting occurs, they are not in order hence verify pin diagram above
8	Vss or Ground	Connected to the Ground of the circuit
12	Carry Out (CO)	This pin goes high after the IC counts from 1 to 10. This is used as carry while counting.
13	Clock Enable (EN)	This is an input which when made high will hold the count at the current state
14	Clock	The counting happens when this clock pulse goes high , this pin is normally connected toor other uC to produce a pulse
15	Resets	As the name suggests this pin resets the count back to 1
16	Vdd / Vcc	Connects to the supply voltage typically +5V

Features

High speed 16 pin CMOS Decade counter
Supports 10 decoded outputs
Wide supply voltage range from 3V to 15V, typically +5V
TTL compatible
Maximum Clock Frequency: 5.5Mhz
Available in 16-pin PDIP, GDIP, PDSO packages
