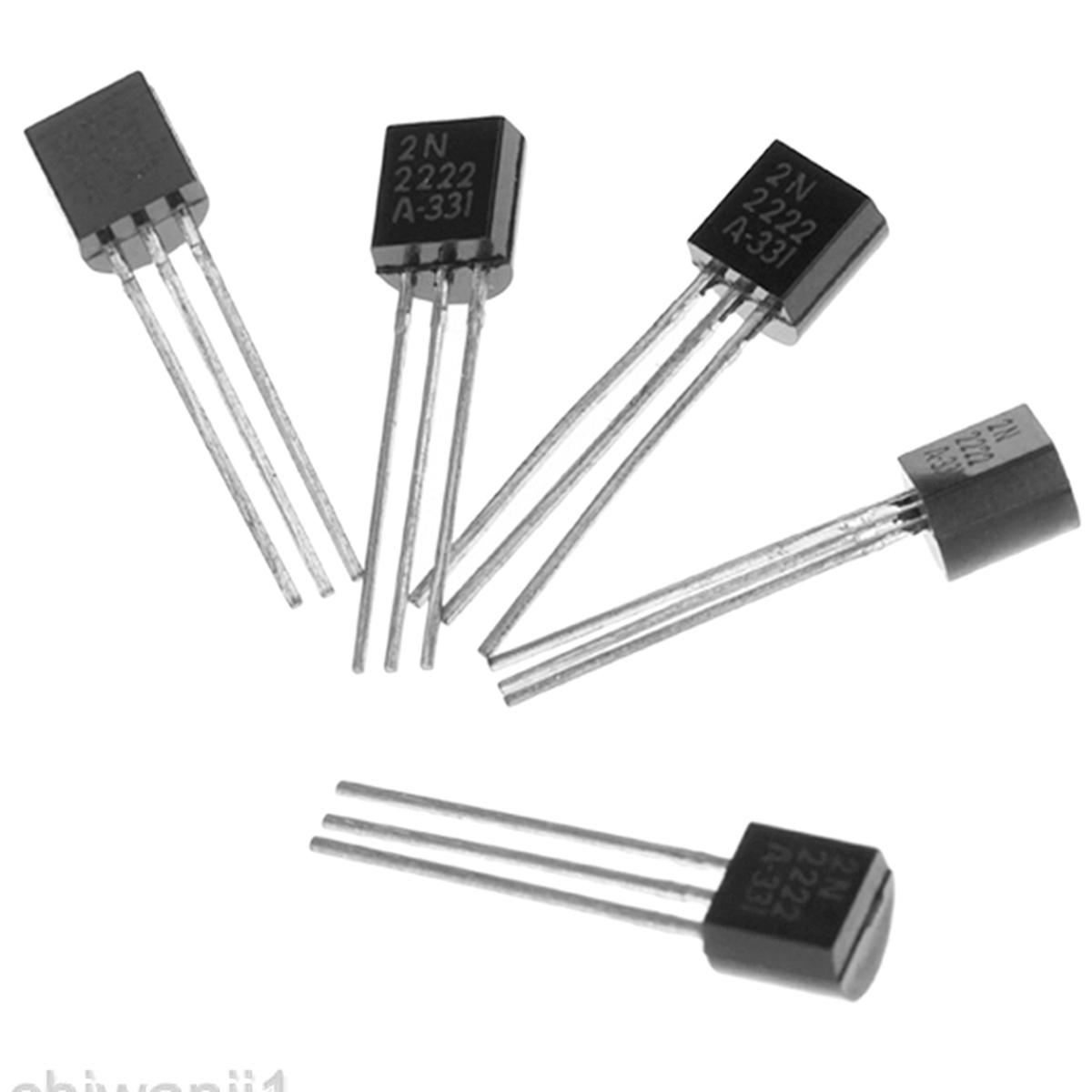

N2222A 60V 0.8A NPN Transistor TO-92.

• Type Designator: 2N2222A

• Material of transistor: Si

• Polarity: NPN

• Maximum collector power dissipation (Pc), W: 0.5

• Maximum collector-base voltage |Ucb|, V: 60

• Maximum collector-emitter voltage |Uce|, V: 30

• Maximum emitter-base voltage |Ueb|, V: 5

• Maximum collector current |Ic max|, A: 0.8

• Maksimalna temperatura (Tj), °C: 175

• Transition frequency (ft), MHz: 250

• Collector capacitance (Cc), pF: 8

• Forward current transfer ratio (hFE), min: 100

• Type Designator: 2N2222A
• Material of transistor: Si
• Polarity: NPN
• Maximum collector power dissipation (Pc), W: 0.5
• Maximum collector-base voltage Ucb, V: 60
• Maximum collector-emitter voltage Uce, V: 30
• Maximum emitter-base voltage Ueb, V: 5
• Maximum collector current Ic max, A: 0.8
• Maksimalna temperatura (Tj), °C: 175
• Transition frequency (ft), MHz: 250
