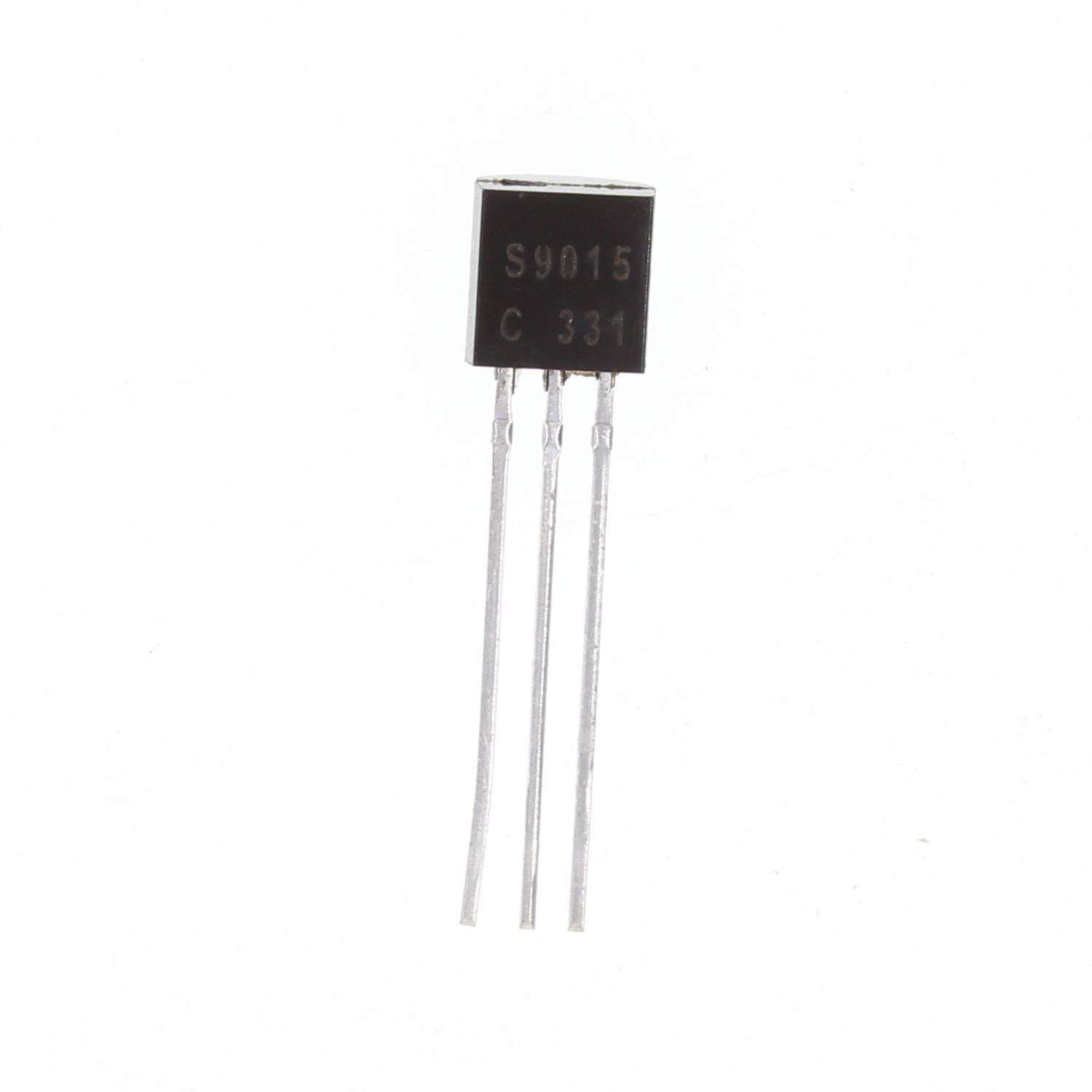

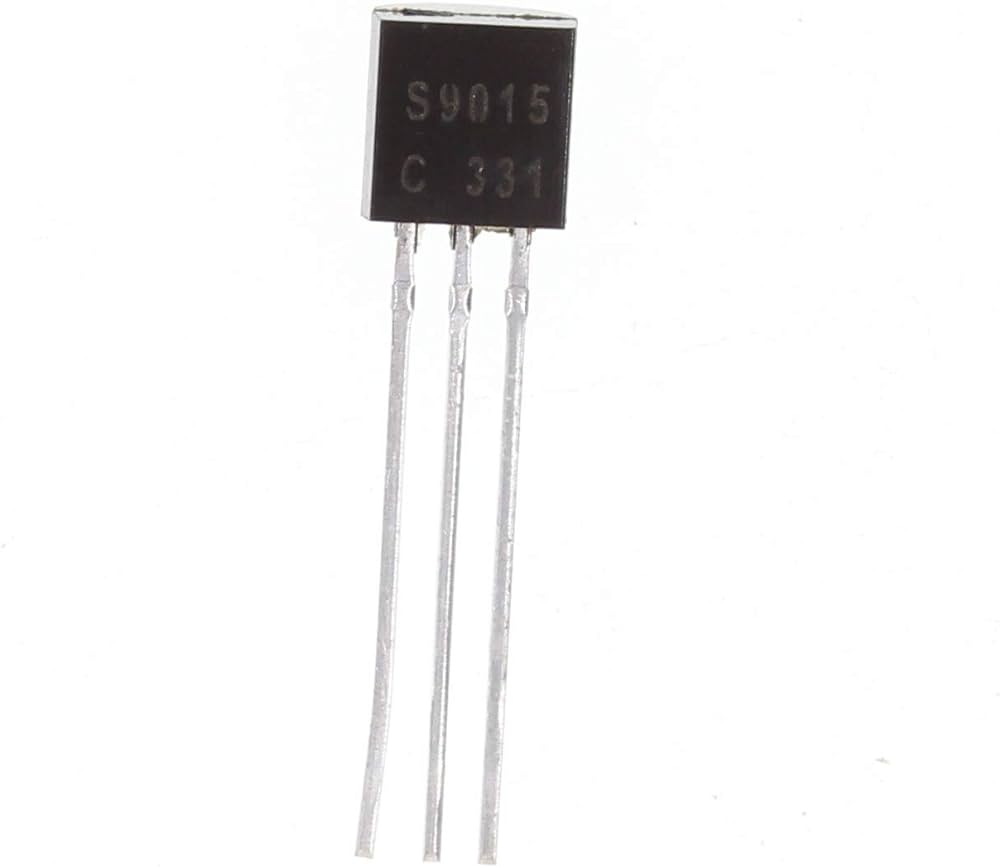

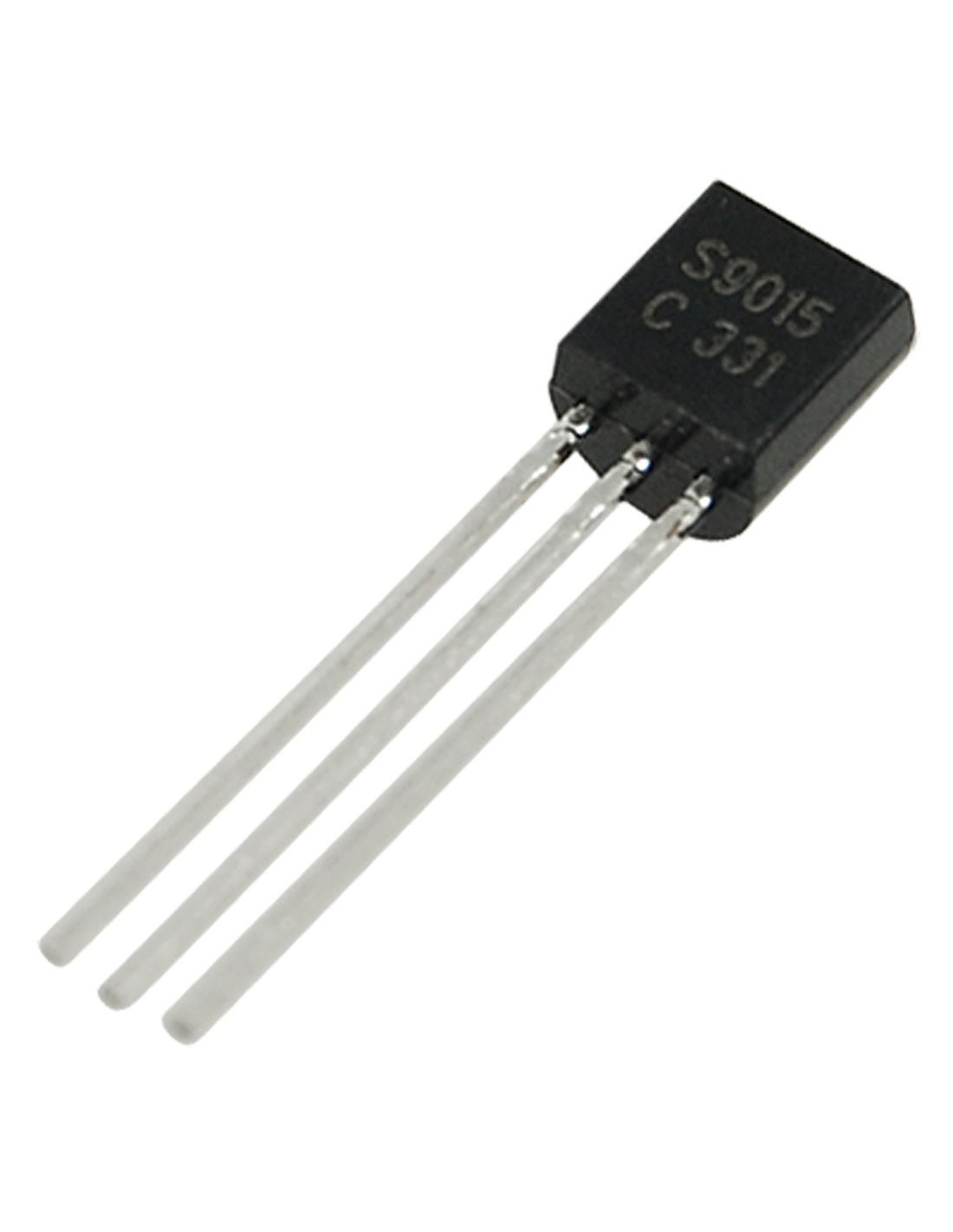

SS9015 S9015 PNP 20V 500mA Transistor TO-92 Package Transistor pnp Small Signal Transistor 3 Pin Leads For Audio Amplifiers

SS9015 is a well-known PNP silicon BJT transistor. This transistor is mainly designed for low gain signals amplification. Normally when a low gain signal is amplified to high gain then the noise with the signal is also get amplified but this transistor possess low noise feature which filters noise from the amplified signal and hence you will get a low noise and high gain signal at the output. The max collector dissipation of the transistor is 400mW that is enough to drive a small 2 to 3 inch 4Ohms or 8Ohms speaker directly if any small few milliwatt input signal is provided. Other than these uses it can also be used as a switch to drive loads under -100mA. The transition frequency is 150MHz due which it can also be used in RF circuits under 150 MHz frequency spectrum.

• Package Type: TO-92
• Transistor Type: PNP
• Max Collector Current(I_C):  –100mA
• Max Collector-Emitter Voltage (V_CE):  –45V
• Max Collector-Base Voltage (V_CB):  –50V
• Max Emitter-Base Voltage (VEBO):  –5V
• Max Collector Dissipation (Pc): 400 miliWatt
• Max Transition Frequency (fT): 150 MHz
• Minimum & Maximum DC Current Gain (h_FE): 60 – 1000
