Description

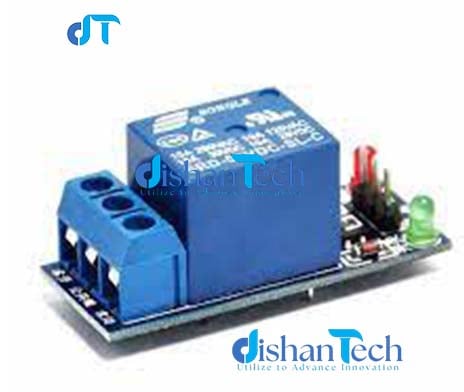

It is a 1 Channel 5V Relay Board Module. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 1-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Features:

1. 5V 1-Channel Relay interface board, and each one needs 15-20mA Driver Current
2. Equipped with high-current relay, AC250V 10A ; DC30V 10A
3. It has a relay status indicator led Power LED(Green), 1 relay status indicator LED(Red)
4. Relay control interface by single-chip IO.
5. Low-level suction close, high-level release.
6. Easy to use, simple 3 line structure.
7. Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x 1 Channel 5V Relay Board Module.
