Specification

Capacity: Fingerprint: 20,000, Card: 50,000, Transaction: 500,000

Communication: TCP/IP, RS485 (For fingerprint & card Reader), USB Host, Wigand Input / Output, Wi-Fi(Optional)

Access Control Interface: Lock Relay Output, Alarm Output / Auxiliary Input/ Exit Button / Door Sensor, Security Relay Box

Hardware: 1.2GHz High Speed CPU, Memory 128MB RAM / 256MB Flash, Silk ID Fingerprint Sensor. 2.4 Inches TFT LCD Screen, 125KHz EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Touch Keypad, POE(Standard IEEE 802.3at), Wireless doorbell(Optional)

Standard Functions: Access Levels / Groups / Holidays/ DST / Bell Schedule, Duress Mode, Anti-Pass back, Record Query, Custom Wallpaper& Screen Saver

Special Functions: Multiple Verification Modes, Alive Finger Detection, ZK Encrypted Card (Optional), Fingerprint Card (Optional)

Compatibility: Wigand Slave Reader, RS485 FP Slave Reader, ZKBio Security Software

Additional Info: Working Temperature: 0°C ~ 45 °C, Dimensions: 200.5 × 88.5 × 28.7 mm, Fingerprint Algorithm ZKFinger v10.0

Fingerprint: FAR≤0.0001% FRR≤0.01%, Package Includes 12V 3A Power Supply

Power Operating Voltage: 12V DC 3A, Current Draw < 500mA

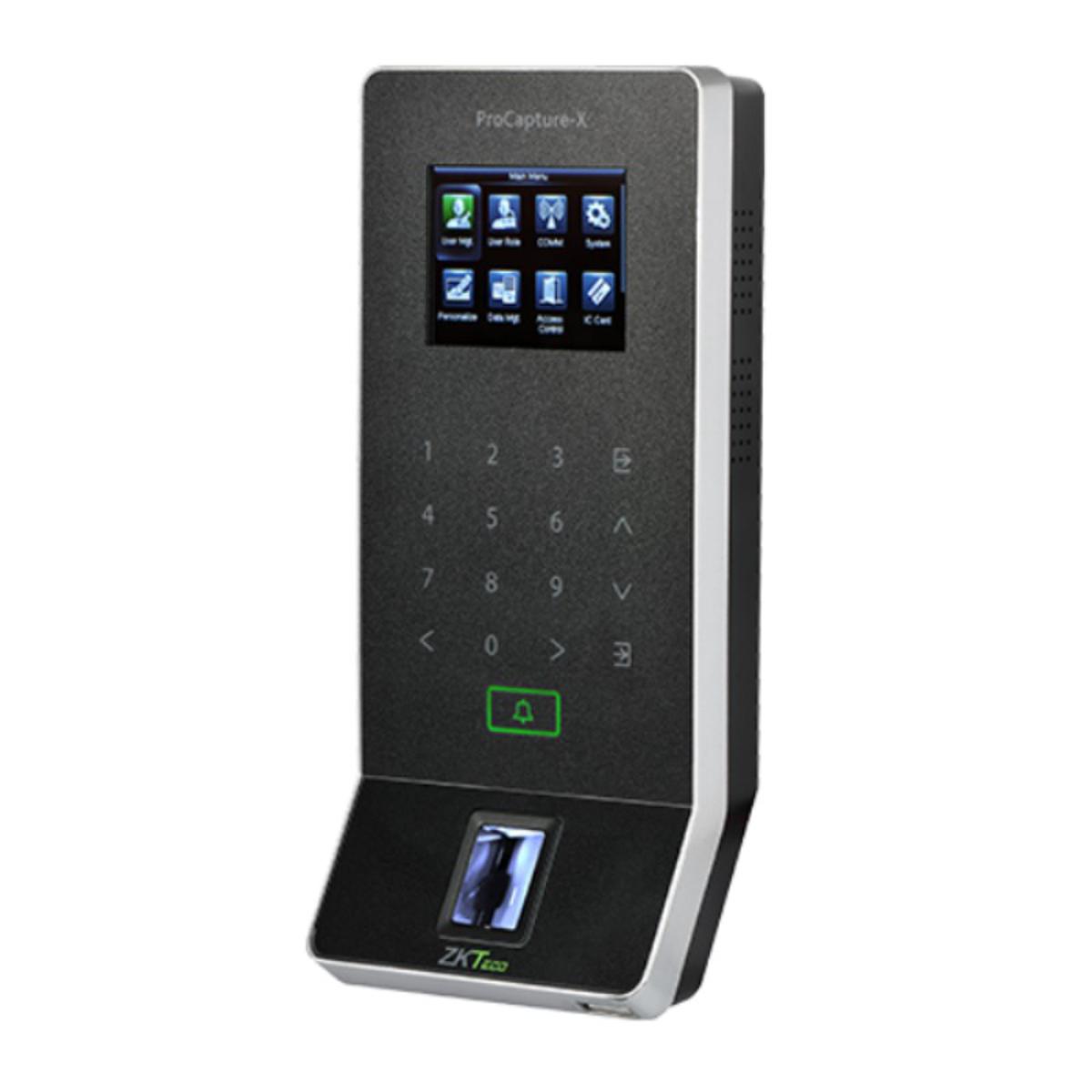

ZKTeco ProCapture-X Fingerprint

• Fingerprint Capacity 20,000
• ID Card Capacity 50,000
• Log Capacity 5,00,000
• 2.4 Inch Screen Display

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
