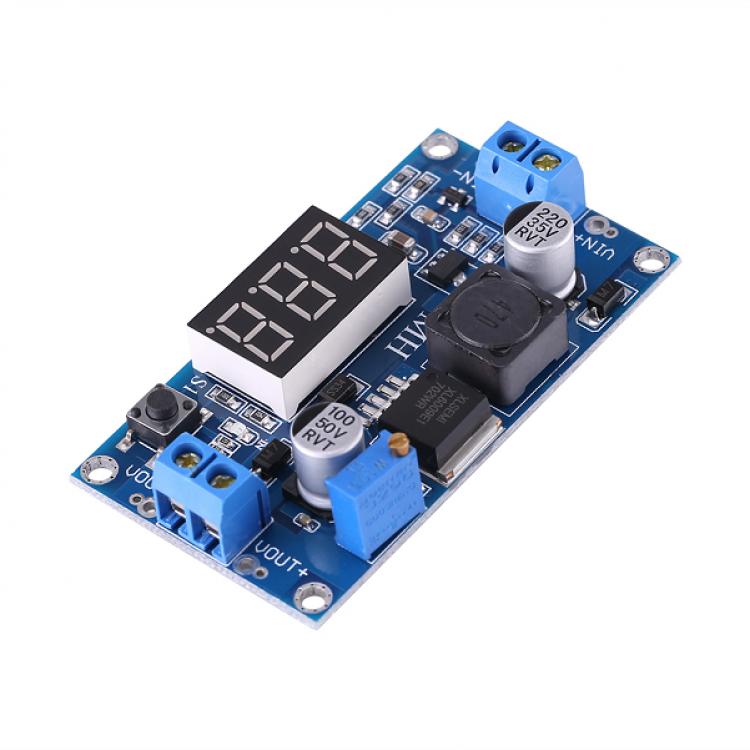

XL6009 Step Up Module With Display

Category:
SKU: RDE01437
Seller: READY ELECTRONICS
App Coupon & 10% Extra Savings ( T&C)
Tk 480
Tk 800
Tk 800
40% OFF
0 review(s)
  • Length: 60mm
  • Width: 35mm
  • Height: 13.5mm
  • Weight: 24g
  • Input Voltage: 3-32V
  • Output Voltage: 5-35V
  • Output Current: 4A(MAX)
  • Output Ripple: 50mV (Higher voltage, larger current and ripple)
  • Switching Frequency: 400KHz (LM2577 only 50KHz)
  • Operating Temperature: -45 to +85 degree centigrade
  • Transfer Efficiency: less than or equal to 94%
  • Load Regulation: plus or minus 0.5%

Call For Order : 09613-800800
  • XL6009 Boost Module
  • Length: 60mm
  • Width: 35mm
  • Height: 13.5mm
  • Weight: 24g
  • Input Voltage: 3-32V
  • Output Voltage: 5-35V
  • Output Current: 4A(MAX)
  • Output Ripple: 50mV (Higher voltage, larger current and ripple)
  • Switching Frequency: 400KHz (LM2577 only 50KHz)
  • Operating Temperature: -45 to +85 degree centigrade
  • Transfer Efficiency: less than or equal to 94%
  • Load Regulation: plus or minus 0.5%





  • Length: 60mm
  • Width: 35mm
  • Height: 13.5mm
  • Weight: 24g
  • Input Voltage: 3-32V
  • Output Voltage: 5-35V
  • Output Current: 4A(MAX)
  • Output Ripple: 50mV (Higher voltage, larger current and ripple)
  • Switching Frequency: 400KHz (LM2577 only 50KHz)
  • Operating Temperature: -45 to +85 degree centigrade
  • Transfer Efficiency: less than or equal to 94%
  • Load Regulation: plus or minus 0.5%
