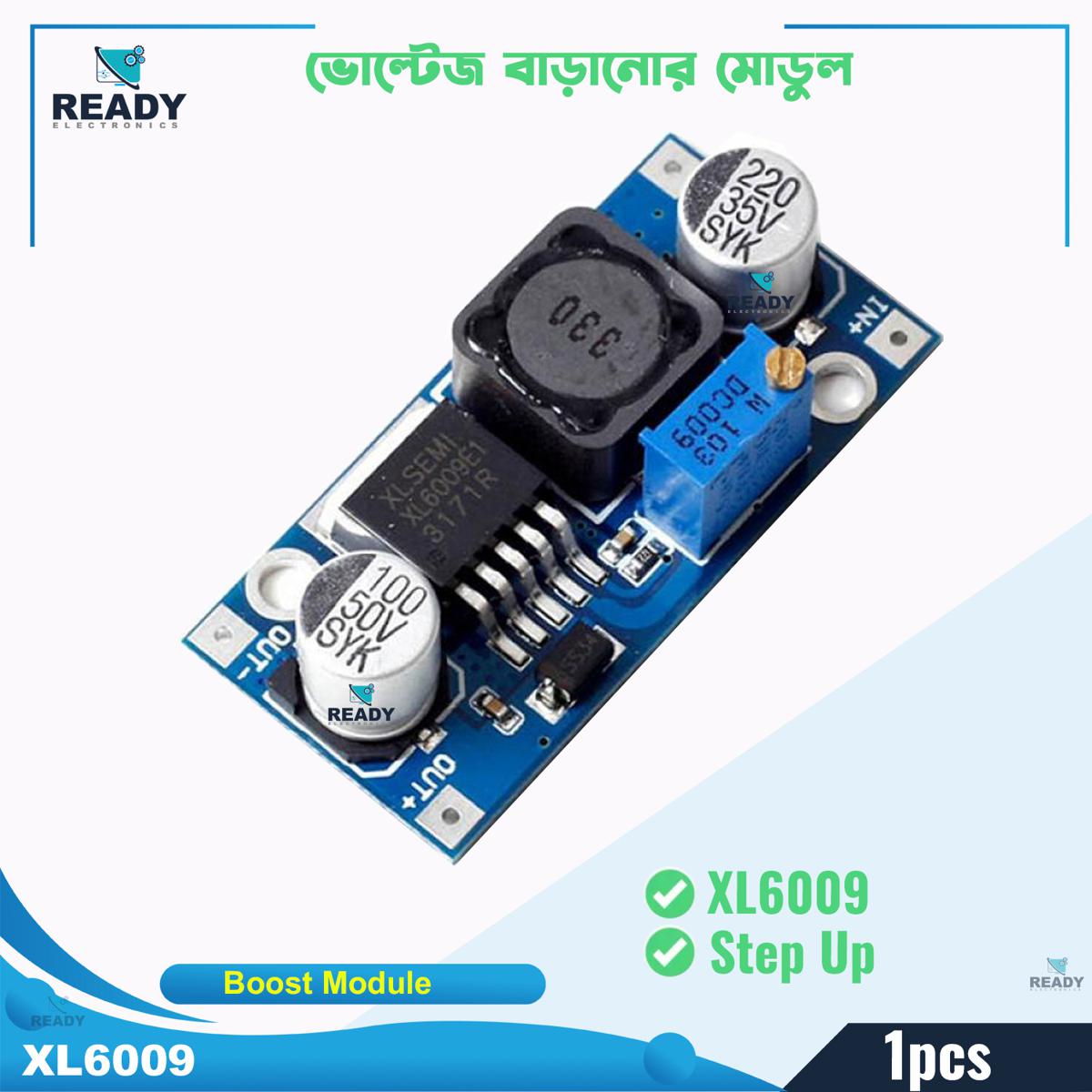

XL6009 DC-DC Step Up Module

Category:
SKU: RDE02236
Seller: READY ELECTRONICS
Tk 90
Tk 200
Tk 200
55% OFF
0 review(s)
  • Model specifications: xl6009 Step-Up Module
  • Module properties: Non-isolated boost (boost)
  • Rectification mode: Non synchronous rectifier
  • Input range: 3v~32v
  • Output Range: 5v~35v
  • Input current: 4A (max), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the larger the no-load current. )
  • Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
  • Switch frequency: 400KHz
  • Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load Adjustment Rate: ± 0.5%
  • Voltage Adjustment Rate: ± 0.5%
  • Working temperature: -40℃~ +85℃
  • Overall dimensions: 43mm * 21mm * 14mm (long * wide * high)

Call For Order : 09613-800800
XL6009 DC-DC Step Up Module





  • Model specifications: xl6009 Step-Up Module
  • Module properties: Non-isolated boost (boost)
  • Rectification mode: Non synchronous rectifier
  • Input range: 3v~32v
  • Output Range: 5v~35v
  • Input current: 4A (max), no-load 18mA (5V input, 8V output, no-load less than 18mA. The higher the voltage, the larger the no-load current. )
  • Conversion efficiency: <94% (the greater the pressure difference, the lower the efficiency)
  • Switch frequency: 400KHz
  • Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
  • Load Adjustment Rate: ± 0.5%
  • Voltage Adjustment Rate: ± 0.5%
  • Working temperature: -40℃~ +85℃
  • Overall dimensions: 43mm * 21mm * 14mm (long * wide * high)
