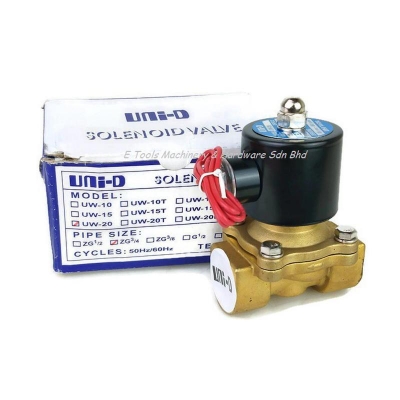

UNI-D Solenoid Valve 3/4″

Name: UNI-D Solenoid Valve 3/4″
SKU: MTBD659557
Price: 1800.00 BDT
Availability: InStock

Category: Home Improvement

SKU: MTBD659557

Seller: MACHINE & TOOLS BD

App Coupon to Get Extra Discount

Tk 1,800

0 review(s)

Model: UW-20
Made: UNI-D
Working medium : air,water,oil,gas
Motion Pattern : Direct Drive Type
Type : Normal Close Type / Normal Open Type
Aperture of Flow Rate : 20mm.
Joint Pipe Bore : 3/4″
Operation Fluid Viscosity : below 20 CST
Working Pressure : Water/Oil :0~5 kgf/cm2 , Air /Gas:0~7 kgf/cm2
Max.Pressure Resistance : 10.5 kgf/cm2
Operating Temperature Range : -5~100℃
Voltage: AC220V
Voltage Range : 10%
Material of Body : Brass
Material of Oil Seal : NBR , EPDM , VITON
