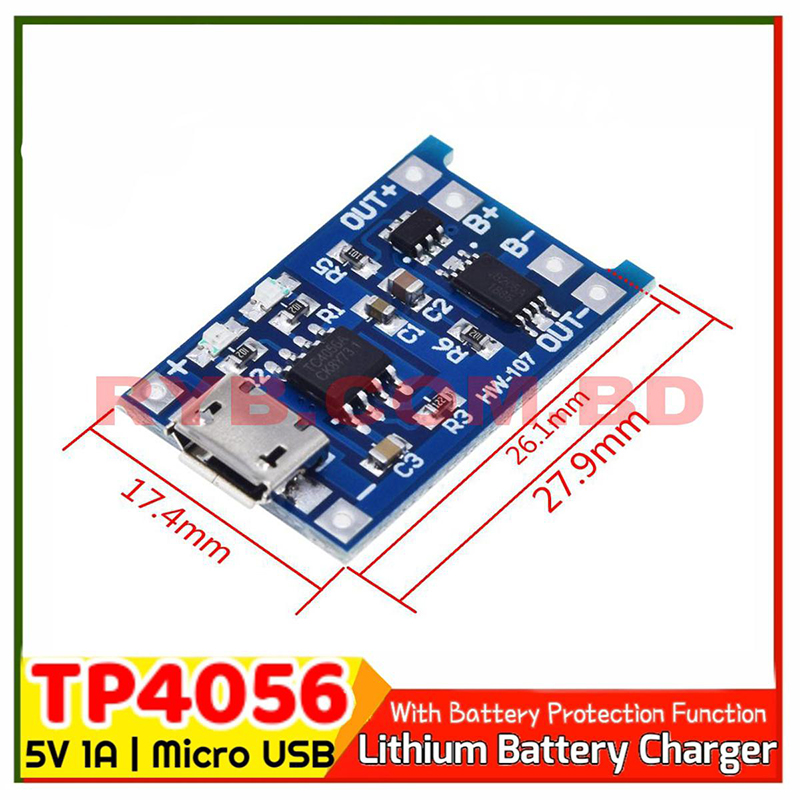

TP4056 Charging Module 5V 1A 18650 Lithium Battery Charging Board with Protection Charger Module TP4056-Type-Micro

Category: Battery & Charger
SKU: GRIC820966
Seller: GREEN ELECTRONICS.
Tk 85
0 review(s)
  • Input voltage: 5V
  • Charging cut-off voltage: 4.2V ± 1%
  • Maximum charge current: 1000mA
  • Battery over-discharge protection voltage: 2.5V
  • Battery overcurrent protection current: 3A
  • Charge module: Linear charging.
  • Current: 1A (Adjustable)
  • Charge precision: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charge voltage: 4.2V
  • LEDs: Red - charging - green - charged.
  • Input interface: mini USB and Solder plates
  • Work temperature: - (10 to 85) degree C.

Call For Order : 09613-800800

  • Input voltage: 5V
  • Charging cut-off voltage: 4.2V ± 1%
  • Maximum charge current: 1000mA
  • Battery over-discharge protection voltage: 2.5V
  • Battery overcurrent protection current: 3A
  • Charge module: Linear charging.
  • Current: 1A (Adjustable)
  • Charge precision: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charge voltage: 4.2V
  • LEDs: Red - charging - green - charged.
  • Input interface: mini USB and Solder plates
  • Work temperature: - (10 to 85) degree C.





  • Input voltage: 5V
  • Charging cut-off voltage: 4.2V ± 1%
  • Maximum charge current: 1000mA
  • Battery over-discharge protection voltage: 2.5V
  • Battery overcurrent protection current: 3A
  • Charge module: Linear charging.
  • Current: 1A (Adjustable)
  • Charge precision: 1.5%
  • Input voltage: 4.5V-5.5V
  • Full charge voltage: 4.2V
  • LEDs: Red - charging - green - charged.
  • Input interface: mini USB and Solder plates
  • Work temperature: - (10 to 85) degree C.
