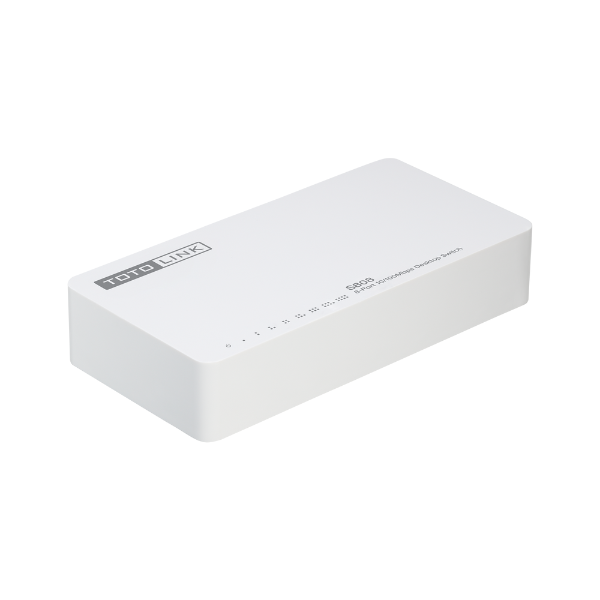

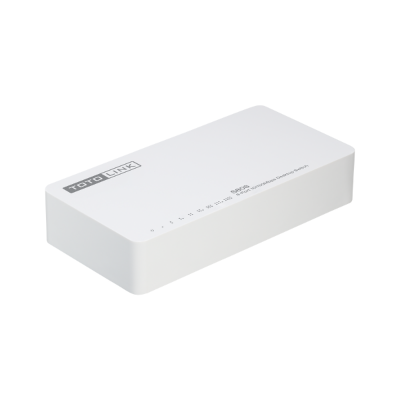

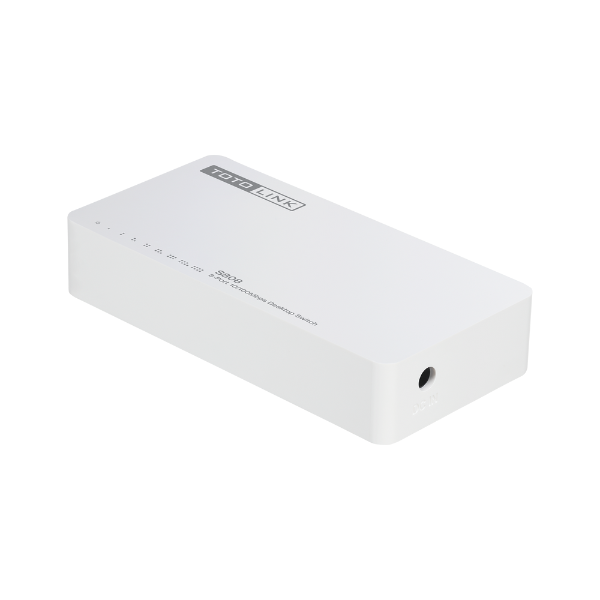

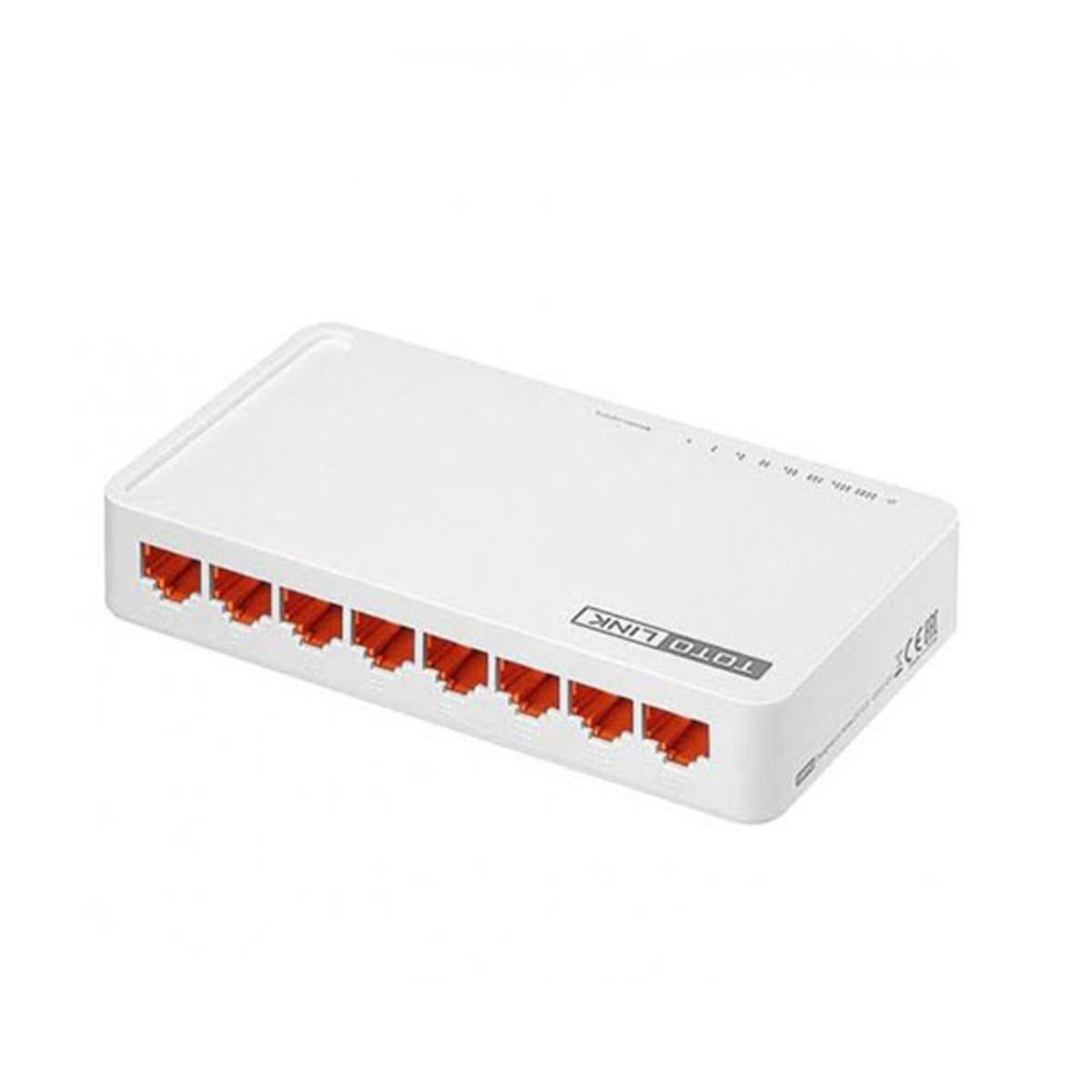

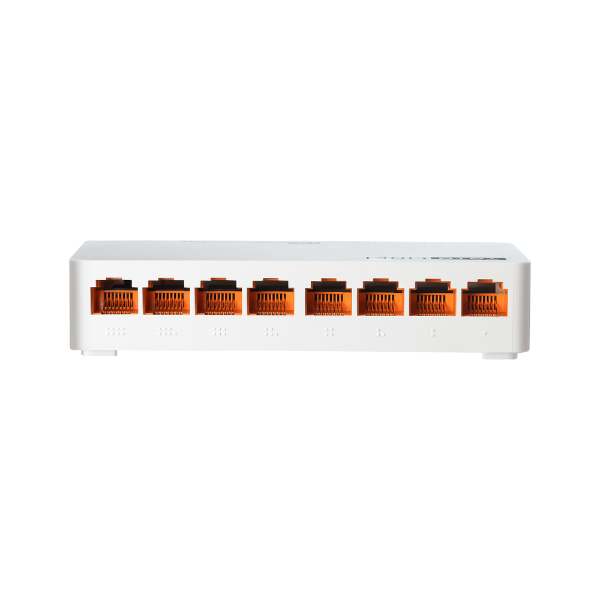

Toto-link S808 8 Port 10/100M Unmanaged Desktop Switch( White )


Tk 1,100

Totolink S808 8-Port 10/100Mbps Switch

  • SwitchStandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3abBackup Bandwidth1.6GbpsDIMENSIONS132mm x 75mm x 24mm (L x W x H)EnvironmentOperating Temperature: 0℃~40℃ (32°F~104°F)
  • Storage Temperature: -40~70℃ (-40°F~158°F)
  • Operating Humidity: 10%~90% non-condensingInterface8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)LEDPower, Link/Act (10M, 100M)MAC Address LearningAuto-learning, Auto updateMAC Address Table1KNetwork Media10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
  • EIA/TIA-568 100Ω STP (100m max.)
  • 100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
  • EIA/TIA-568 1100Ω STP (100m max.)Power Supply9V, 0.5A



Brand: Toto-link

Model: S808

Product Typ: Network Switch

Form Factor : Desktop

Manageability: Unmanaged

Body Color: White

Housing: Plastic

No of Ports: 8 Ports

Gigabit Port: 8

Interface(s): 8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

Connector Type: RJ-45

Switching Capacity: 1.6Gbps

MAC Address Table: 1K

Fast Ethernet Speed

IEEE 802.3,

IEEE 802.3u,

IEEE 802.3x

Dimensions: 125 x 62 x 27mm

Warranty: 1 Year

Made in: China






Totolink S808 8-Port 10/100Mbps Switch

  • SwitchStandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3abBackup Bandwidth1.6GbpsDIMENSIONS132mm x 75mm x 24mm (L x W x H)EnvironmentOperating Temperature: 0℃~40℃ (32°F~104°F)
  • Storage Temperature: -40~70℃ (-40°F~158°F)
  • Operating Humidity: 10%~90% non-condensingInterface8*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)LEDPower, Link/Act (10M, 100M)MAC Address LearningAuto-learning, Auto updateMAC Address Table1KNetwork Media10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
  • EIA/TIA-568 100Ω STP (100m max.)
  • 100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
  • EIA/TIA-568 1100Ω STP (100m max.)Power Supply9V, 0.5A

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
