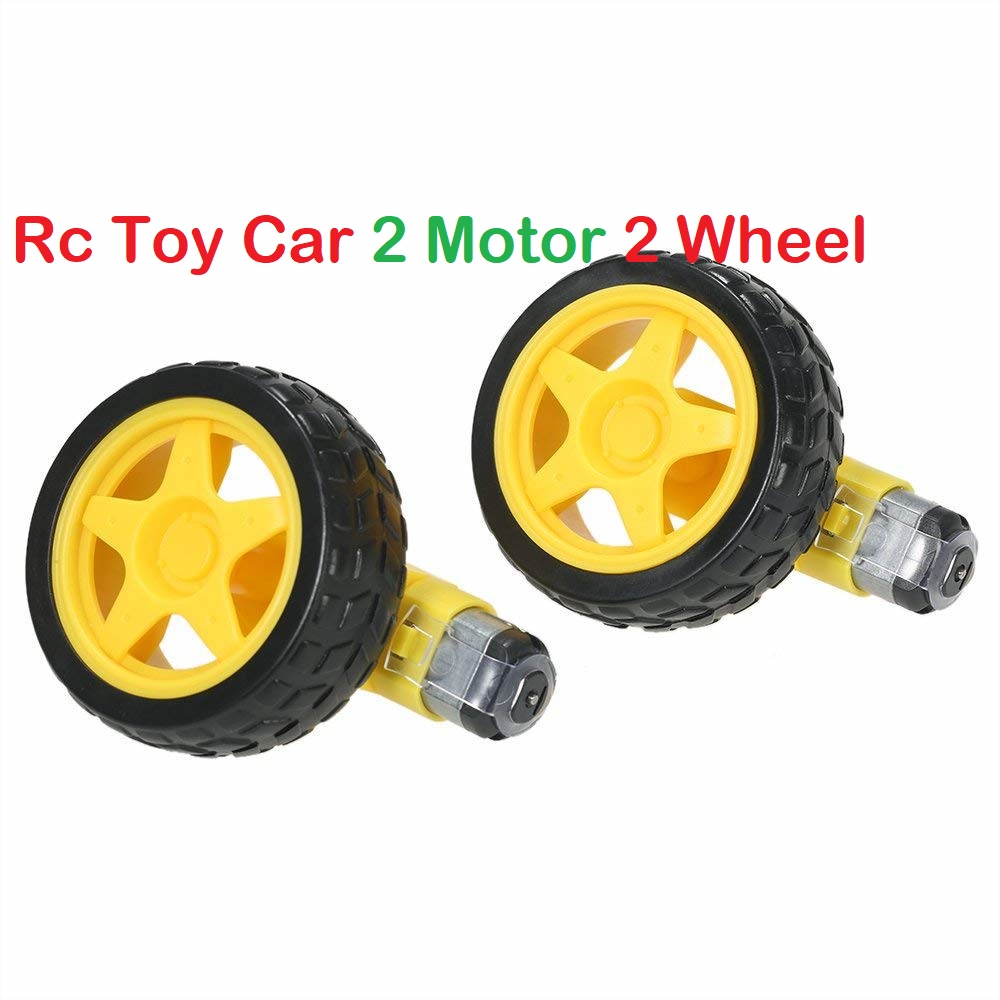

Description: 6V Gear Motor 130RPM Dual Shaft with Rc wheel

Dual shaft DC geared motor with Rc wheel which gives good torque and rpm at lower voltages. This motor can run at approximately 375 rpm when driven by a single Li-Ion cell. It is most suitable for light weight robot running on small voltage. Out of its two shafts one shaft can be connected to wheel, other can be connected to the position encoder.

Specifications:

• Name: TT motor and wheel
• Type: 1:120
• Features: Strong magnetic,Anti-interference
• Model: 1A120-1812L(Prefer Torque)
• Rated voltage: 3V/6V and 65mm wheel
• Current: ≤180mA/≤250mA
• Speed: 45±10%r/min 90±10%r/min
• Torque: 0.45±10%kgf.cm 0.85±10%kgf.cm

Applications:

• DIY Projects
• Battery-operated toys
• Disk drives Steel rollingmillsPaper
• Machines Medical equipment
• Radio-controlled aircraft
• Automobiles Drive systems Positioning
• Industrial and consumer actuators Winches Robotics Mixers
• Robotic projects

Features:

• Rated Voltage: 5.0V DC
• Working Voltage: 3.0V - 6.0V DC
• Current:(-150mA ,-200mA
• Speed:(-90rpm±10% ,-200rpm±10%
• Torque: max. 0.8kg/cm
• Reduction ratios:1:48
• Brush-type: Brush
• Body Size: 70mm x 37mm x 23mm wheel size 65mm
• Shaft Size: 8mm x 2mm diameter
• Weight: 17.5 grams

Package Include:

• 1x 6V DC Geared Motor 130RPM Dual Shaft and 65mm Rc wheel

• Rated Voltage: 5.0V DC
• Working Voltage: 3.0V - 6.0V DC
• Current:(-150mA ,-200mA
• Speed:(-90rpm±10% ,-200rpm±10%
• Torque: max. 0.8kg/cm
• Reduction ratios:1:48
• Brush-type: Brush
• Body Size: 70mm x 37mm x 23mm  wheel size 65mm
• Shaft Size: 8mm x 2mm diameter
• Weight: 17.5 grams
