Description

DC motor specification:

• Rated Voltage: 3-12 V DC
• Unloaded speed: 120 RPM
• Load current: 190 mA (250 mA MAX)
• maximum torque: 800 gf. Cm min.

Wheel specification:

• Width: 30mm
• Diameter: 66 mm(approx)
• Dimensions(L*W*H): 25.5*15.5*6.5 cm(approx)

Package includes:

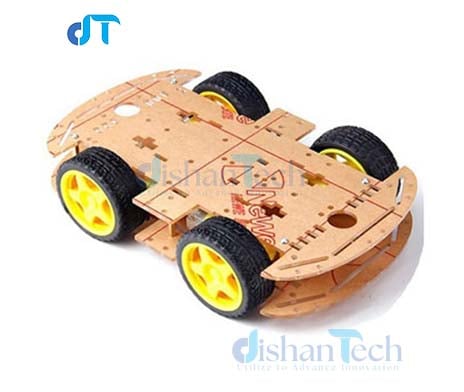

• Car chassis (acrylic material) *2
• DC gear motor (strong magnetic over EMC detection) *4
• Yellow wheel *4
• 20 line speed code plate (non-ordinary six lines 10 lines) *4
• Fasteners *8
• 3D assembly drawing *1
• Screw nut copper pillar *1 set
• Screw Driver (Flat + Star) (May not be included, depends on manufacturer)
