Features

Convenient to install and easy to use.

It can be used in homes, farms, factories, offices, laboratories, supermarkets, etc.

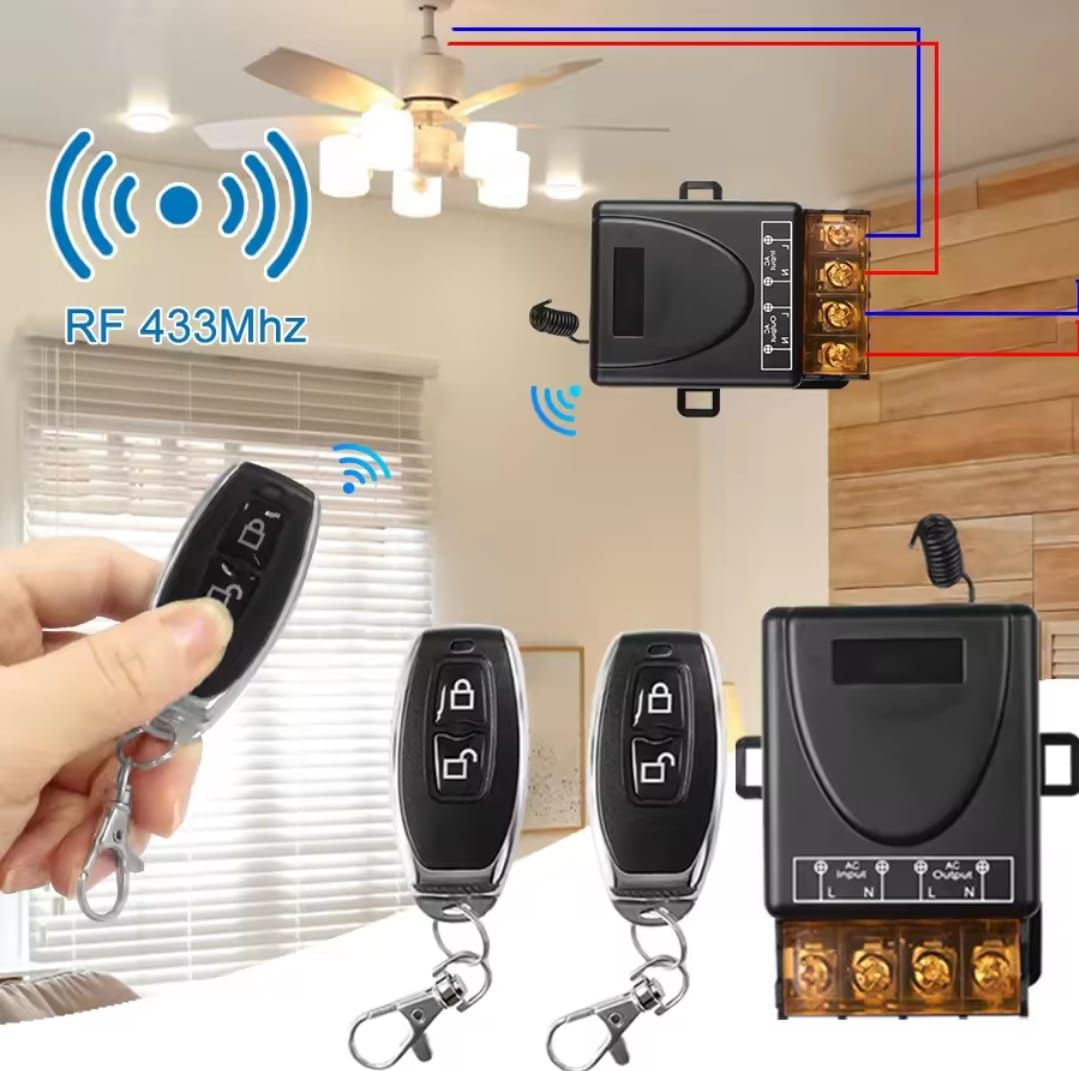

You can remotely operate any device connected to the relay receiver via the remote control.

It can be used on lights, pumps, wireless security alarms, fans, lamps, wireless door alarms, ventilation devices, monitors, printers, fountains, etc.The wireless signal can penetrate walls, floors, and doors; the maximum range is up to 328 feet without obstacles.

Stable performance and low power consumption, long lifespan.

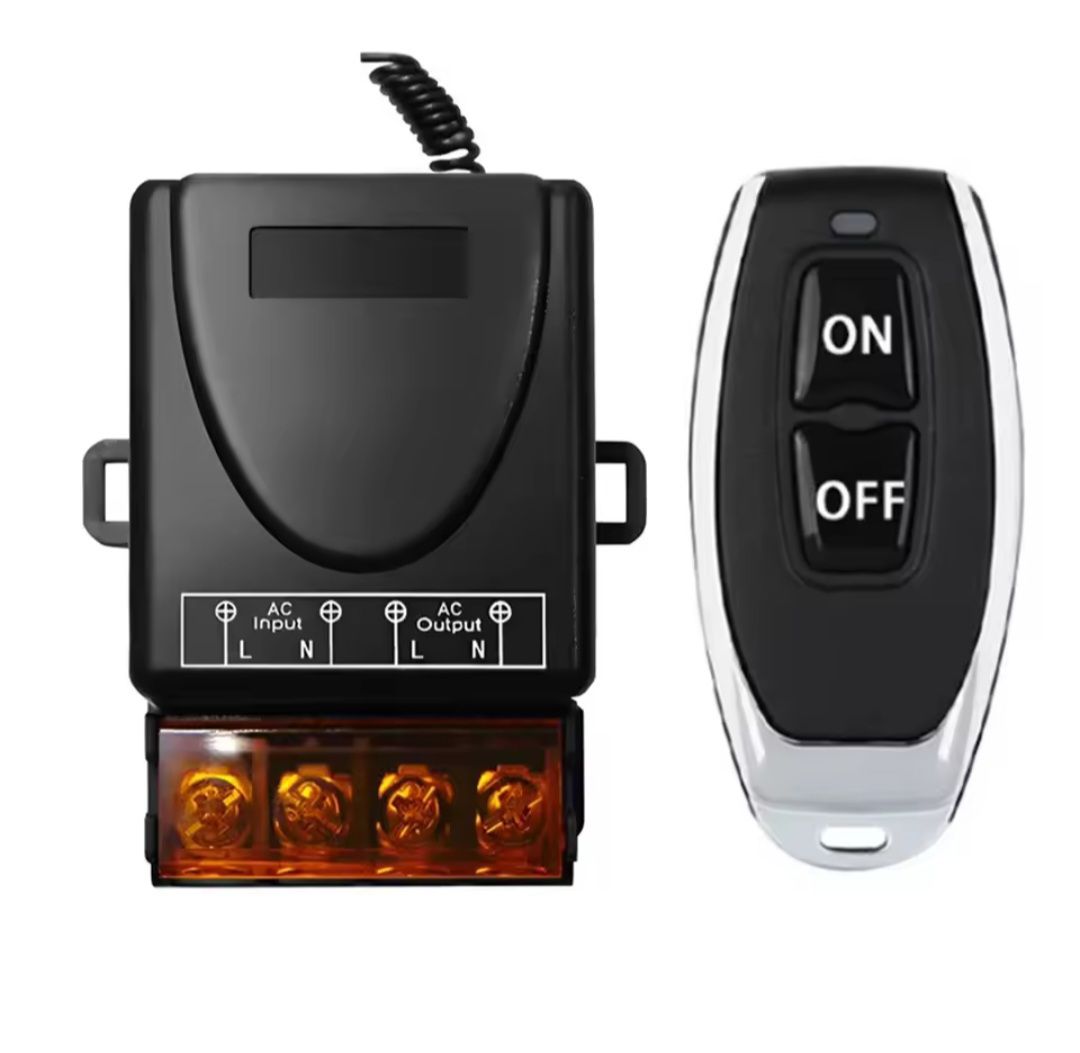

Remote Control

Operating Settings:

Working Mode:

Momentary: Relay: Press and hold -> On; Release -> Off.

Toggle: Relay: Press -> On; Press the same button again -> Off.

Latched: Relay: Press -> On; Press another button -> Off.

Delay Time:

Press the remote control button, the corresponding relay activates and continues operating until the timeout period expires.

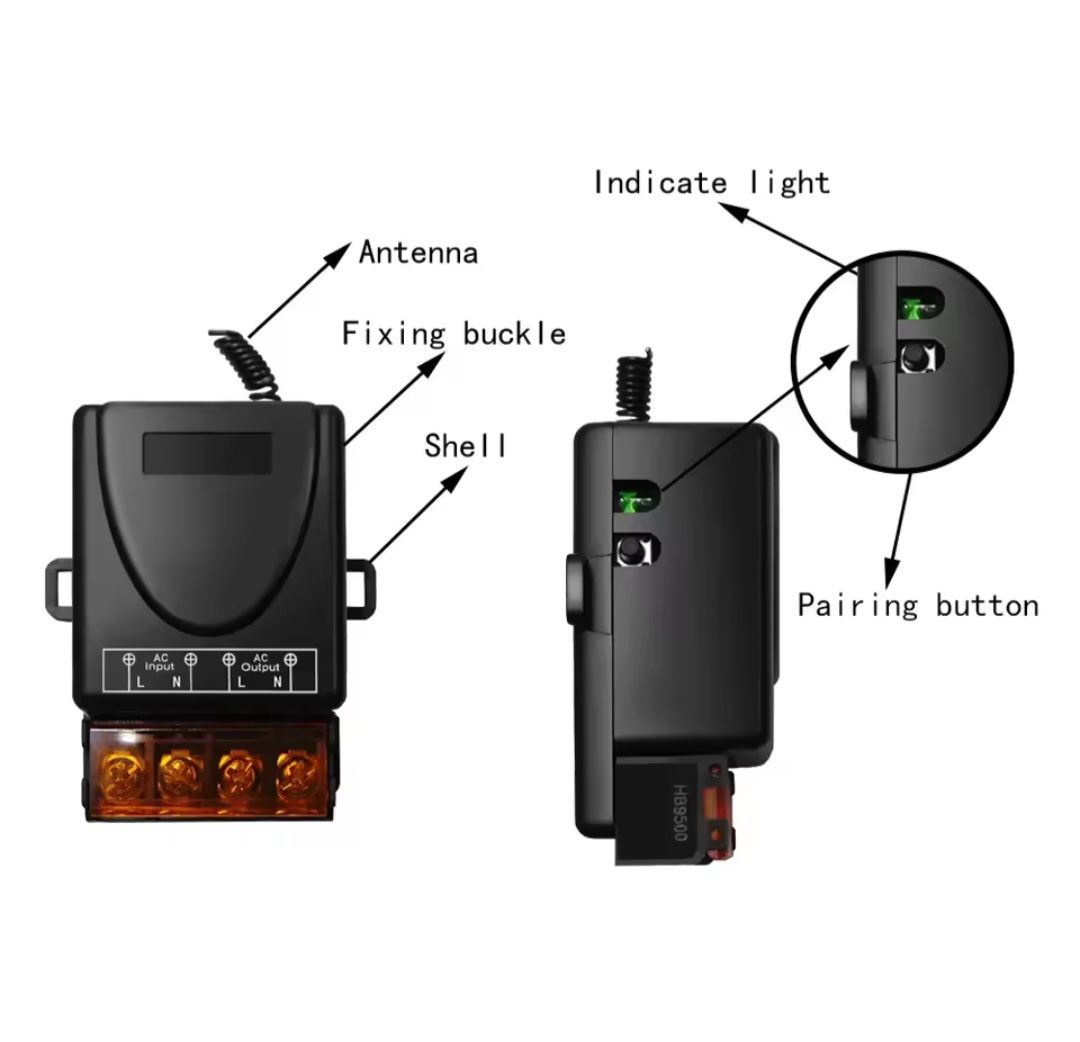

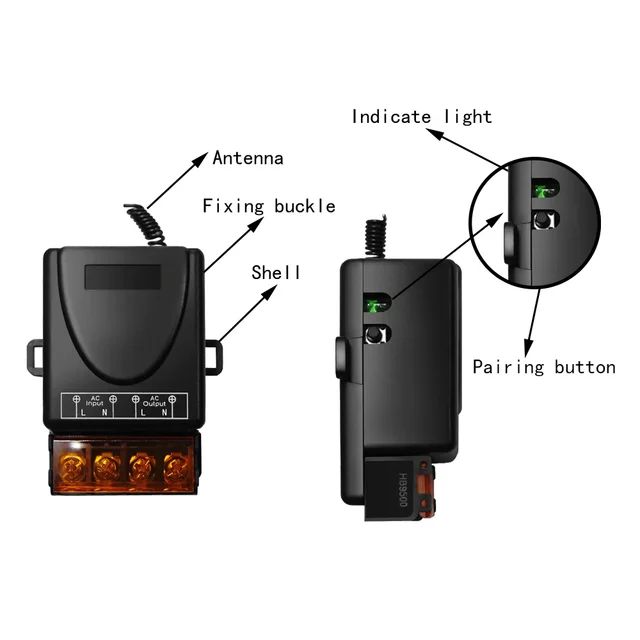

How to Reset?Press and hold the learning button for approximately 8 seconds until the indicator light flashes, and the learning is successful.

After the reset, all transmitters will no longer function and will need to be relearned.

How to set the locked mode?

Press the learning button 3 times, the LED indicator flashes 3 times, then press button A. After 3 seconds, press button B, the LED indicator flashes 3 times, and the learning is successful.

Set the locked mode as the default; if you want to set another mode, please refer to the user manual for reference.About the Receiver

Operating Voltage: AC 72V-220V

Reception Range: 328 feet (open space)

Operating Mode: Momentary/Toggle/Latched/Delayed

RF Frequency: 433MHz

DC Coding Type: Learning Code

RF Channel: One

Transmitter Compatibility: Maximum 26

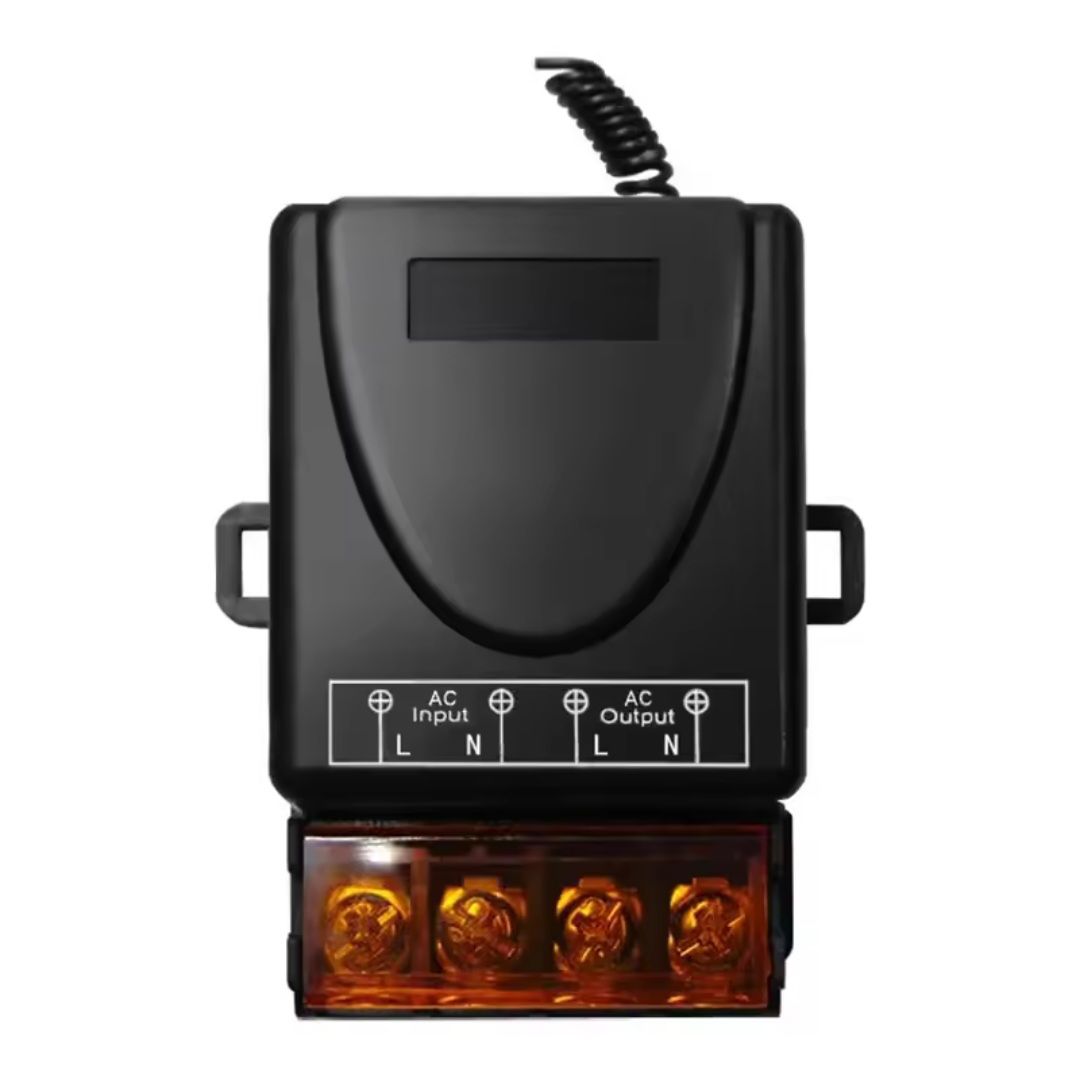

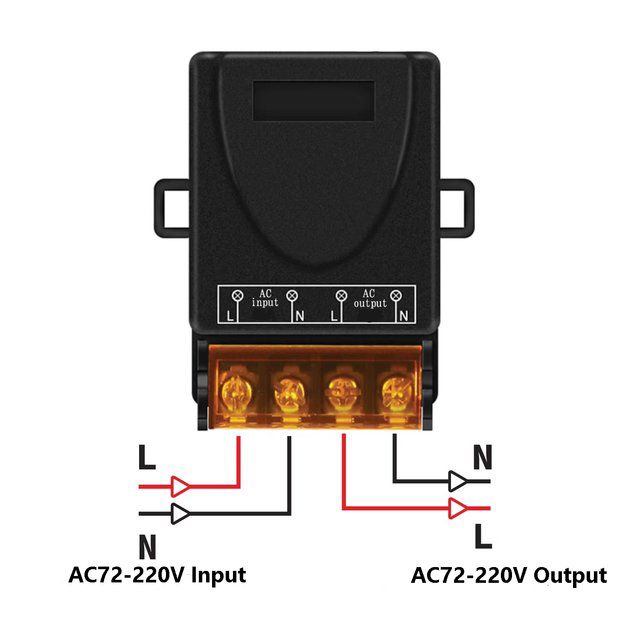

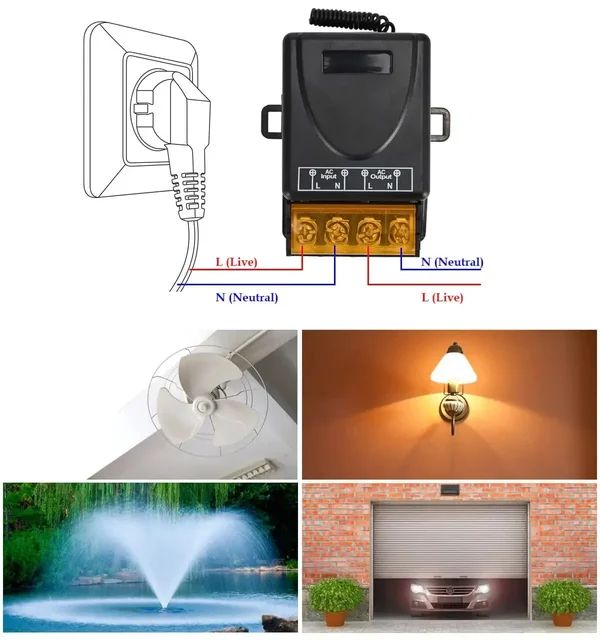

Input Terminals: Live (L) and Neutral (N)

Output Terminals: Live (L) and Neutral (N)

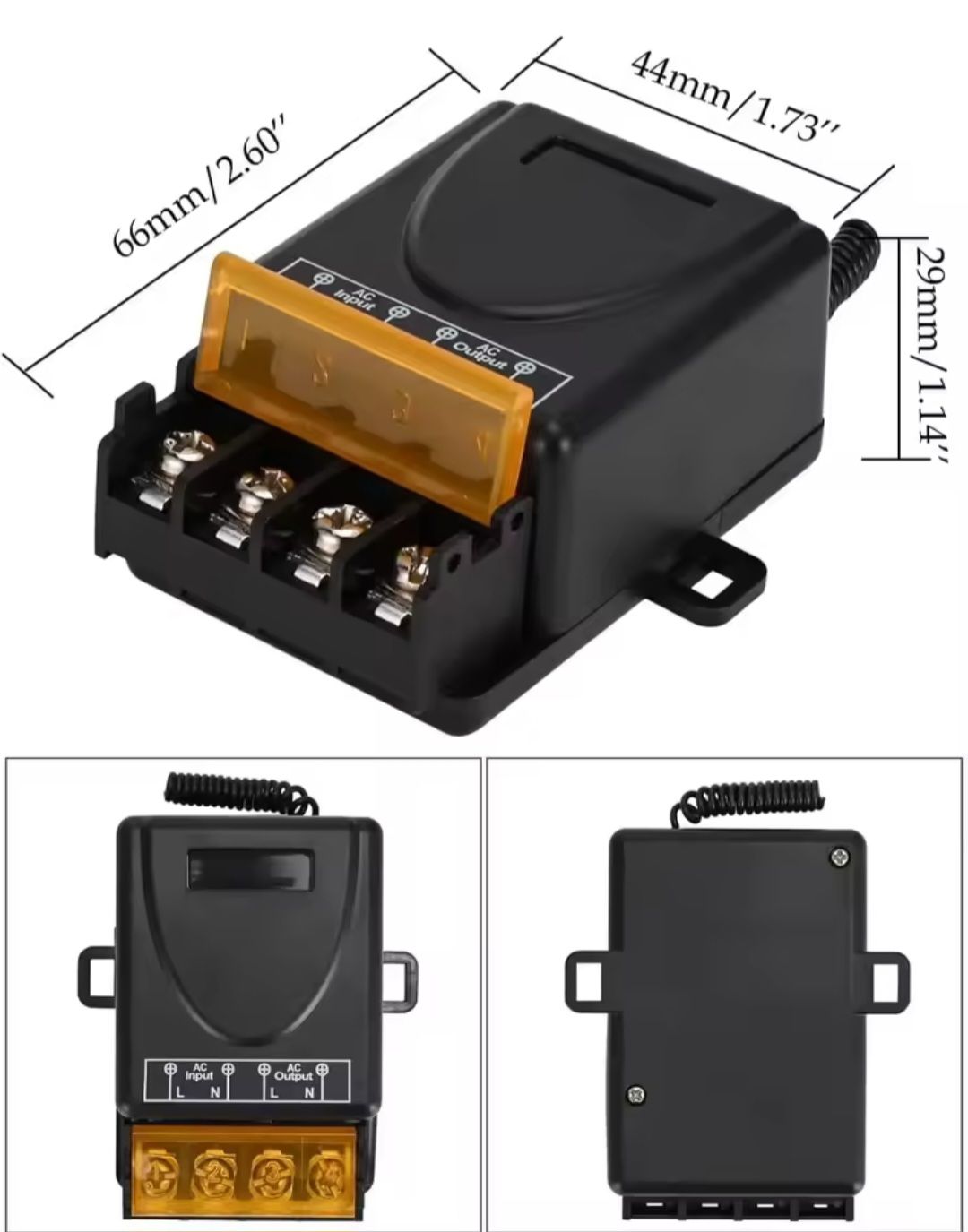

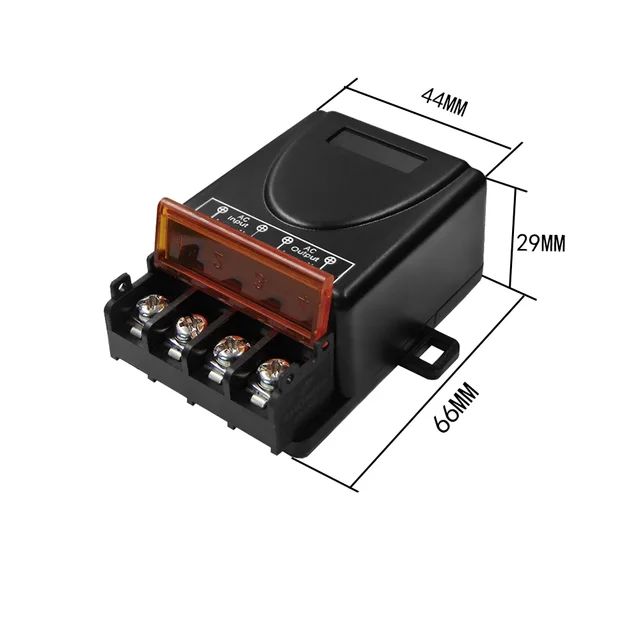

Case Construction: ABS Plastic
