Description

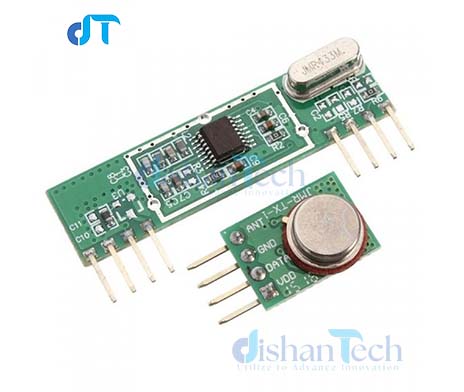

RF Transmitter Receiver Pair 433 MHz _RXB6

RF Transmitter Receiver Pair 433 MHz _RXB6

Transmitter Specs:

• Transmitter: JMR-TX1
• Operating voltage: 3-12V
• Operating frequency:433MHZ
• Transmission distance:300-500m
• Operating temperature :-20℃~60℃
• Dimensions:11*16*5.5mm
• Input signal :TTL level
• Modulation system :ASK
• modulate rate:3KB/S
• frequency stability:±75KHZ
• Transmitted Power：≥10mw
• Pins :4

Receiver Specs:

• Receiver:RXB6
• Working voltage: 5.0VDC +0.5V
• Working current: ≤2.5mA (5.0VDC)
• Working principle: superheterodyne
• Working method: OOK/ASK
• Operating frequency: 433MHz
