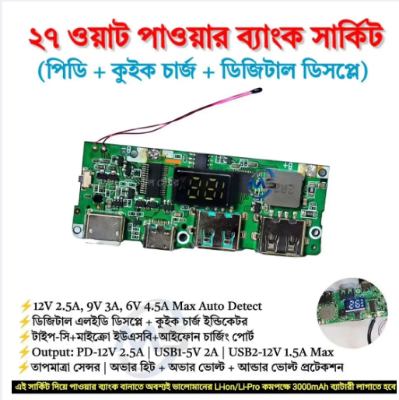

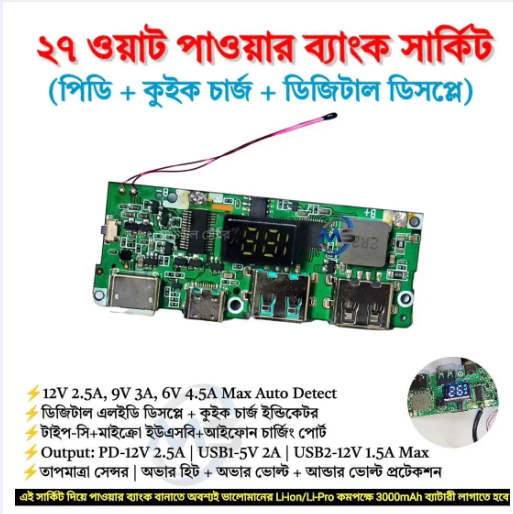

Quick Charge PD3.1 USB 3.1 Gen-1 27W Digital Power Bank Circuit 3 in 1 Charging Input Output Port LED Display - Green

• Input Port: Type-C / PD 3.1 + Micro USB and iPhone
• Battery charging current: 12V 2A at PD 5V 2A on Micro USB | 6V 3A max on Lightning port
• Output Port: Type-C PD 3.1 + USB-3.1 Gen-1 + USB-2
• Digital display 27 watt power bank circuit
• Output Power: 12V 2.5A, 9V 3A, 6V 4.5A Max Auto Detect
• Charging output: PD-12V 2.5A | USB1-5V 2A | USB2-12V 1.5A Max
• Output is available in battery charging condition
• The output voltage/current will be more or less according to the charging capacity of the mobile
• Battery Capacity: 50000mAh Maximum
• Digital LED display + quick charge indicator
• Temperature sensor Over heat + over volt + under volt protection
• Usage Guidelines:: This quick charge circuit works well with Li-Pro batteries. The battery input of all fast charge or quick charge circuits is provided with Li-Pro batteries
• Because the fully charged voltage of Li-Pro battery is 4.35 volts whereas the fully charged voltage of Li-ion battery is 4.2 volts.
• For this reason, I say to those who will make it with Li-ion battery, if the battery is less than 4.1 volts, this circuit will not output, so it must be above 4.1 volts.
• And since it is a fast charging circuit, it will not be difficult to get a quick charge if you input a battery of at least 3000 milliampere.
• If you don't get the output with the old mobile or power bank used battery, then install a good quality battery, then you won't have to worry about returns.

Specifications of Quick Charge PD3.1 USB 3.1 Gen-1 27W Digital Power Bank Circuit 3 in 1 Charging Input Output Port LED Display

• Brand

  No Brand

• SKU

  191778392_BD-1452220008

What’s in the box

1pcs QC PB Circuit
