Function introduction

When the load current is less than 50mA continuously, the output will be turned off.

It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.

When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.

When the battery voltage drops below 4.1V, the charging cycle starts again.

When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.

The usb-a base welding position is provided on the back of the product, which can be installed manually.

It supports discharging while charging.

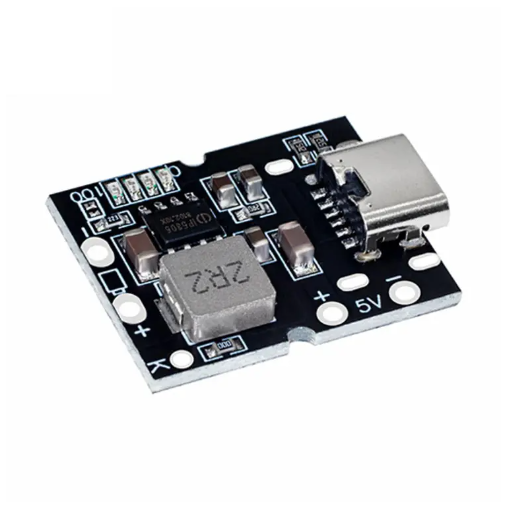

Specifications of Power Bank Circuit Module Type-C USB 5V 2A Boost Converter Step-Up Power Module

• Brand

  No Brand

• SKU

  321411058_BD-1492505554

What’s in the box

1x Type-C USB 5V 2A Boost Module
