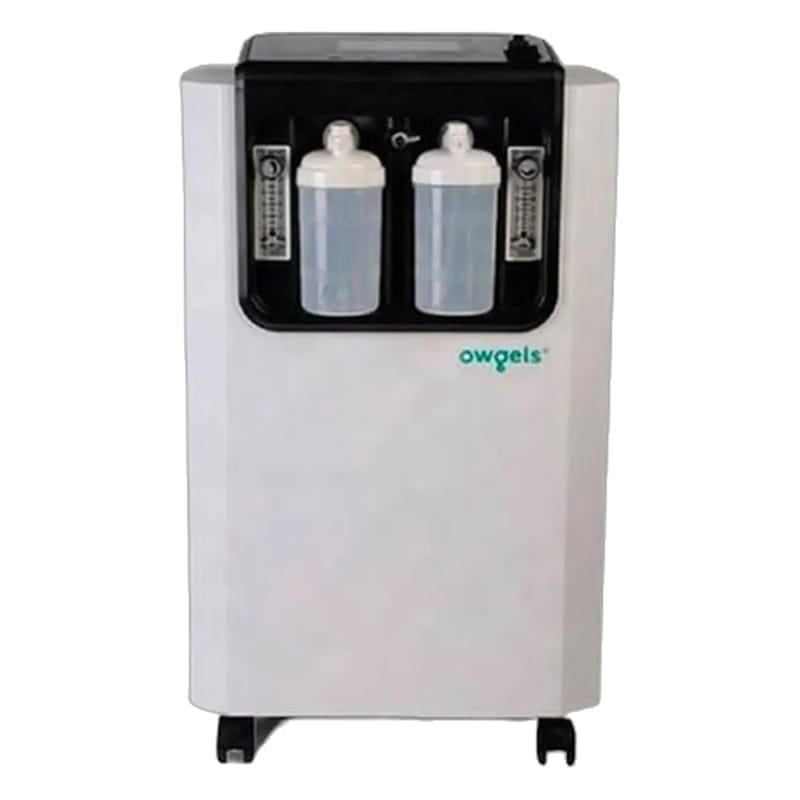

Owgels 10L Medical Oxygen Concentrator (Dual Flow)

The Owgels 10L Oxygen Concentrator is a heavy-duty, medical-grade device designed for both clinical and home use. Powered by German technology, it is capable of delivering high-purity oxygen continuously. One of its standout features is the Dual Flow system, which allows two patients to receive oxygen therapy simultaneously without compromising purity.

Key Features

• Dual Flow Functionality: Equipped with two separate flow meters (0–5L and 0–10L). It can support two patients at 5LPM each or one patient at 10LPM.
• High Oxygen Purity: Consistently delivers oxygen at 93%±3% purity, even at the maximum flow rate of 10 liters per minute.
• Built-in Nebulizer: Features a dedicated atomization port, allowing patients to undergo respiratory nebulization therapy while receiving oxygen.
• Advanced Sieve Technology: Utilizes high-quality French molecular sieves and a German-engineered compressor for stable and long-lasting performance.
• Intelligent Safety Alarms: Includes audiovisual alerts for power failure, low oxygen concentration (<82%), high temperature, and pressure fluctuations.
• User-Friendly Interface: Large LCD screen displays cumulative run-time and current timer settings. It also includes a remote control for easy operation from a distance.

Technical Specifications

Feature

Specification

Flow Rate

1 – 10 Liters per minute (Adjustable)

Oxygen Concentration

93%±3%

Output Pressure

0.05 MPa

Sound Level

≤60 dB(A) (Low noise for night use)

Power Consumption

750 Watts

Weight

29.5 KG (Includes 4 wheels for easy mobility)

Dimensions

390mm x 350mm x 720mm

Export to Sheets

Standard Accessories Included

• 2 x Humidifier Bottles
• 2 x Nasal Cannulas (Adult/Child)
• 1 x Nebulizer Kit
• 2 x Internal Air Filters (Hepta filters)
• 1 x Remote Control
• User Manual & Warranty Card

Operating Guidelines

1. Placement: Keep the unit at least 1–2 feet away from walls and furniture to ensure proper air intake and cooling.
2. Humidifier Care: Use only distilled or purified water in the humidifier bottles to prevent mineral buildup in the tubing.
3. Maintenance: Clean the external air filter once a week with water and a mild detergent. Ensure it is completely dry before re-inserting.
4. Voltage Safety: It is recommended to use a voltage stabilizer with the unit to protect the high-power compressor from electrical surges.

Professional Note: This 10L model is particularly effective for patients with high-flow requirements (COPD, post-COVID recovery, or ILD) and is a cost-effective alternative to frequent oxygen cylinder refills.
