Descriptions: Mosquito Killer Rechargeable Bat Circuit P.C.B DC 3.6-5V High Voltage Generator 5000-10000V

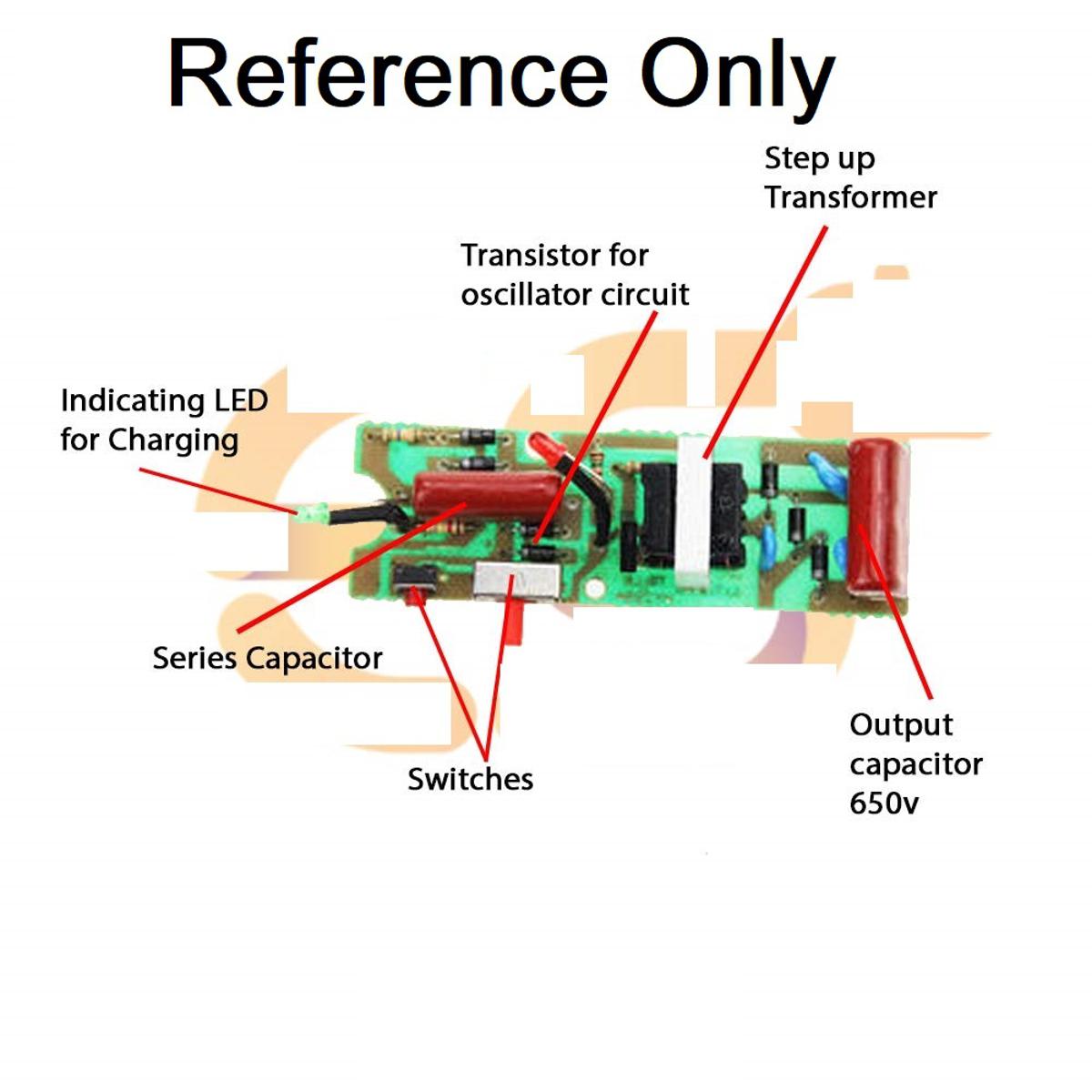

High Voltage Generator 5000-10000 volts. This consist an electric fence in the bat portion which has 5000-10,000 volts passing through them. This is not only mosquito repellent, it’s insect zapper. When a mosquito gets in contact the high voltage burns it. The inner circuit consists of battery, a charging unit, and a HV inverter circuit, which I’m going to describe here. It Can Use As mosquito killing Bat circuit

Specifications:

• 100% Brand New and High Quality
• Use as Mosquito Killer Bat circuit Replacement
• A transformer you can call also pulse transformer is used to step up the oscillating frequency and voltage.
• You already know that battery has DC source and we cannot step up DC. So an Oscillator circuit is used to convert DC to Pulsating AC. The Oscillator circuit consists of a Transistor, capacitors, and resistors.
• Best for your DIY Projects
• Dimensions: 80x27x18mm

Features :

• High Voltage Generator 5000-10000 volts
• High Voltage Generator 5000-10000 volts
• Use as Mosquito Killer Bat circuit Replacement
• Inbuilt Battery Charger
• It can Run 4V Small SLA battery
• DC Operational Voltage 3.6V to 5.0 V
• Best for your DIY Projects

Product Include:

• 1x Mosquito Killer Bat Circuit P.C.B DC 3.6-5V High Voltage Generator 5000-10000V

• 100% Brand New and High Quality
• Use as Mosquito Killer Bat circuit Replacement
• A transformer you can call also pulse transformer is used to step up the oscillating frequency and voltage.
• You already know that battery has DC source and we cannot step up DC. So an Oscillator circuit is used to convert DC to Pulsating AC. The Oscillator circuit consists of a Transistor, capacitors, and resistors.
• Best for your DIY Projects
• Dimensions: 80x27x18mm
