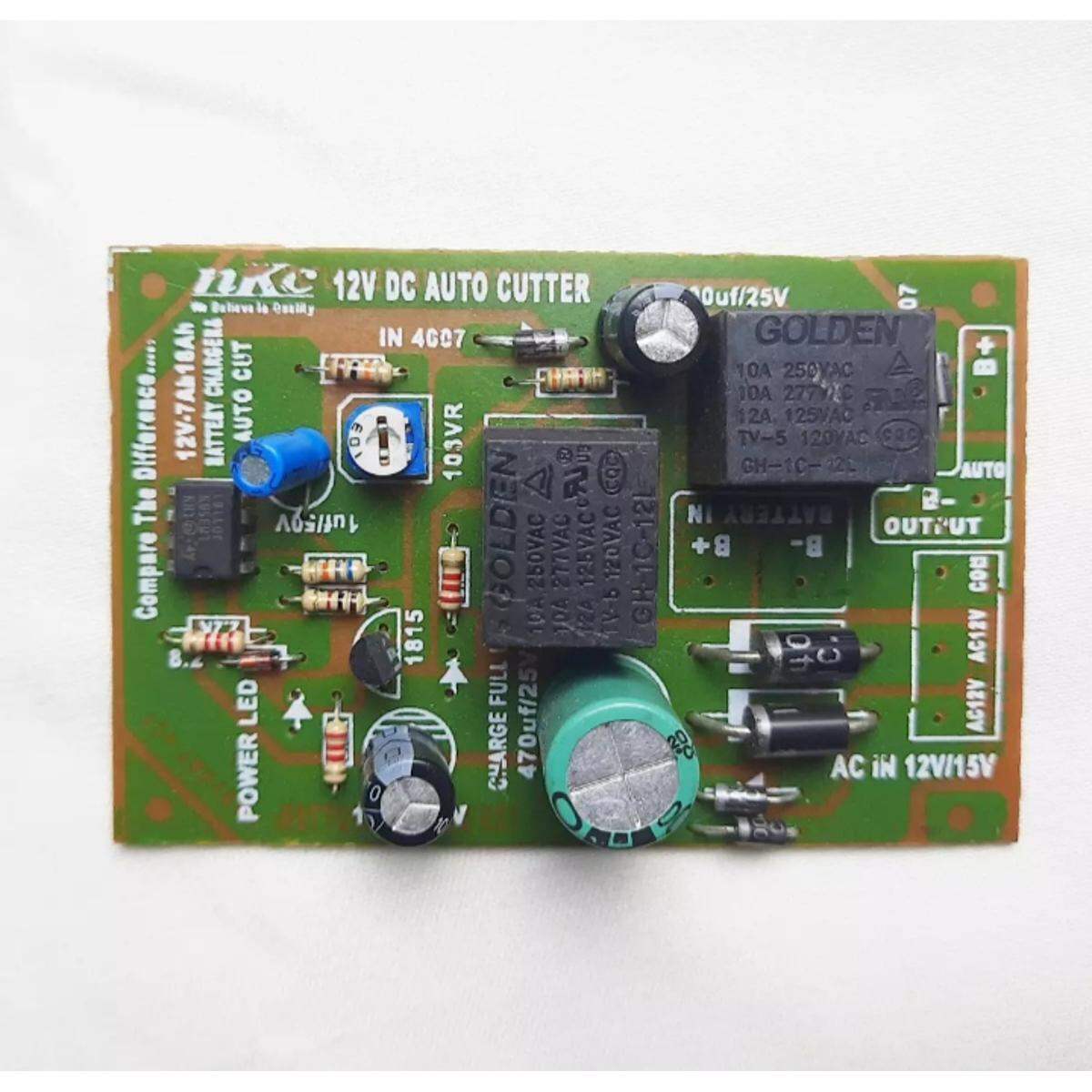

Description: Auto Cut Circuit DC 12V Double Relay For DC 12v Battery Protection Circuit

Some off charger maybe can’t stop charging when the battery is fully charged. Here is a simple circuit for the charger when the battery is fully charged, the charging automatically stopping,

Features:

Battery Charger Circuit Suitable For 12V Battery.

High output current of about 5 Amp Maximum.

Automatic charging voltage and current according to the battery status.

Battery Type Support Lead Acid, Gel Battery, Tubular Battery, Lithium Ion, Lifepo4, etc.

Charge Battery 7AH To 18AH

Battery Cut-Off Adjustable.

Very Low Current Consumption Only 1.5ma.

Short circuit protection.

Charging method – constant voltage and constant current CONTROL

Package Include:

1 x Auto Cut Circuit DC 12V Double Relay For DC 12v Battery Protection Circuit
