Mishuk PMSM Motor & Controller set 2000 watt

Decent Mishuk PMSM Motor & Controller Set – 2000W 48V

Item Code: 849001

Key Features:

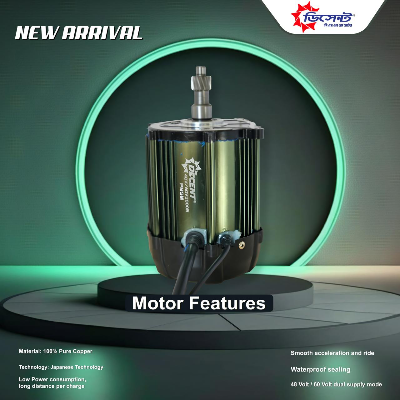

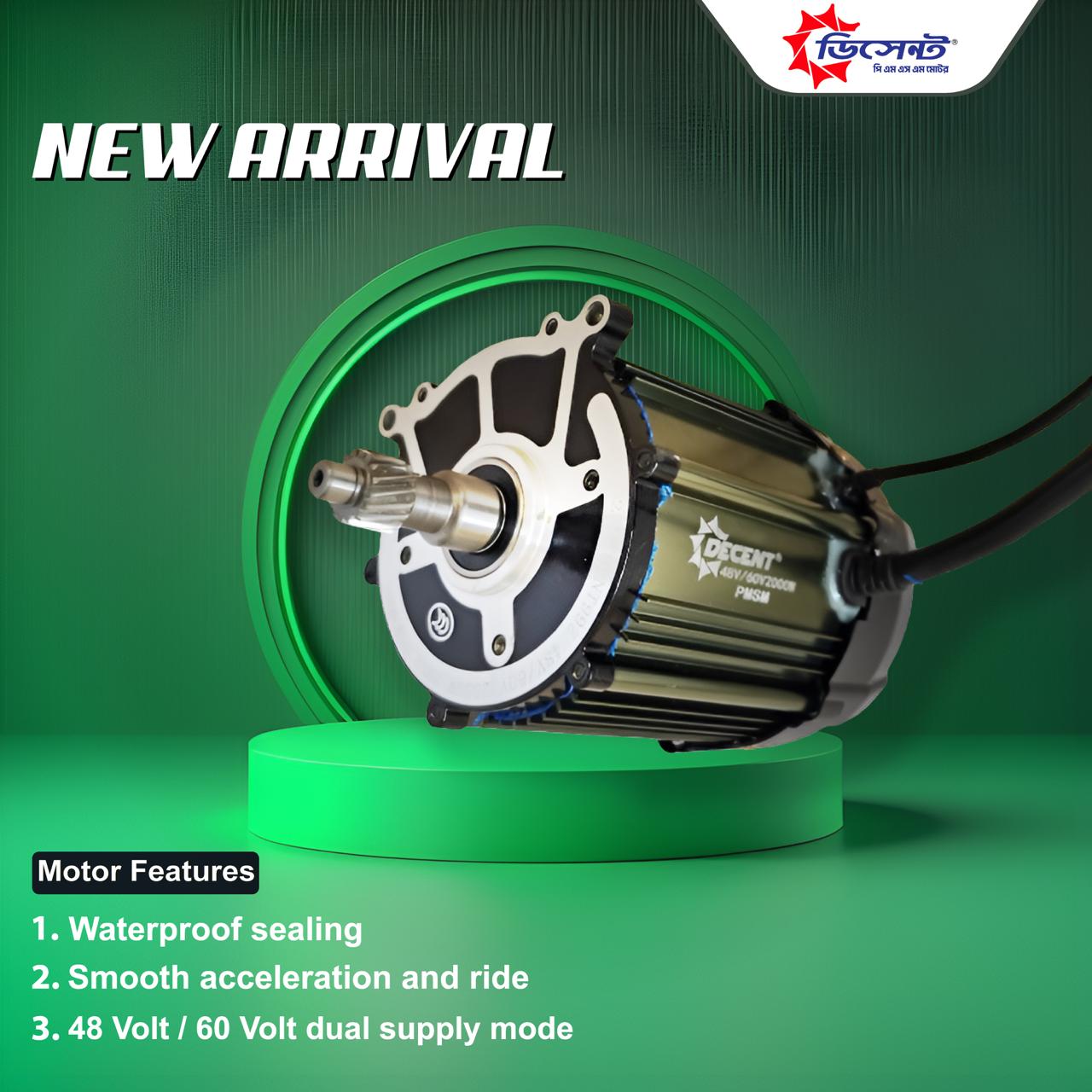

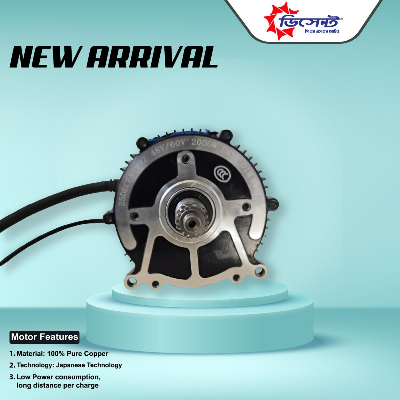

Motor (2000W, 48V):

Sine Wave Technology: Smooth, quiet, and premium ride feel with high efficiency.

High Torque at Low Speed: Strong pulling power even on inclines or heavy loads.

Temperature Control System: Protects motor from overheating, prevents burn damage, and ensures consistent performance on long trips.

Premium High-Grade Magnets: High efficiency and heavy-load performance while keeping heat low.

Durable & Waterproof Design: Reliable operation in rain and harsh conditions.

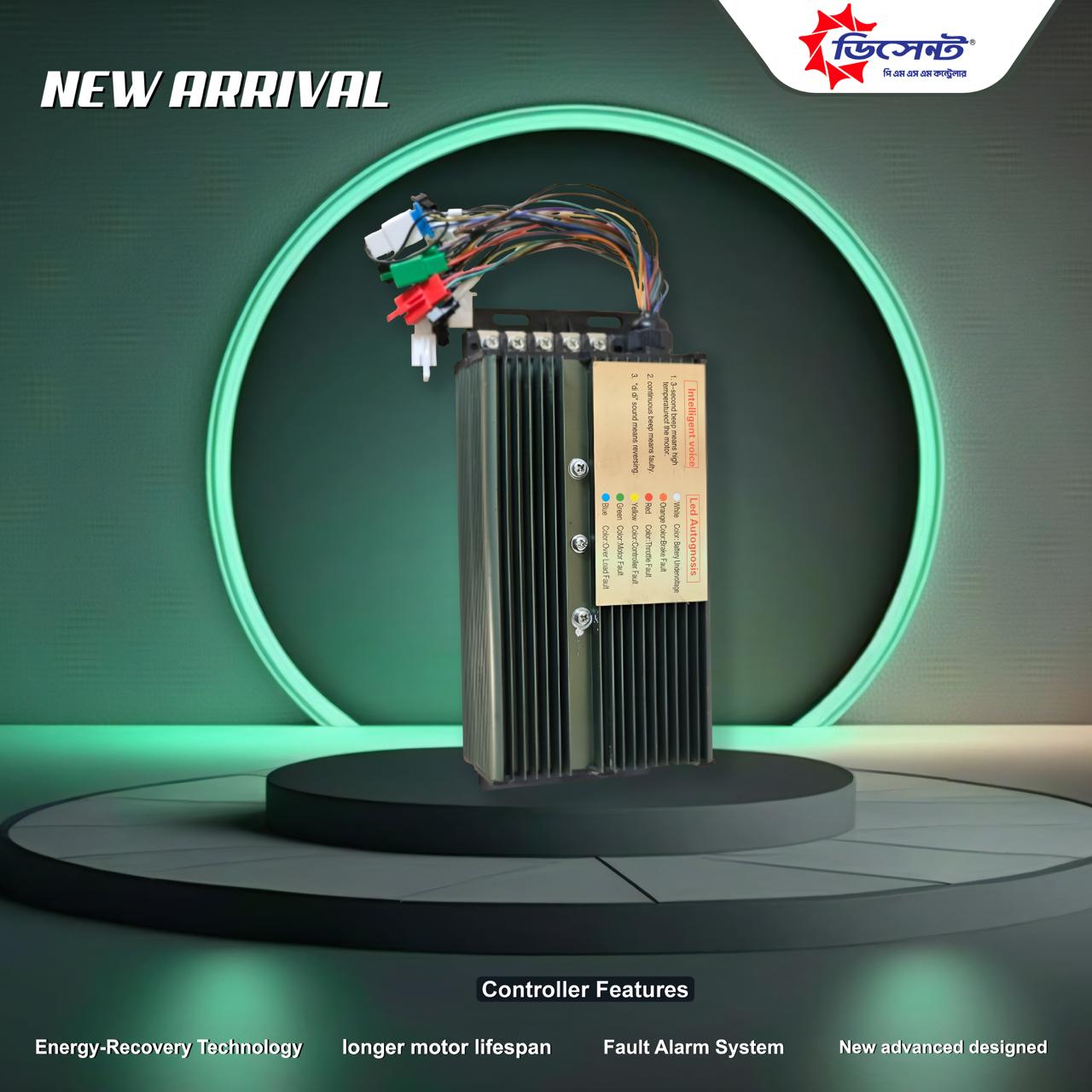

Controller (2000W, 48V):

Advanced Fault Alarm System: Alerts for abnormal conditions to protect motor and battery.

New Advanced Design: Optimized for smooth, stable, and efficient performance.

Energy Saving Technology: Saves up to 15% battery for longer rides.

Efficient Heat Management: Less heat, more power, and improved motor life.

Dual Voltage Compatible: Works seamlessly with 48V systems.

Product Description:

The Decent Mishuk PMSM 2000W 48V Motor & Controller Set is designed for high performance, reliability, and efficiency in electric rickshaws, easy bikes, and other EV systems.

With sine wave technology, the motor delivers quiet, smooth acceleration, high torque even at low speeds, and efficient energy usage. Its temperature control system prevents overheating, protects against burn damage, and ensures consistent power on long trips.

The premium-grade magnets provide strong high-load performance, while the waterproof metal casing ensures dependable operation in all weather conditions. Paired with the advanced controller, the set offers fault alarm protection, battery energy saving, and efficient heat management, making it a complete, ready-to-install EV power solution.

Technical Specifications:
Specification    Details
Rated Power    2000 W
Operating Voltage    48V / 60V Dual Mode
Control Type    Pure Sine Wave
Temperature Control    Yes – Protects Motor, Prevents Burn Damage
Magnet Grade    Premium High-Grade (38H)
Magnet Size    50 mm x 4
Torque    High Torque / Low-Speed Efficiency
Protection    Waterproof, Overheat, Overload
Material    Metal Casing (Motor) / Aluminum Casing (Controller)
Application    E-Rickshaw / Easybike / EV System
Color    Titan Gold
Unit    Piece
Weight    Motor: 5.5 KG approx. / Controller: 3.8 KG approx.
Motor Shaft Length    243 mm
Motor Body Length    176 mm
Motor Side Width    143 mm
Controller Length    301 mm
Controller Height    76.3 mm
Controller Side Width    126.6 mm
Power Cable Length    118 cm, Outer Diameter 5 mm
