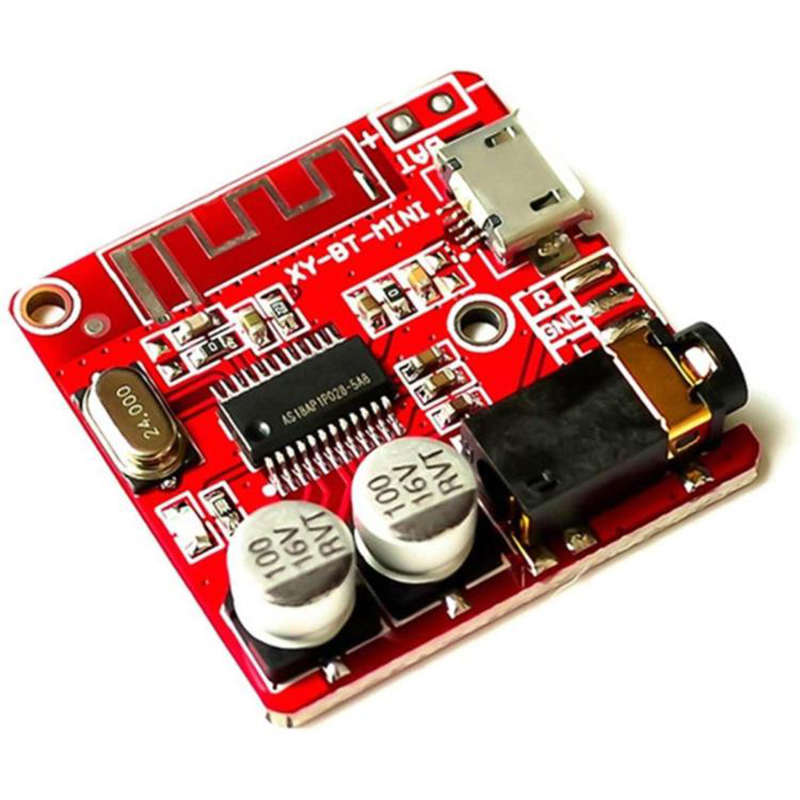

Picture of Mini MP3 Bluetooth Lossless Decoder Board Car Speaker Amplifier board Bluetooth 4.1 XY-BT-Mini Circuit Board Module

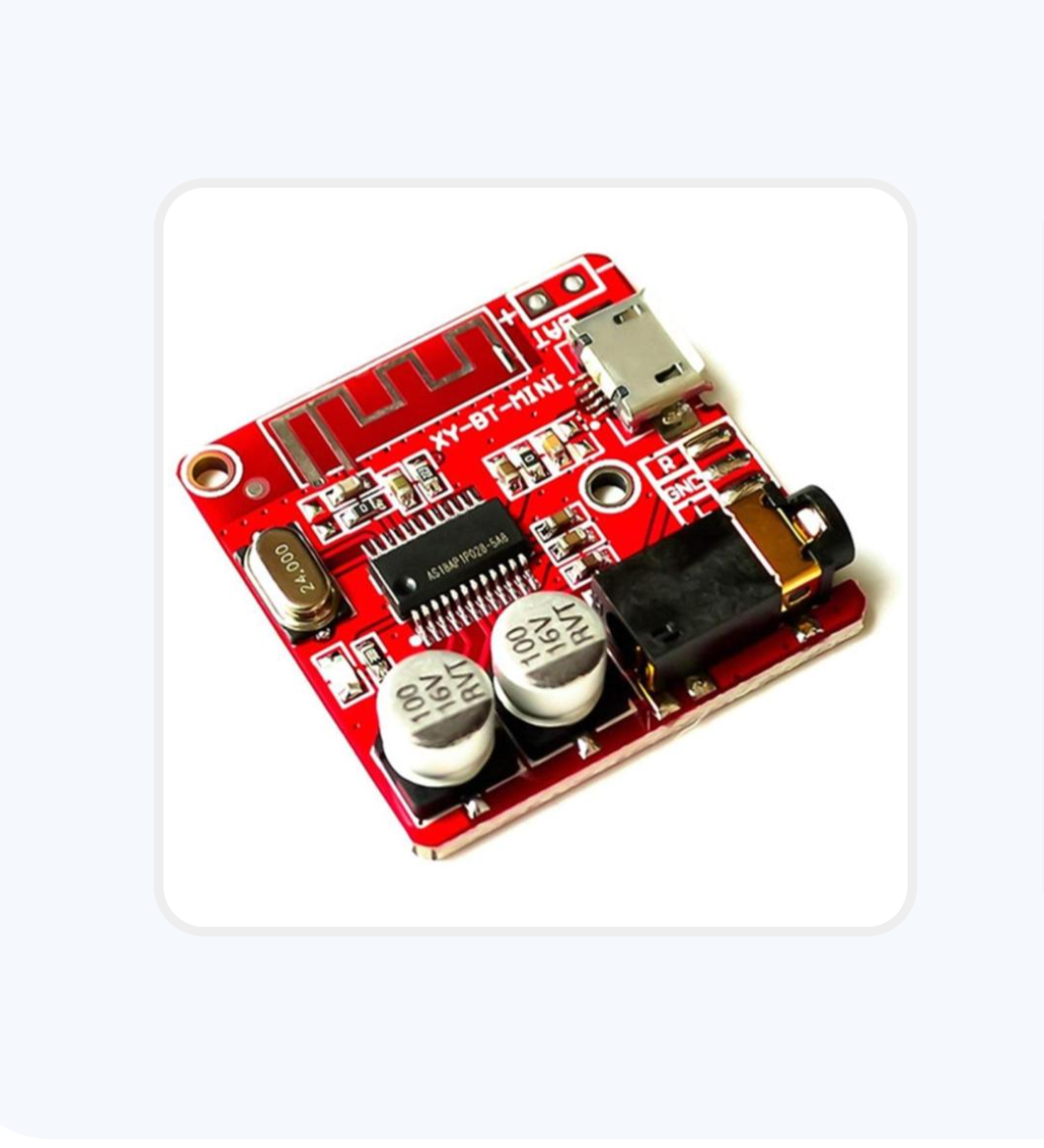

Picture of Mini MP3 Bluetooth Lossless Decoder Board Car Speaker Amplifier board Bluetooth 4.1 XY-BT-Mini Circuit Board Module

Mini MP3 Bluetooth Lossless Decoder Board Car Speaker Amplifier board Bluetooth 4.1 XY-BT-Mini Circuit Board Module

Category: Speaker
SKU: GRIC821212
Seller: GREEN ELECTRONICS.
Tk 200
0 review(s)

Call For Order : 09613-800800

Bluetooth 4.1 support, support for automatic connection, WAV+APE+FLAC+MP3 lossless decoding, stereo output.

1.Parameter characteristics

Power Supply3.7-5V
SNR90dB
THD+N-70dB
Crosstalk-86dB
DNR91dB
Support ProfileA2DP/AVCTP/AVDTP/AVRCP/HFP
LOS>15m

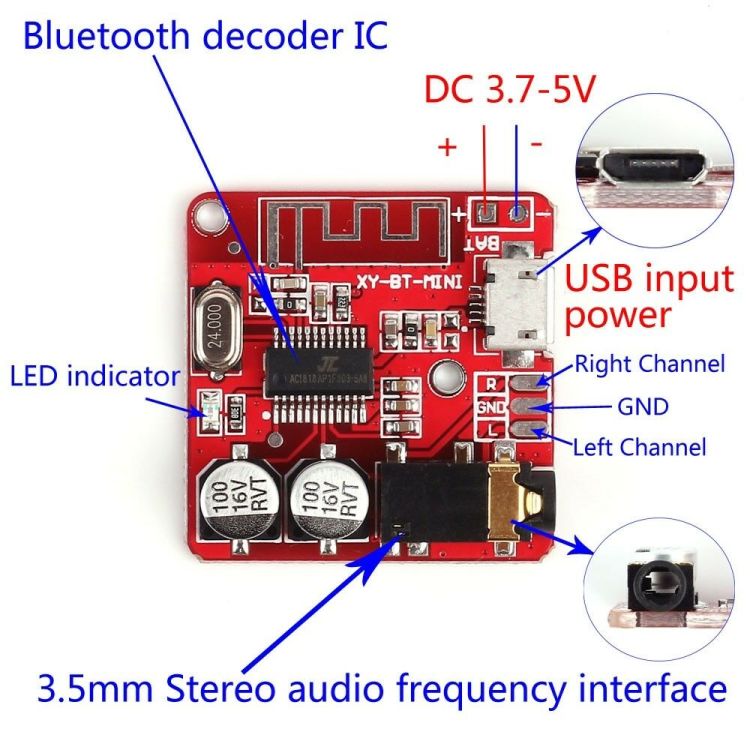

2.Interface details

USB poweredUniversal Micro USB 5V power supply
3.7-5V Supply PadExternal 3.7-5V lithium battery power conversion
LED indicatorBluetooth mode long blue light
3.5mm stereo audio interfaceStandard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices

Instructions:

After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English“The bluetooth device is ready to pair”is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the“XY_BT”searched by the mobile phone Bluetooth is the device name of the decoding board. , Click on the connection, the decoder board prompts "The bluetooth device is connected successfully", indicating that the decoder board and the mobile phone are connected successfully, you can play music. As shown below
