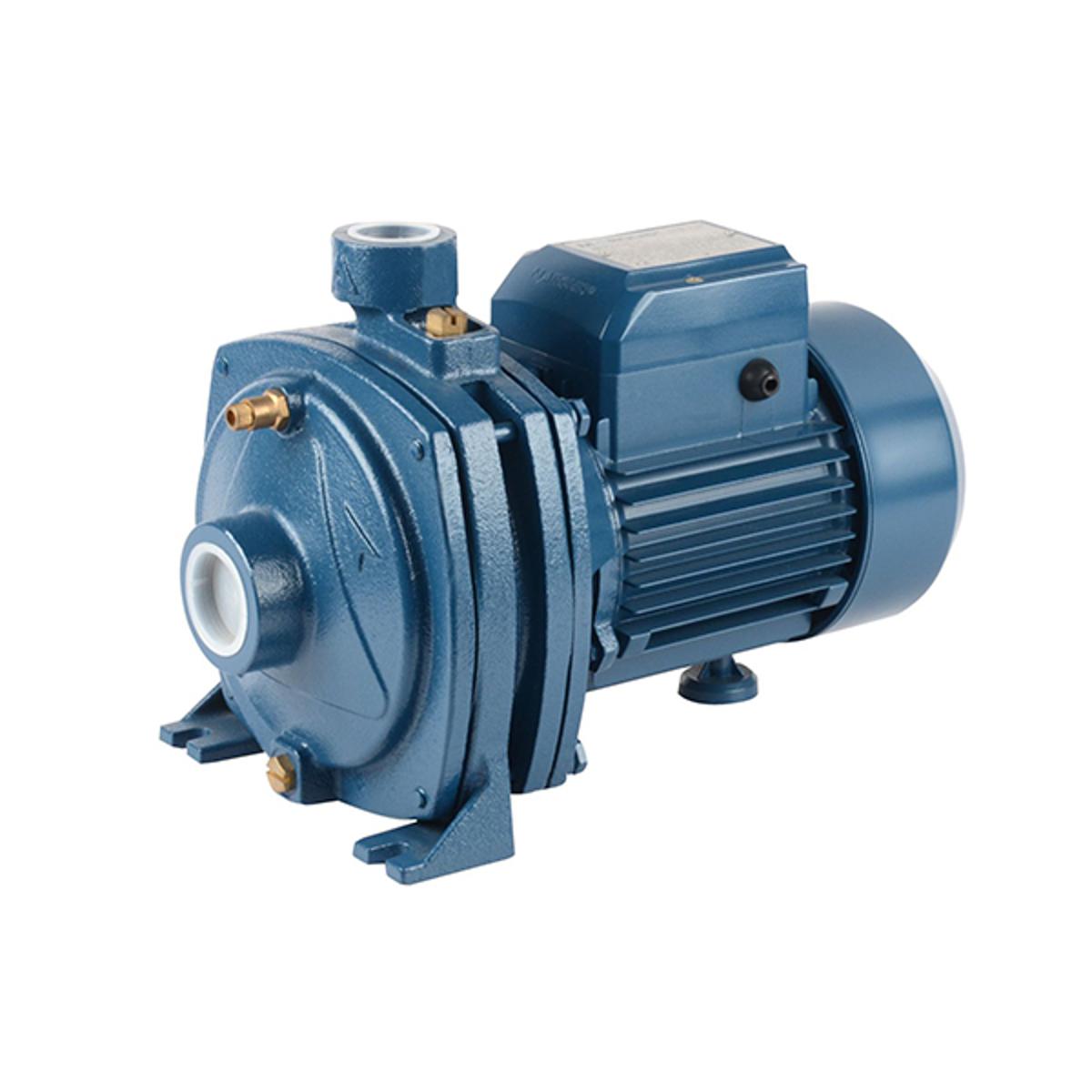

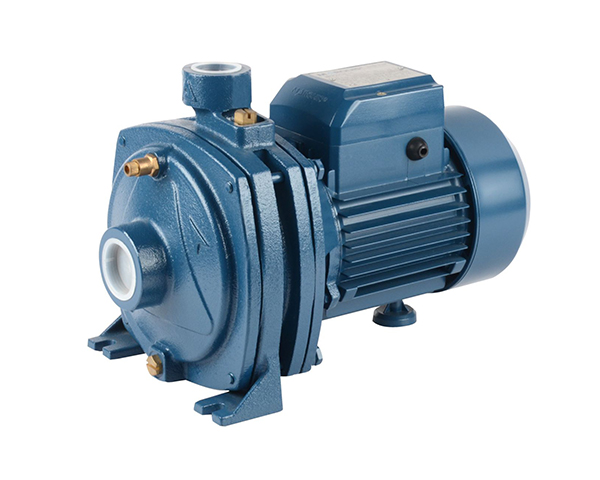

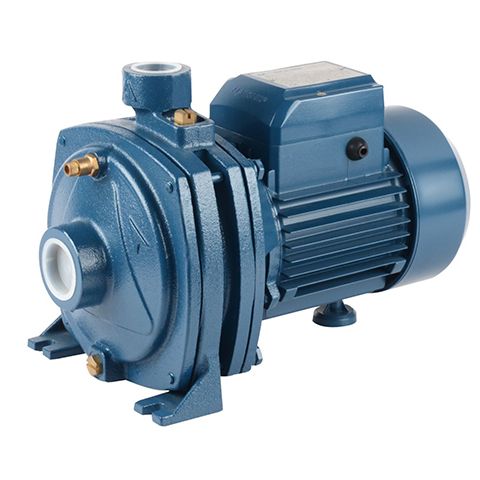

Marquis 2HP (1.50 kW) 2-Stage Centrifugal Pump – 2MCP 32/160B

1. Overview

The Marquis 2MCP 32/160B is a two-stage centrifugal pump designed to deliver high-pressure water flow while maintaining efficient energy consumption. With a 2 HP (1.50 kW) motor, this pump is suitable for industrial, commercial, agricultural, and domestic applications, ensuring consistent performance under demanding conditions.

2. Technical Specifications

• Model: 2MCP 32/160B
• Pump Type: Multi-Stage Centrifugal Pump (2-stage)
• Motor Power: 2 HP (1.50 kW)
• Voltage: Available in single-phase (M) or three-phase (T) variants
• Inlet Diameter: 32 mm (1.25 inches)
• Outlet Diameter: 32 mm (1.25 inches)
• Max Flow Rate: Typically 120-150 L/min (depending on system conditions)
• Max Head (Lift Height): 45-60 meters (due to multi-stage design)
• Material:
  • Pump Body: Cast iron or stainless steel
  • Impeller: Corrosion-resistant brass or stainless steel
  • Shaft: Stainless steel for enhanced durability
• Pump Speed: 2900 RPM
• Cooling Method: Air-cooled motor
• Protection Rating: IP55 (dust and water-resistant motor housing)

3. Features & Benefits

✅ Two-Stage High-Pressure Design – Delivers higher pressure than single-stage pumps. ✅ Energy Efficient – Optimized for low power consumption while maintaining high performance. ✅ Durable Construction – Corrosion-resistant impellers and stainless-steel shaft ensure a long lifespan. ✅ Smooth & Quiet Operation – Low vibration and noise make it ideal for continuous use. ✅ Self-Priming Capability – Requires initial priming but maintains efficiency over time. ✅ Thermal Overload Protection – Prevents motor damage due to overheating.

4. Applications

🔹 High-Pressure Water Supply – Suitable for residential buildings, hotels, and commercial properties. 🔹 Irrigation & Sprinkler Systems – Ideal for farms, greenhouses, and landscaping. 🔹 HVAC & Boiler Systems – Ensures efficient water circulation in heating and cooling systems. 🔹 Industrial Liquid Transfer – Used for process water circulation, pressure boosting, and fluid movement.

5. Installation & Maintenance

• Stable Installation – Secure on a stable base to minimize vibrations.
• Regular Maintenance – Clean impellers and filters to maintain efficiency.
• Electrical Load Monitoring – Ensure proper voltage and amperage for long-lasting performance.
• Correct Piping Selection – Use appropriate pipe diameters to maximize flow rate and pressure.

6. Conclusion

The Marquis 2MCP 32/160B is a powerful, high-pressure, two-stage centrifugal pump ideal for applications requiring consistent and efficient water pressure. With rugged construction, energy efficiency, and high performance, it is a top choice for domestic, industrial, and agricultural water pumping needs.
