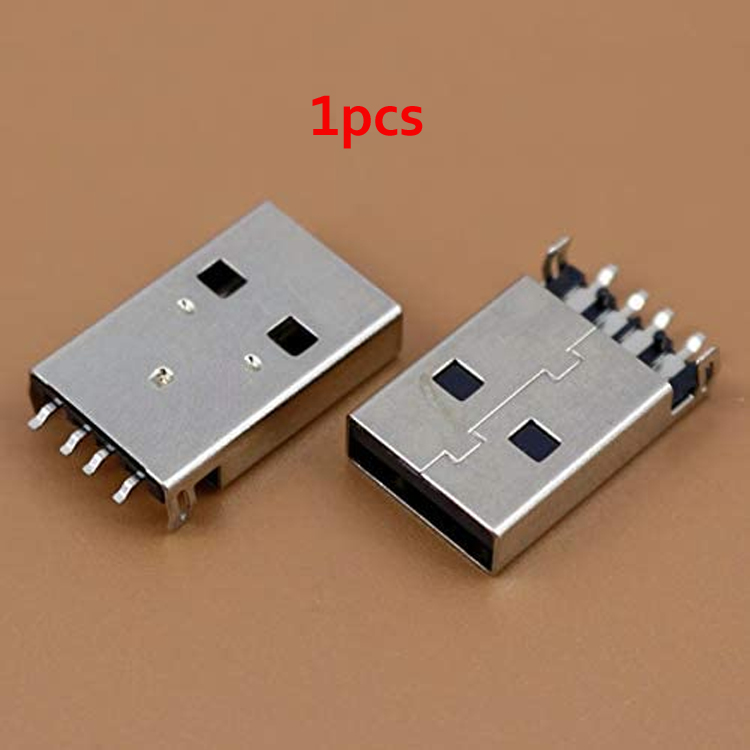

Description: Male USB 2.0 Jack Type-A 4 Pin Male Plug DIP Socket Connector Panel Mount

Its the USB Type ‘A’ male SMD connector for to use with any P.C.B that will be used with a Type A to Type A USB cable. Male USB 2.0 Jack Type-A Male SMT Plug DIP Socket Connector Panel Mount For Data Cable Charging Jack DIY

This is USB Type A 4-Pin male Connector Socket. It is used for desktop PCs, peripherals, keyboards, mouse, digital consumer electronics and telephony-ISDN, PBXs, Cell phones, PDAs, MP3 Players, Other portable and hand-held devices.

Specifications:

• Material: Plastic, Metal;
• Color: Silver Tone, White
• Product name male USB Connector
• Rating DC 30V 0.2A
• Insulation resistance ≥1000MΩ min. 500V DC
• Dielectric strength 250V AC for 1min
• Contact resistance ≤50mΩ
• Operating temp. range -30ºC ~ +70ºC
• Lifetime 5000 cycles min.
• Insertion force ≤35N
• Extraction force ≥10N
• Total Size: 19x12x 4.5mm
• Pin No: 4 Pin

Features:

• USB 2.0 Type A 4 pin Male Jack, Easy connect design.
• Compact, lightweight, and durable. Very easy to use. DIY your own USB adapter.
• Excellent USB replacement for P.C.B board and mobile power USB socket.
• Fit for electronics power port repair or DIY projects power supply port.

Application:

• They can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.

Package Include:

• 1 x Male USB 2.0 Jack Type-A 4Pin Male Plug DIP Socket Connector Panel Mount For Data Cable Charging Jack DIY
