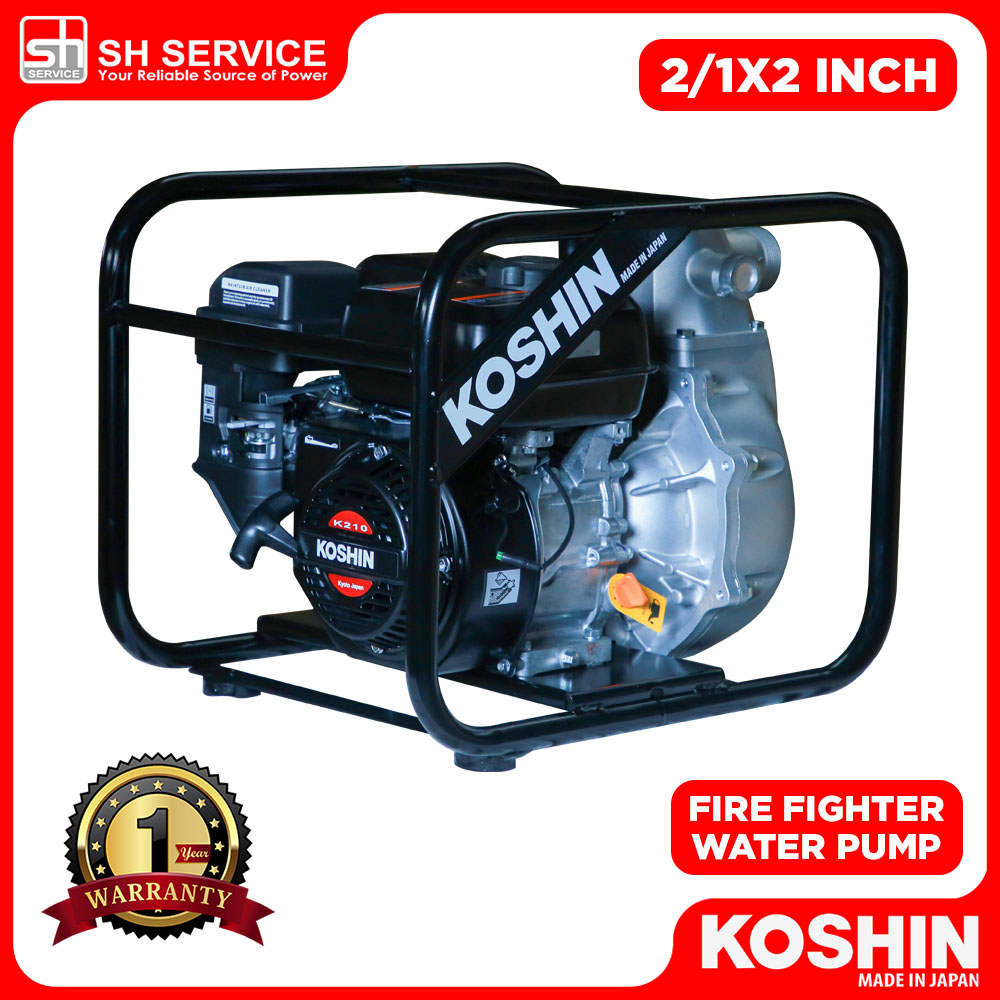

Water Pump

COUNTRY OF ORIGIN

Japan

BRAND

Koshin

MODEL

SERV-50Z

CONNECTION DIA

In: 50mm(2″); Out: 50mm(2″) / 25mm(1″) x 2

CONNECTION THREAD

Outer Pipe Thread BSP or NPT *1

TOTAL HEAD

90 m (295 ft)

DELIVERY VOLUME

480 L/min

MAX. SUCTION LIFT

8 m (26 ft)

Engine

MODEL

K210 High rpm

TYPE

Forced Air-cooled 4 stroke Gasoline Engine

DISPLACEMENT

212cc

RATED OUTPUT

4.4 kW(6.0 PS)(5.9 HP) / 4400 rpm

MAX. OUTPUT

4.9 kW(6.7 PS)(6.6 HP) / 4000 rpm

ENGINE OIL CAPACITY

0.5L

FUEL TANK CAPACITY

3.3L (0.87 USG)

CONTINUOUS OPERATING TIME

Approx 1.2 hrs

STARTING METHOD

Recoil Starter

Dimension & Weight

GROSS WEIGHT

37.5 kg (82.7 lbs)

DIMENSION L×W×H (MM)

570×450×468
