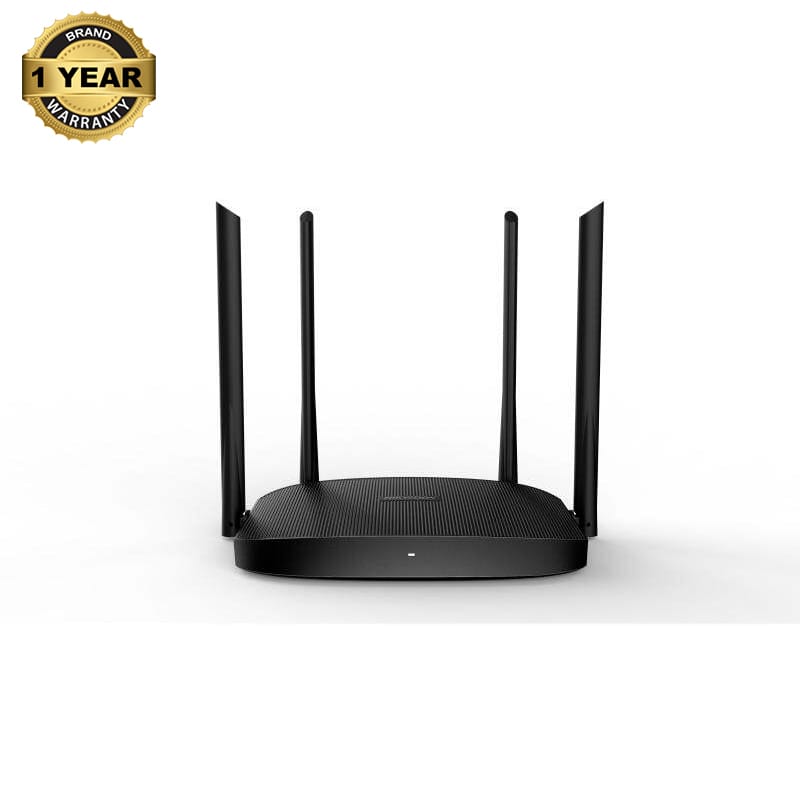

HIKVISION Router DS-3WR12C AC1200 Wireless Router Dual Brand WIFI 5 Router 300+867Mbps 4 Antenna MU-MIMO - Black

• General

• Product Dimension (W × H × D)248.40 mm × 154.80 mm × 213.34 mm (9.78"× 6.09"× 8.40")
• Package Dimension (W × H × D)306 mm × 290 mm × 59 mm (12.05"× 11.42"× 2.32")
• Net Weight0.222 kg (0.489 lb)
• Packing ListWireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
• Packing MethodSingle pack
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 90% RH non-condensing
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity5% to 90% RH non-condensing
• Installation ModeDesktop installation
• Max. Power Consumption≤ 9 W
• Gross Weight0.722 kg (1.592 lb)

• Wireless Parameter
• Data Rate

≤ 1167 Mbps

2.4 GHz: 300 Mbps

5 GHz: 867 Mbps

• Wireless StandardIEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Working Frequency Band2.4 GHz，5 GHz
• Transmitting Power

CE:

<20 dBm(2.4G)

<23 dBm(5G)

• Wireless Performance

4 × 4 MU-MIMO supported

Beamforming supported

• Receiving Sensitivity

58 ± 2 dB@AC80 -MCS9

84 ± 2 dB@AC80 -MCS0

• Antenna4 high gain antennas
• Operating Frequency

2.4 GHz: US/2412-2472 MHz(CH1-CH13)

5 GHz: US/5180-5240 MHz(CH36-CH48)

5 GHz: US/5740-5805 MHz(CH149-CH161)

• EIRP Power(Max.)

2.4 GHz: 19.86 dBm

5 GHz: 22.96 dBm

• Hardware Parameter
• Network Interface1*10/100Mbps WAN port 3*10/100Mbps LAN ports
• LED IndicatorLED indicator
• ResetReset button
• Power Supply Method9 VDC, 1 A power adapter power supply
• Power Specifications9 VDC, 1 A

• Software Function
• Application Function

Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported

DHCP Server supported

Guest Network Configuration supported

Signal Adjustment supported

WiFi Schedule supported

• Security ModeWPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Security MechanismHide SSID
• Management MethodWeb
• UpgradeWeb Update and Upgrade
• System LogSystem log
