Specification:-

Video/Audio Input

Audio Input:8-ch

Video Compression:H.265Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input:8-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types:SupportHDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30,720p25

Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25,720p30

Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

Support CVBS input

Video Input Interface:BNC(1.0 Vp-p, 75Ω)

Audio Compression:G.711u

Audio Input Interface:4-ch,RCA (2.0 Vp-p, 1 KΩ)

Two-way Audio:1-ch,RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input)

Video/Audio Output

CVBS Output:1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480

HDMI/VGA Output:VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Recording resolution:8MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate:Mainstream:

5 MP@12fps/4 MP@15fps/3 MP@18fps

1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:32Kbps-10 Mbps

Stream Type:Video/Video&Audio

Two-way Audio:1-ch,RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Audio Output:1-chRCA(Linear, 1kΩ)

Audio Bit Rate:64kbps

Dual Stream:Support

Playback Resolution:8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Synchronous Playback:8-ch

Network management

Remote connections:64

Network protocols:TCP/IP,PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?,HTTPS,ONVIF

Hard Disk Driver

Interface Type:1SATA Interface

Capacity:Upto 8 TB capacity for each disk

External Interface

Network Interface:1; 10M / 100M / 1000Mself-adaptive Ethernet interface

USB Interface:1USB 2.0 Interface & 1 USB 3.0 Interface

Serial Interface:1;standard RS-485 serial interface, half-duplex

Alarm Input:8-ch

Alarm Output:4-ch

General

Power Supply:12 VDC

Consumption:≤ 20W(without hard disks)

Working Temperature:-10 oC to +55 oC (14 oF to 131 oF)

Working Humidity:10% to 90%

Dimensions:315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

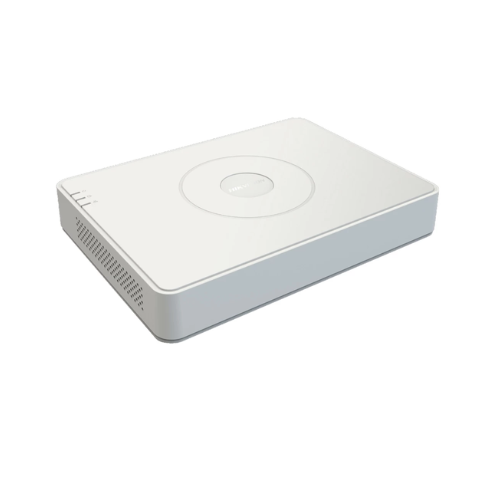

Weight:≤ 2 kg (4.4 lb)HikVision DS-7116HGHI-F1 Turbo HD DVR

HikVision DS-7116HGHI-F1/N Turbo HD DVR

• H.264 /H.264+& Dual-stream video compression
• Support both HD-TVI /analog and AHD cameras withadaptive access
• Full channel recording at up to 1080P lite resolution
• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support  4/8/16-ch synchronous playback at 720P resolution

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
