Specification:
Brand: HIKVISION
Model: DS-7104HGHI-F1
Access Channel: 8
Video compression:H.264+/H.264
Video bit rate: 32 Kbps to 4 Mbps
Dual stream: Support
Stream type: Video, Video & Audio
Audio compression:G.711u
Audio bit rate: 64 Kbps
Audio input:1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output:1-ch, RCA (Linear, 1 KΩ)
Two-way audio: Reuse the first audio input
Synchronous playback: 8-ch
VGA/HDMI output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Power supply:12 VDC
Consumption (without HDD):≤ 12 W
Working temperature: -10 °C to 55 °C (14 °F to +31 °F)
Working humidity:10% to 90%
Dimensions (W × D × H): 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weights (without HDD): ≤ 0.8 kg (1.8 lb)
Warranty: 1 Year

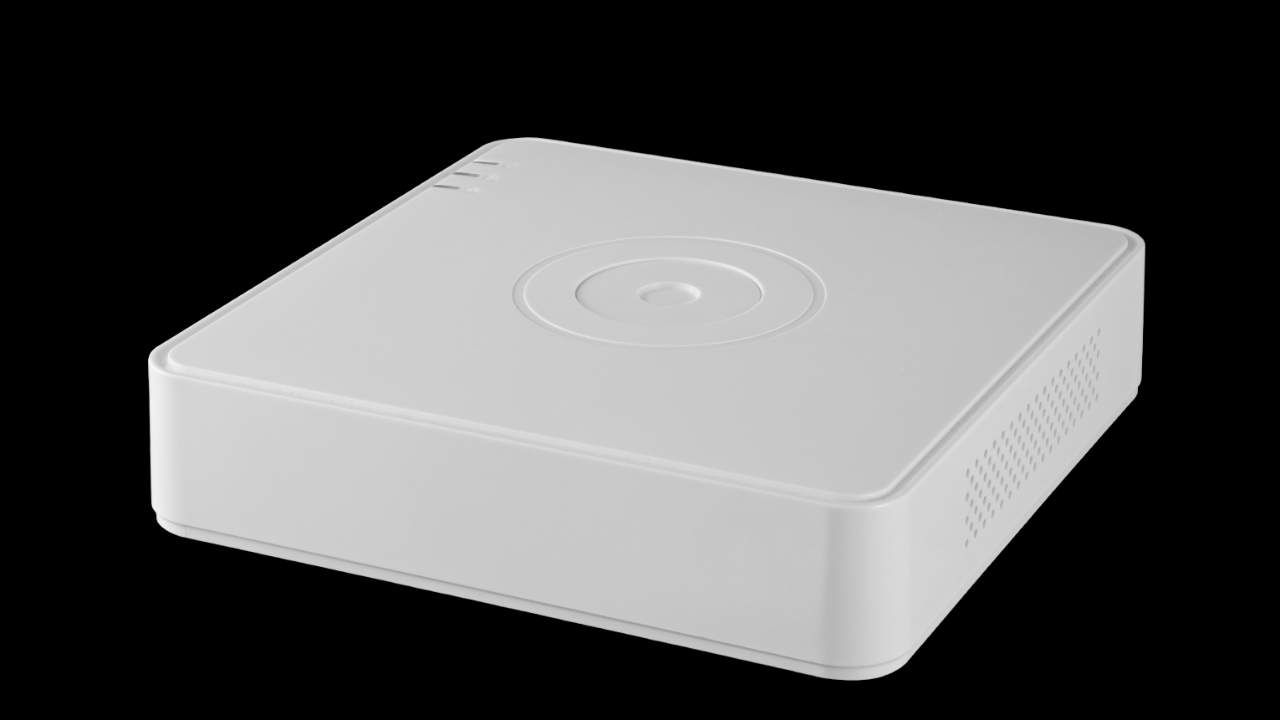

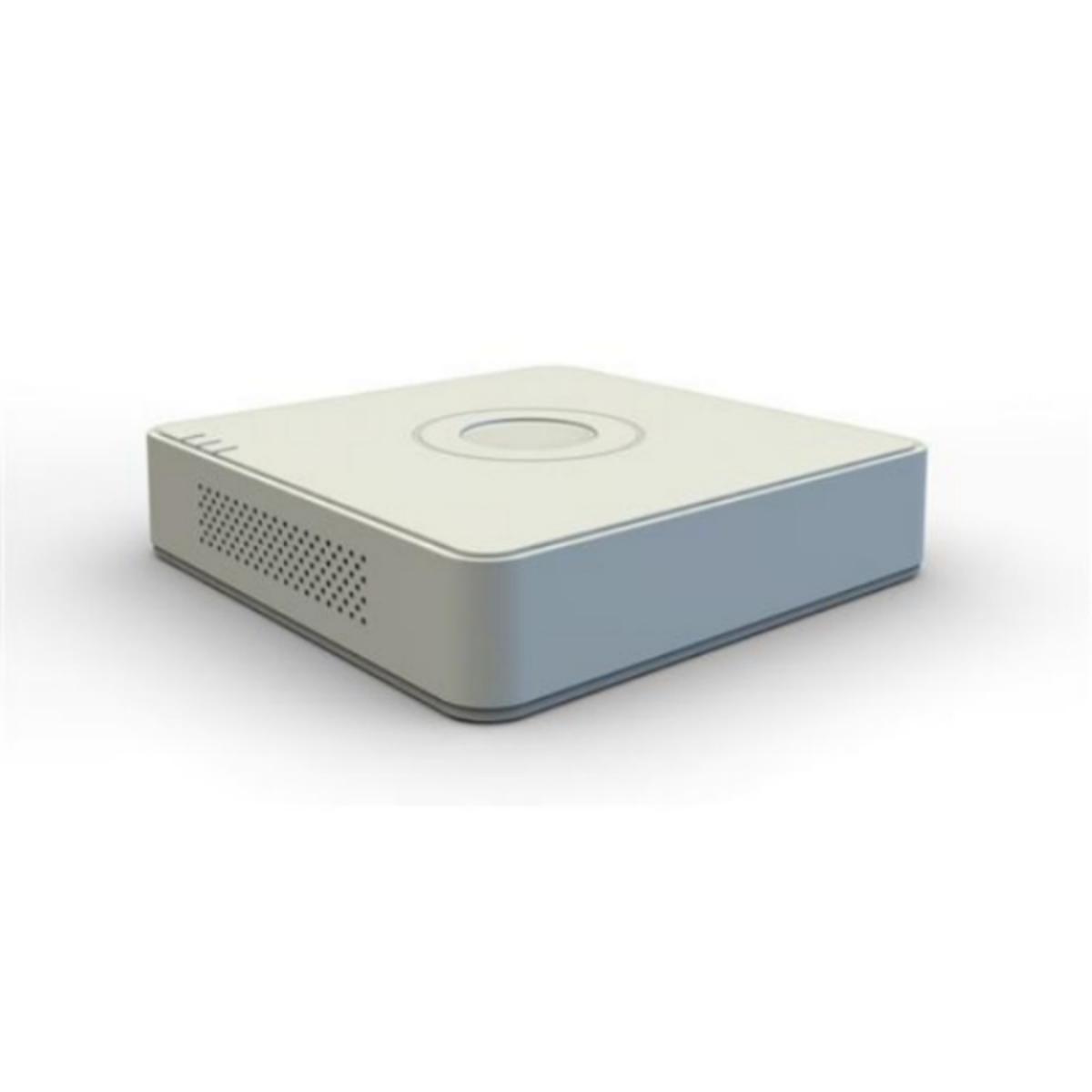

HIKVISION DS-7108HGHI-F1 & F1/N 8-CH Turbo HD 720p DVR
- 8 channels and 1 HDD mini size DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 10 network cameras can be connected
- 1 Year Warranty
Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.
Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
