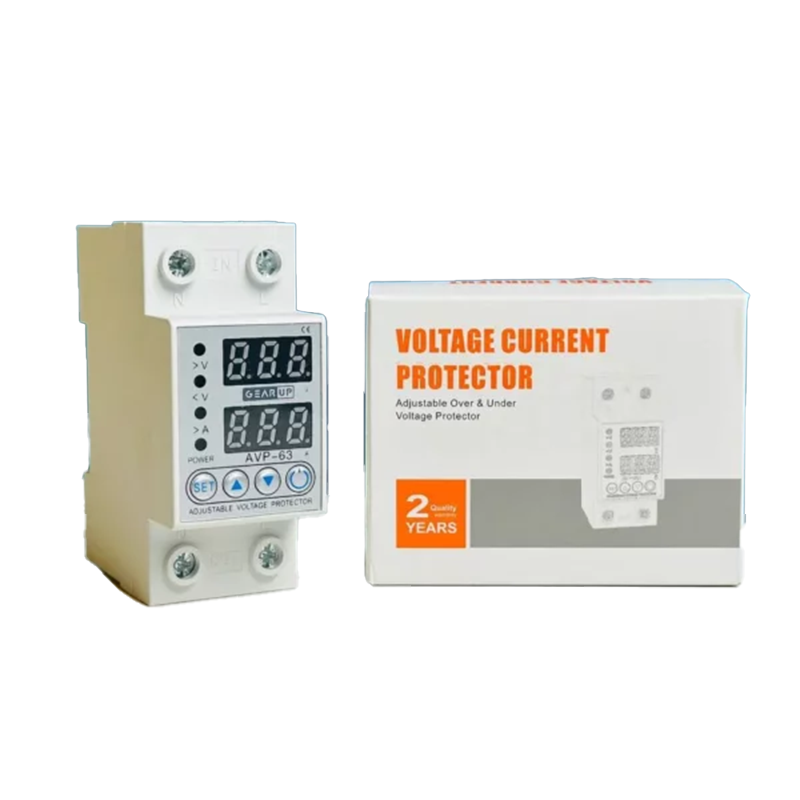

• GearUP AVP-63 Automatic Voltage Protector in Bangladesh
• Get The GearUP AVP-63 Automatic Voltage Protector-220V at zangmart.comEnjoy top quality and unbeatable prices with the best customer service in Bangladesh
• Key Functions
• Protection Features

Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).

Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).

Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).

Automatic Recovery: Restores power after fault conditions (adjustable via P-15).

Fast Power-Down: Emergency cutoff (enabled via P-14).

• Monitoring & Display
• Real-time voltage display (AC/DC).
• Real-time current display (AC only; DC mode shows voltage only).
• Indicators for faults (>V, A) and normal operation (POWER).
• Programmable Settings
• Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).
• Password protection (P-17) to prevent unauthorized changes.
• 2. Technical Specifications
• Category Details

Power Supply AC: 320V / DC: 80–300V

• Frequency 50/60Hz (AC only)

Voltage Range AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating)

• Max Current 40A/63A (configurable)

Accuracy Voltage: <1%

Response Time Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10)

• Environmental -25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C)
• Physical 512 × 960mm, 15kg
• 3. Setup & Operation Guide
• A. Initial Configuration

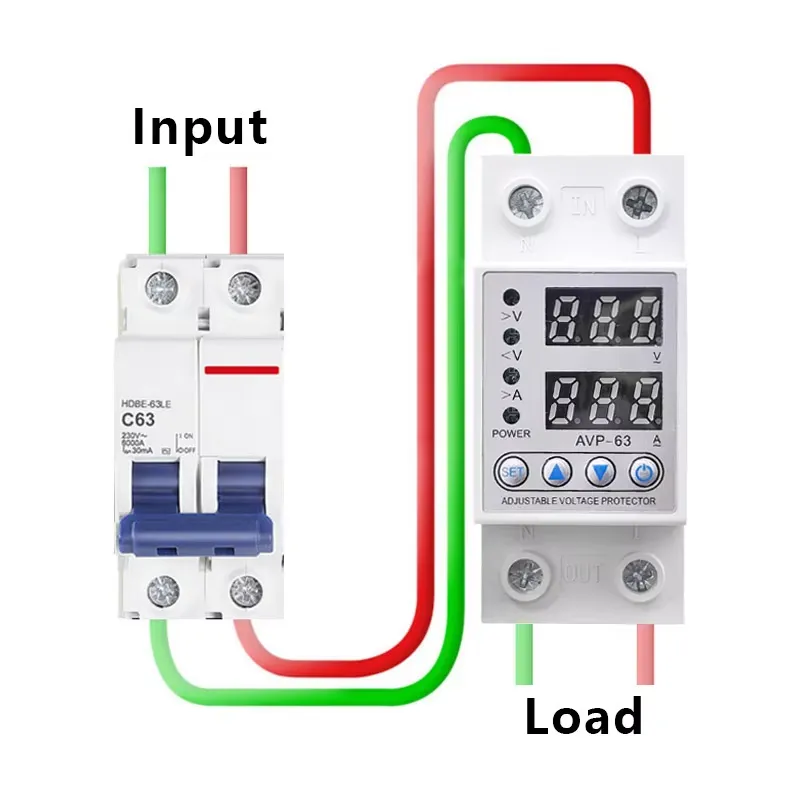

Power Connection

• Wire terminals (N-L) to AC/DC source within rated limits.

Menu Navigation

• Use front-panel buttons to adjust parameters (P-1 to P-17).
• B. Critical Settings
• Parameter Purpose Default Range

P-3/P-5 Over/under-voltage thresholds 300V/80V AC: 80–300V / DC: 130–300V

• P-9 Max current limit 63A 14–63A
• P-15 Auto-recovery after fault ON ON/OFF
• P-17 Password lock 000 000–999
• C. Calibration

Voltage: Adjust via P-8 (±10%).

Current: Calibrate with P-12 (±10%).

Frequency (AC only): Fine-tune with P-13 (±2.5%).

• D. Safety & Recovery

Manual Reset: Required if auto-recovery (P-15) is disabled.

Event Logging: Overcurrent counts (P-11) track fault history.

• 4. Usage Notes

DC Mode: Current display disabled; only voltage monitored.

Energy Saving: Enable P-16 to reduce idle power consumption.

Altitude Warning: Performance may degrade above 2000m.

Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.

Brand: GearUP

Model: AVP-63

Power Supply: AC: 320V / DC: 80–300V

Warranty: 1 year (Burn and physical damage not applicable)
