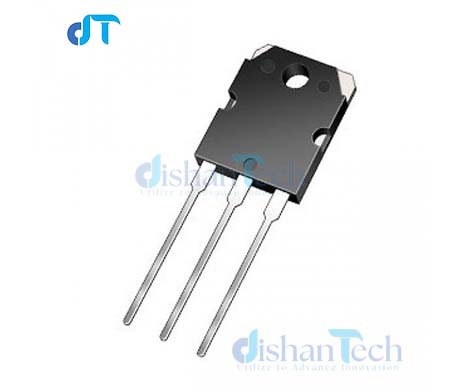

FGA15N120 IGBT

Key Features:

1. High Voltage Capability: IGBTs like the FGA15N120 are designed to handle relatively high voltage levels, making them suitable for power applications.

2. High Current Handling: These IGBTs are capable of handling significant current levels, which is crucial in power electronics for applications like motor drives and inverters.

3. Switching Speed: While not as fast as MOSFETs, IGBTs offer faster switching speeds compared to traditional BJTs, striking a balance between the two technologies.

4. Low Saturation Voltage: IGBTs typically exhibit low saturation voltage, contributing to lower power losses and increased efficiency in power conversion applications.

5. Temperature Stability: These devices are designed to operate reliably across a range of temperatures, ensuring stability in various environments.

6. Isolation: Like the name suggests, IGBTs feature electrical isolation between the input (gate) and output (collector-emitter) terminals, enhancing their usability and safety in high-power applications.

Applications:

• Motor drives
• Inverters
• Power supplies
• Induction heating
• Renewable energy systems
• Welding equipment

For accurate and detailed information on the FGA15N120 IGBT, it's crucial to refer to the manufacturer's datasheet and technical documentation. The datasheet provides precise electrical characteristics, application guidelines, and other important information for integrating the IGBT into electronic systems.
