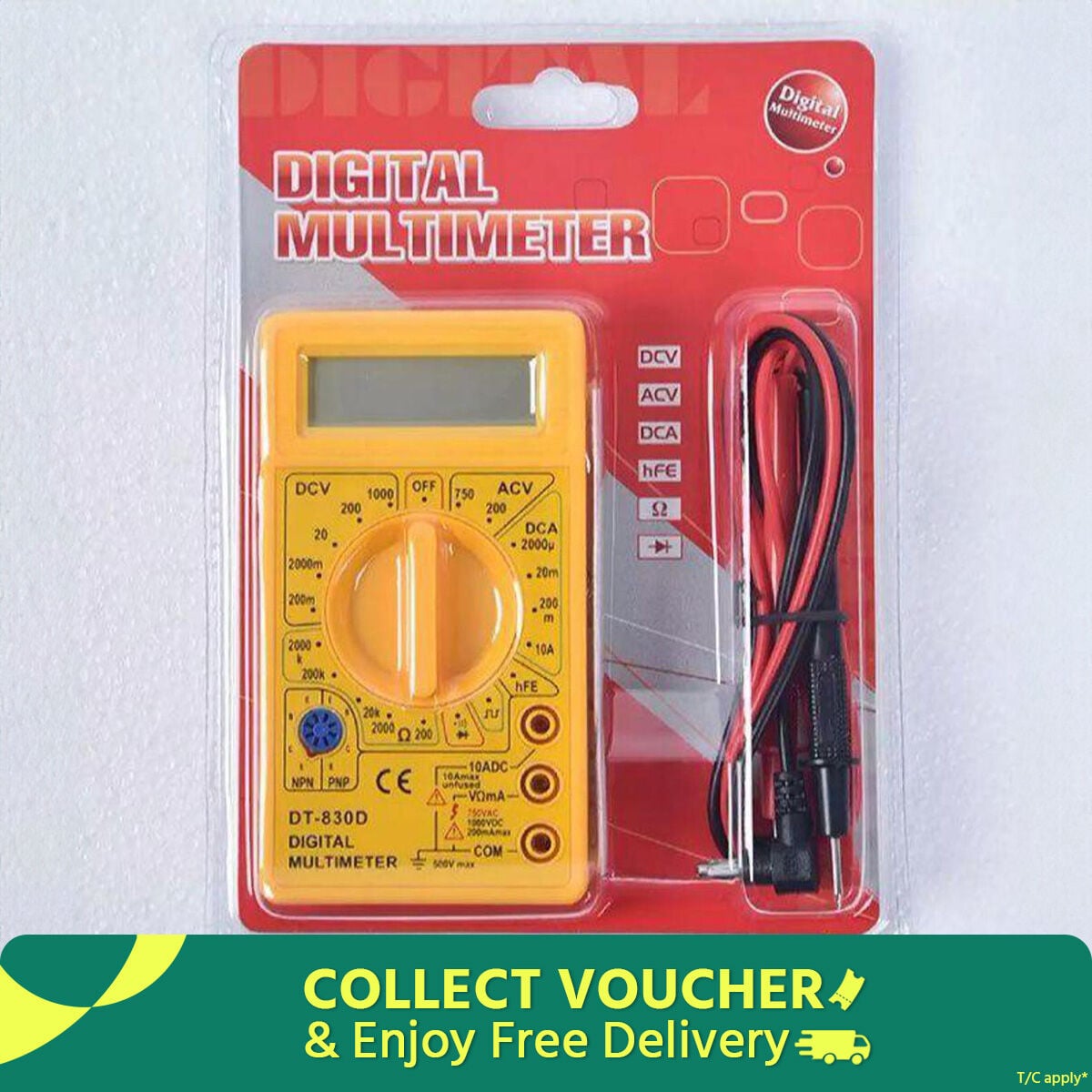

Digital Multimeter AVO Meter Measured Volt Amp Resistor - Yellow

• Digital Multimeter AVO Meter Measured Volt Amp Resistor

Product details of Digital Multimeter, Handheld Digital Multimeter LCD Backlight Portable AC/DC Ammeter Voltmeter Ohm Voltage Tester Meter Multimeter with Wire

• কারেন্ট, ভোন্টেজ, এম্পিয়ার, রেজিস্টেন্স ইত্যাদি সহজ পদ্ধতিতে পরিমাপ করা যায়
• Model Number:DT830B
• স্বচ্ছ ডিসপ্লে
• পরিমাপ হয় নির্ভূল
• দীর্ঘস্থায়ী লিথিয়াম ব্যাটারী
• টেকসই, মজবুত এবং দীর্ঘস্থায়ী
• বিল্ট-ইন স্ট্যান্ড
• DIY Supplies:Electrical
• Material:Polypropylene+Digital Accessories
• AC Current:10A
• AC Voltage:200V-750V
• Measuring Capacitance Range:/
• Dimensions:123*68*22mm
• Measuring Resistance Range:200-2000-20K-200K-2000K
• DC Voltage:200m-2000m-20V-200V-1000V
• Operating Mode:/
• Operating Temperature:0 - 50 ℃
• Display Type:Digital Display
• Measuring Inductance Range:/
• DC Current:200u-2000u-20m-200m-10A

Small and compact design,Low cost, pocket size ideal for hobby & DIY users , Auto polarity display mpling 2~3 times readings per second.

1.3 1/2 digits, 7segment, 0.5"high LCD Display.
2.Max display: 1999, Auto polarity display.
3.Small and compact design.
4.Overload protection on all ranges.
5.Sampling 2~3 times readings per second.
6.Diode assembly test / Temperature test/Transistor hFE test.
7.Low battery voltage indication.

Specification:

1.Model: DT-830B
2.Measuring range:
3.Max AC Current: 10A
4.Max AC Voltage range: 1000V
5.Max DC Voltage range: 750V
6.Resistance Measurement: 200 Ohm-2000K Ohm range
7.Temperature Test: -40-1000 °
8.Power Supply: 9V Battery (Not Included Here)
9.Color: Black /Yellow
10.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78'' (L*W*H)
11.Scale degree & Accuracy:
12.DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2)
13.AC voltage: 200V 100mv±(1.2% + 10)
750v 1v
14.DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2)
15.Resistance: 200&;0.1&;±(0.8% + 2)
2000&;1
20k&;10
200k&;100
2000k&;1000&;±(1% + 2)
16.Temperature: -40-1000° 1°±3%
