Maintechnicalparameters:

• Input supply voltage: 6V-28VDC

• Item size: 1.3*2*0.4 inches; Net Weight:0.85 ounces

• Duty Cycle adjustable: 0%-100%,withoutswitch.

• The maximum output power: 80W

• The maximum continuous output current :3A

Operatinginstruction:

Beforeyouattemptingtowirethecontroller,makesurepowerisoff.

WARNING:DONOTREVERSEPOSTIVEANDNEGATIVEPOWERLOADS.THISWILLDAMAGETHECONTROLLER.

TOCHANGEMOTORDIRECTION,INTERCHANGETHEPOSITIVEANDNEGATIVEWIRESOFMOTOR.

1.Connectwiresrefertothe"wiringdiagram" .

2.Turnonthepower,andadjustthepotentiometer.

3.TheLEDindicatesthepowerupandthespeedofmotor.

• Motor Type:DC Motor

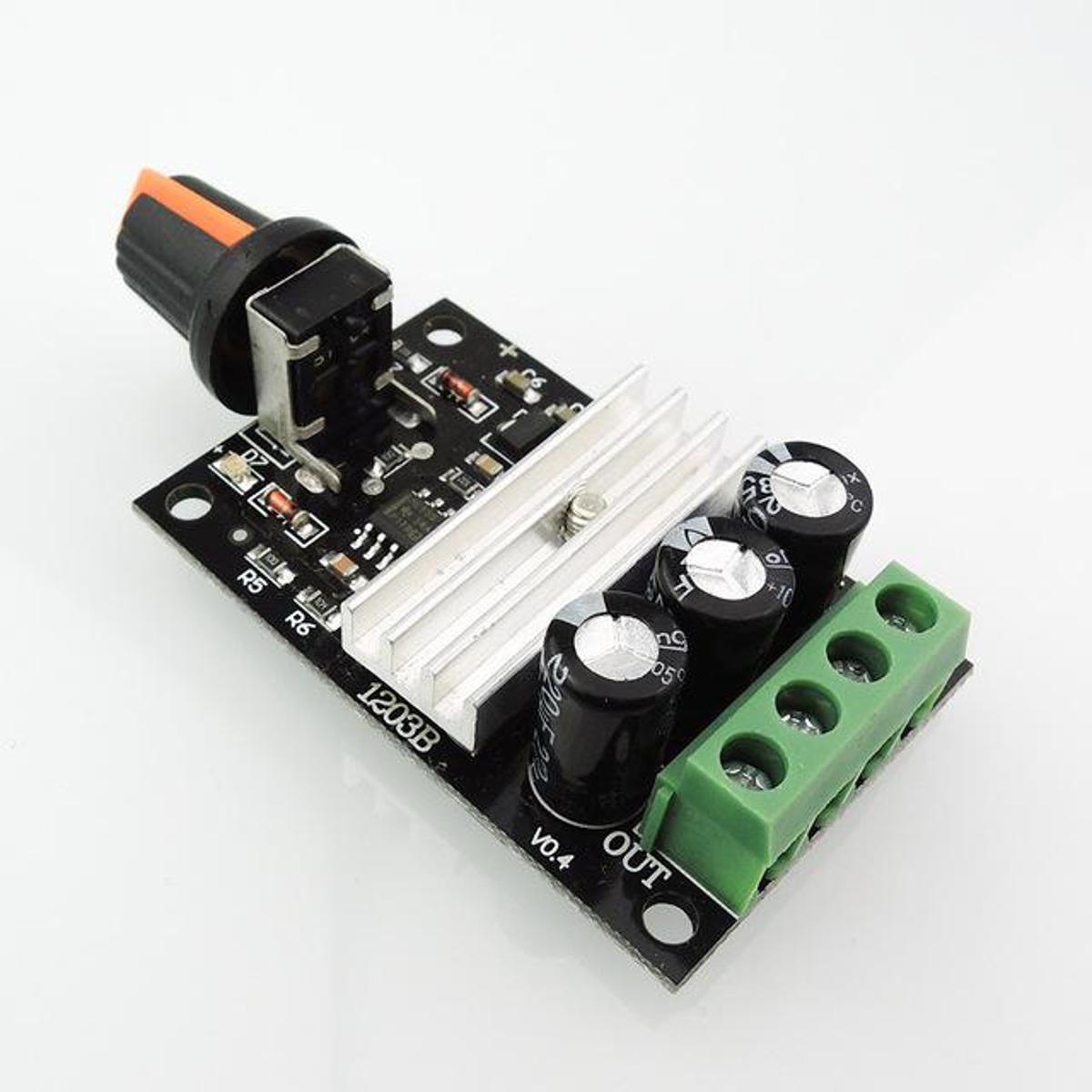

• Item Name: DC Motor Speed Controller
• Input supply voltage: 6V-28V DC
• Duty Cycle adjustable: 0%-100%
• Maximum output power: 80W
• Maximum continuous output current: 3A
• Voltage: DC
• Color: As Picture
