Description

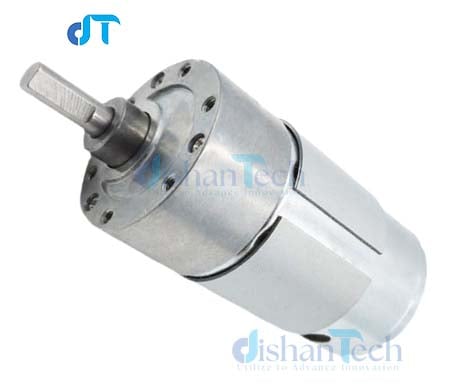

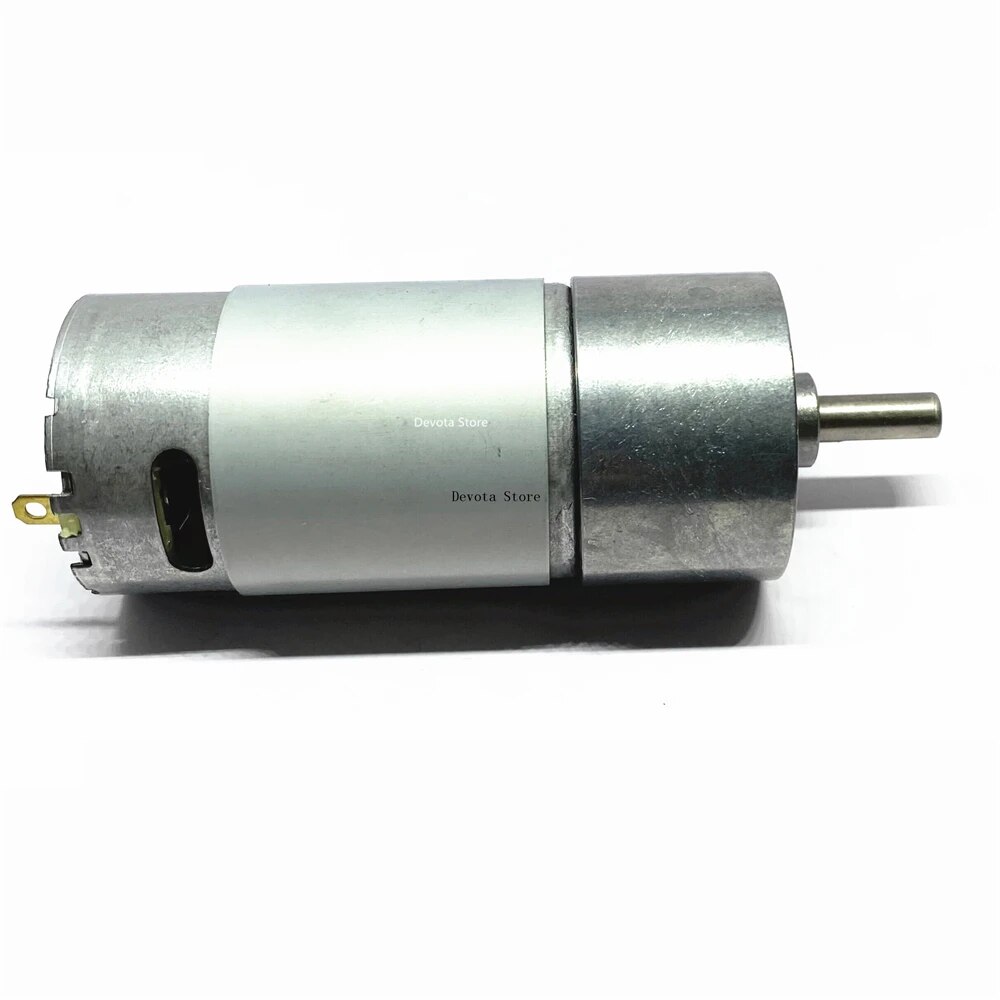

37GB-550/555 DC Gear Motor

The main parameters———–

Model: GB37-555

Voltage: DC12V

Rated current: 1.2A

No-load speed: 200r/min

Reduction ratio: 30

Load speed: 150r/min

Output torque: 5kg.cm

Single weight: 0.35kg

Conventional output shaft diameter: 6mm (5.5mm with chamfered edge)

No-load speed is optional:

6V:

3.7rpm 5.5rpm 8rpm 11rpm 16rpm 25rpm 33rpm 37rpm 50rpm 75rpm 100rpm 150rpm 225rpm 300rpm 450rpm 600rpm 750rpm

12V:

3.7rpm 5.5rpm 8rpm 11rpm 16rpm 25rpm 33rpm 37rpm 42rpm 50rpm 75rpm 83rpm 100rpm 125rpm 150rpm 225rpm 300rpm 375rpm 450rpm 600rpm 750rpm 900rpm 1200rpm 1500rpm

24V:

3.7rpm 5.5rpm 8rpm 11rpm 16rpm 25rpm 33rpm 37rpm 50rpm 75rpm 100rpm 150rpm 225rpm 300rpm 375rpm 450rpm 600rpm 900rpm 1200rpm 1500rpm 1800rpm

Specifications

• Color

  Gray

  Torque

  MAX 30KG.CM

• Usage

  Electric Bicycle,Fan,Home Appliance

  Model Number

  37GB-550/555

• Output Power

  8W

  Continuous Current(A)

  /

• Protect Feature

  Totally Enclosed

  Commutation

  Brush

• Construction

  Permanent Magnet

  Efficiency

  IE 2

• Type

  Gear Motor

  Certification

  NONE

• Origin

  Mainland China
