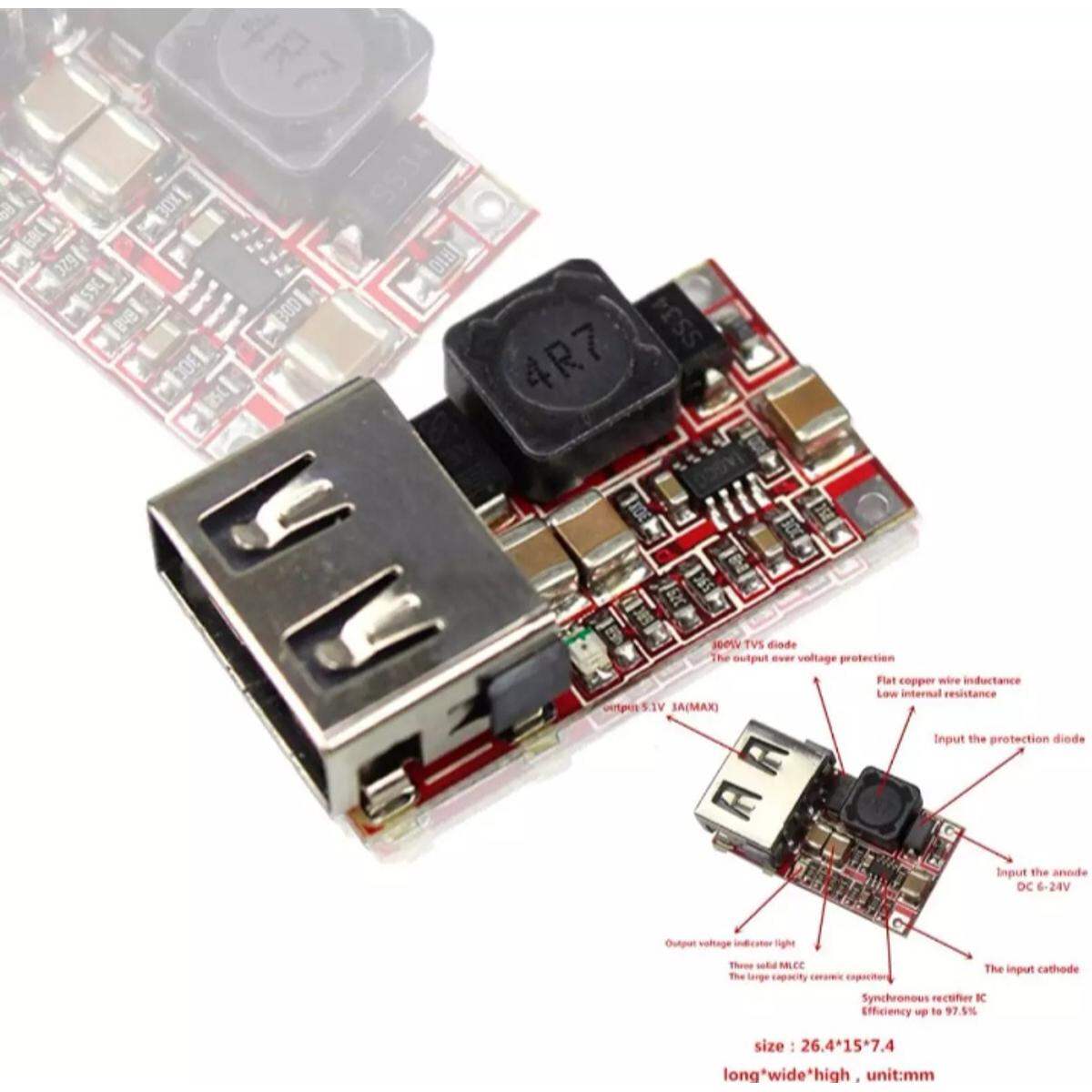

Module Properties: non-isolated buck module (BUCK) synchronous rectification

Input voltage: DC 6-24V

Output voltage: 5.1-5.2V

Output current: 3A MAX

Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)

Switch frequency: 500KHz

Output ripple: 10mV around (12V to 5V3A) 20M bandwidth

Output indicator: Output voltage indicator is red

Operating temperature: Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power)

Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.

Full load temperature: 30 Celsuis

Static current: 0.85 mA

Load regulation: ± 1%

Voltage Regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Specifications of DC 6-24V 12V/24v to 5V USB Output Charger Step Down Power Module Mini DC-DC Step Up Boost Module Power
