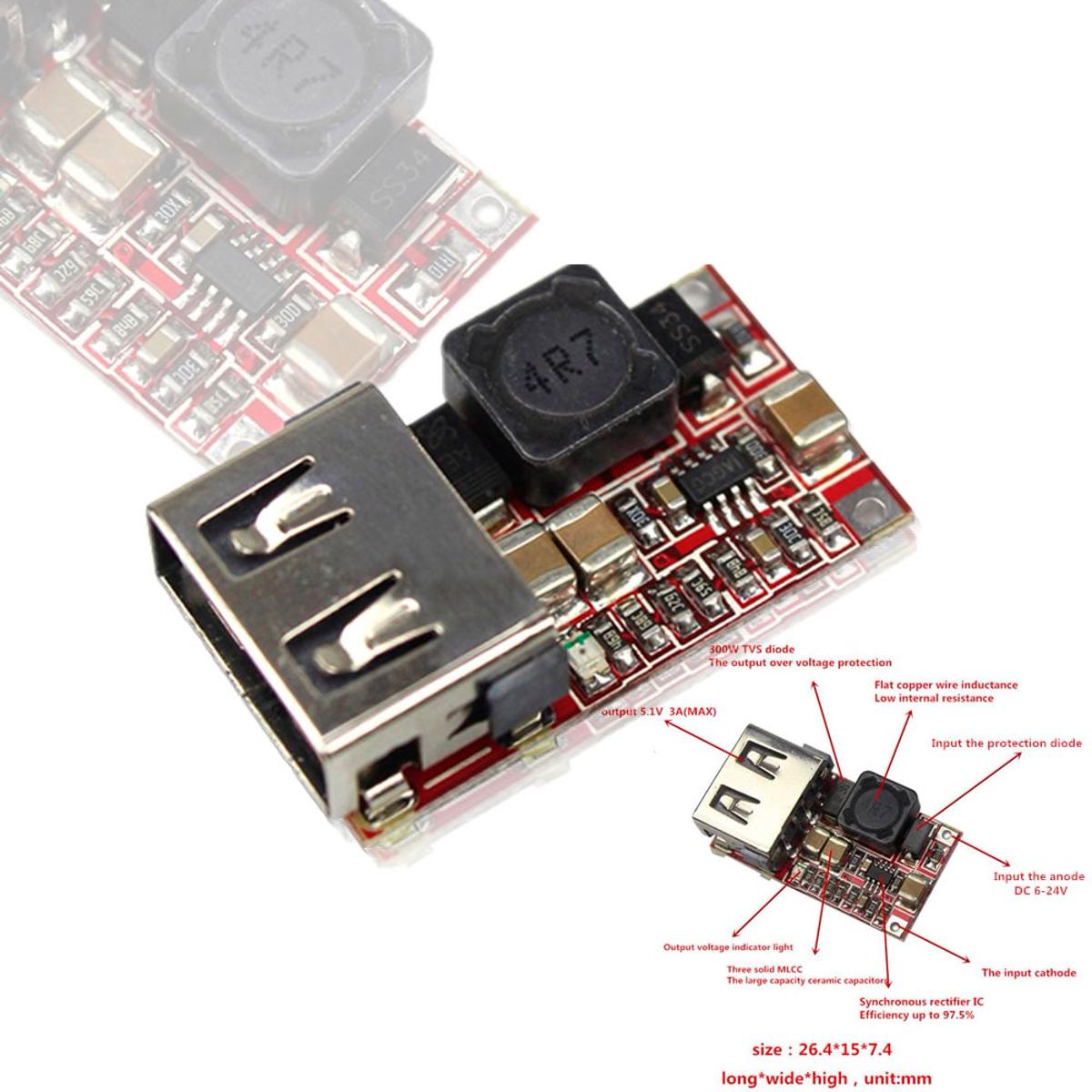

DC 6-24V 12V/24v to 5V 3A MAX USB Output Charger Step Down Power Module Mini DC-DC Buck Converter

Name: DC 6-24V 12V/24v to 5V 3A MAX USB Output Charger Step Down Power Module Mini DC-DC Buck Converter
SKU: RDE02183
Price: 250 BDT
Availability: InStock

Category:

SKU: RDE02183

Seller: READY ELECTRONICS

App Coupon & 10% Extra Savings ( T&C)

Tk 155

Tk 250

38% OFF

0 review(s)

Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: 3A MAX
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
Switch frequency: 500KHz
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
Output indicator: Output voltage indicator is red
Operating temperature: Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power)
Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
Full load temperature: 30 Celsuis
Static current: 0.85 mA
Load regulation: ± 1%
Voltage Regulation: ± 0.5%
Dynamic response speed: 5% 200uS

Call For Order : 09613-800800

DC 6-24V 12V/24v to 5V 3A MAX USB Output Charger Step Down Power Module Mini DC-DC Buck Converter

Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: 3A MAX
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
Switch frequency: 500KHz
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
Output indicator: Output voltage indicator is red
Operating temperature: Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power)
Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
Full load temperature: 30 Celsuis
Static current: 0.85 mA
Load regulation: ± 1%
Voltage Regulation: ± 0.5%
Dynamic response speed: 5% 200uS
