Specification
Brand: Dahua
Model: XVR5232AN-I3
Color: Black
Main Processor: Industrial-grade processor
Detection of Face Attributes: Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder: 2 channels (up to 12 face images/s each channel)
Face Database Capacity: Up to 10 face databases with 10,000 face images in total. Name, gender,
birthday, address, certificate type, cerificate No., countries & regions and state can be added
to each face image
SMD Plus by Recorder: 16 channels-Secondary filtering for human
and motor vehicle SMD Plus, reducing false alarms caused by leaves,
rain and lighting condition change
Analog Camera Input: 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input: Up to 32 channels of IPC access, 16 channels
Incoming bandwidth: 128 Mbps
Recording bandwidth: 128 Mbps
Outgoing bandwidth: 128 Mbps
Video Bit Rate: 32 kbps–6144 kbps per Channel
Audio Bit Rate: 64 kbps
Video Output: 1 HDMI, 1 VGA, 1 TV, VGA- 1920 × 1080, 1280 × 1024, 1280 × 720, HDMI-3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display: 1/4/8/9/16/25/36
Third-party Camera Access: ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Video Compression: AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression: G.711A; G.711u; PCM
HDD Interface: 2 SATA ports,up to 16TB, the maximum HDD capacity
RS-485: 1 port for PTZ control
USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
Power Supply: 12 V 5A
Power Consumption: <16 W (without HDD)
Dimension: 433.0 mm × 141.0 mm × 366.0 mm
Weight 3.20 kg
Warranty: 1 Year

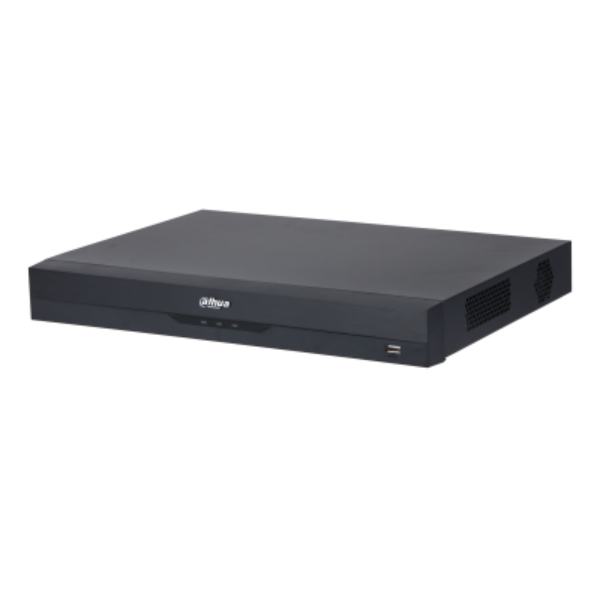

Dahua XVR5232AN-I3 32CH Penta-brid 1080P 1U 2HDDs WizSense DVR

Industrial-grade processor
H.265+/H.265 dual-stream video compression
HDCVI/AHD/TVI/CVBS/IP Camera Supported
Supports 16-channel AI-Coding
Max 32 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.
Up to 8 channels video stream (analog channel) Perimeter Protection.
Up to 16 channels video stream (analog channel) SMD Plus.
Up to 2 channels video stream (analog channel) human face recognition.
2 SATA ports,up to 16TB for each disk, the maximum HDD capacity
IoT & POS functionalities
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
