Brand: Dahua
Model: PFS4218-16ET-190
Ethernet Ports: 16 × RJ-45 10 M/100 M (PoE), 2 × RJ-45 10 M/100 M/1000 M (uplink), 2 × SFP 1000 M (uplink) (combo)
Layer: Layer 2
Managed: Yes
Switching Capacity: 8.8 Gbps
Packet Forwarding Rate: 5.36 Mpps
Packet Buffer Memory: 2.75 Mbit
MAC Table Size: 4K
Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z
Standard Power Supply: Yes
PoE: Yes
Ethernet Port: 16
Optical Port: 2
Ethernet Port Rate: 100 Mbps
Optical Port Rate: 1 Gbps
Debugging: Console × 1
PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt
PoE Budget: Port 1-2 ≤ 90W, Port 3-16≤ 30W, total ≤ 190W
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Management: Power consumption management, Power on and power off, Power down for overload, Green PoE, Legacy support
Long Distance PoE Transmission: 250 m long-distance power supply
Spanning Tree Protocol: IEEE 802.1d (STP); 802.1w (RSTP)
VLAN: IEEE802.1q Standard VLAN
Flow Control: Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Link Aggregation: Static; LACP
Port Mirroring: One-to-one; multiple-to-one
Multicast: GMP snooping based on port
DHCP: DHCP client
Security: Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication
QoS: High and low priority, WRR, 802.1P, DSCP, Priority based on protocol
ESD: Air discharge: 8kV, Contact discharge: 6kV
Thunder-proof: Common mode: 4kV, Differential mode: 2kV
Power Supply: 100V–240V AC
Operating Temperature: –10 °C to +55 ° (14 °F to 131 °F)
Operating Humidity: 10% RH–90% RH
Power Consumption: Idling: 10W, Full load: 190W
Dimensions: 440 mm × 300 mm × 44 mm
Weight: 3.51kg
Warranty: 1 Year

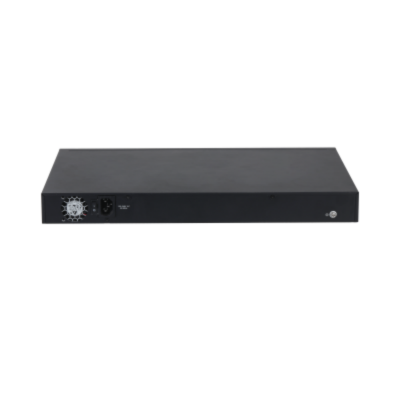

Dahua PFS4218-16ET-190 16-port 100 Mbps 2-port Gigabit Managed PoE Switch

16-Port PoE Switch
8.8Gbps Switching Capacity
4K MAC Table Size
16 × RJ-45 10 M/100 M (PoE), 2 × RJ-45 10 M/100 M/1000 M (uplink), 2 × SFP 1000 M (uplink) (combo) Ports
Intelligent PoE, 250 m long distance PoE transmission, PoE watchdog
1 Year Official Brand Warranty
