Brand: Dahua
Model: PFS3110-8ET-96
Data Transmission Port: Port 1–8: 8 × RJ-45 10/100 Mbps (PoE), Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink), Port 10: 1 × SFP 1000 Mbps (uplink)
Capacity: 7.6 Gbps
Packet Forwarding Rate: 4.17 Mbps
Packet Buffer Memory:1 Mbit
MAC Table Size: 8K
Communication Standard: IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3ab/IEEE 802.3z
PoE Standard: IEEE802.3af/ IEEE802.3at/ Hi-PoE/ IEEE802.3bt
PoE Power: Port 1-2 ≤ 90 W, Port 3-8 ≤ 30W, total≤ 96 W
Power Consumption Management: Yes
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE: 250 m (820.21 ft) long distance PoE transmission
Lightning Protection: Air discharge: 8 kV, Contact discharge: 6 kV
ESD Protection: Common mode: 4 kV, Differential mode: 2 kV
Power Supply: 48 V–57 V DC
Operaing Temperature: –30 °C to +65 °C (-22 °F to +149 °F)
Operating Humidity: 5% – 95% (RH)Power Consumption: Idling: 3 W, Full load: 96 W
Weight: 0.54 kg
Dimensions: 150 mm × 100 mm × 30 mm
Warranty: 1 Year

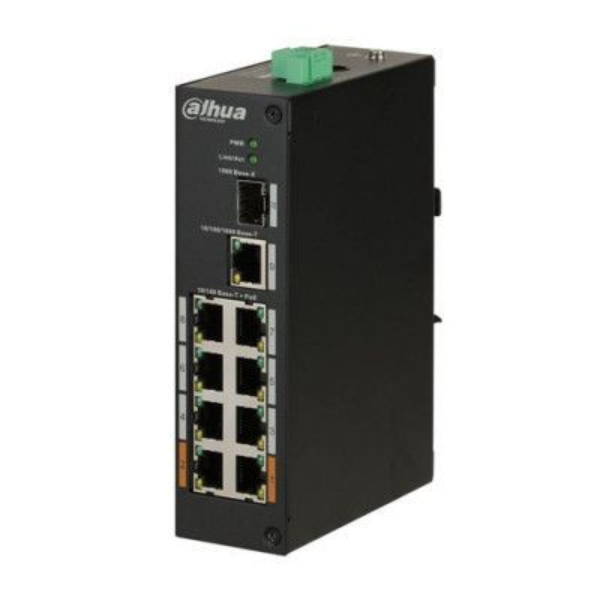

Dahua PFS3110-8ET-96 10-Port Unmanaged Desktop Switch with 8 Port PoE

8-Port PoE Switch
7.6Gbps Switching Capacity
8K MAC Table Size
8 × RJ-45 10/100 Mbps (PoE), 1 × RJ-45 10/100/1000 Mbps (uplink), 1 × SFP 1000 Mbps (uplink) Ports
BT 90W, 8-pin assignment PoE power supply, Long distance PoE, PoE watchdog
Supports IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3ab/IEEE 802.3z standards
1 Year Official Brand Warranty

Warranty: 1 Year warranty.
Note: Product delivery duration may vary due to product availability in stock.

Disclaimer: The actual color of the physical product may slightly vary due to the deviation of lighting sources, photography or your device display settings.
