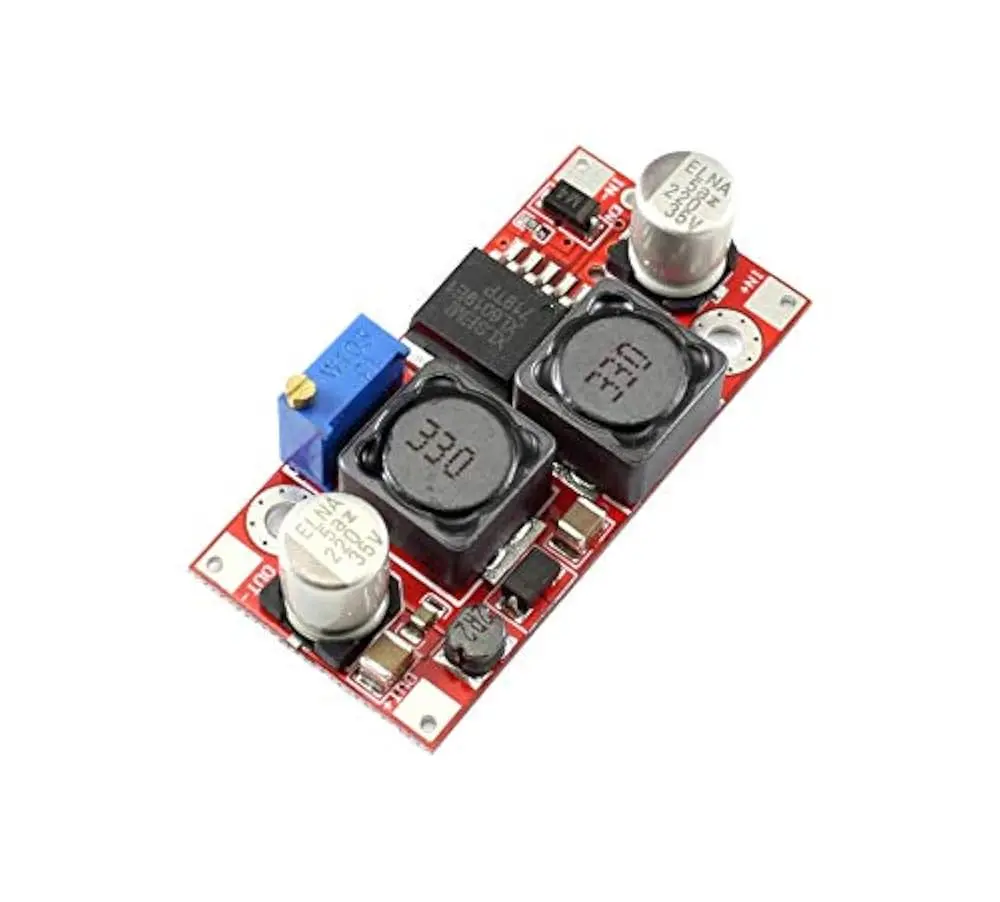

Product details of Xl6019 Boost Buck Dc-Dc Adjustable Step Up Down Converter Xl6019 Power Supply Module 20W 5-32V To 1.2-35V - Power Bank Circuit

• Specification model: DSN6000AUD automatic Buck module
• Module properties: non-isolated impulse (impulse)
• Rectification: non-synchronous rectification
• Input range: 3.8 V-32 V
• Output range: 1.25 V-35 V
• Input current: 3A (max), 18 ma without load (5 V input, 8 V output, the load is not less than 18 m, the higher the voltage, the higher the load current).
• Conversion efficiency: <94% (the higher the pressure, the lower the efficiency)
• Switching frequency 400 kHz
• Output ripple: 50 mV (the higher the voltage, the greater the current, the greater the ripple)
• Load regulation: 0.5%
• Voltage regulation: 0.5%
• Operating temperature: -40- + 85

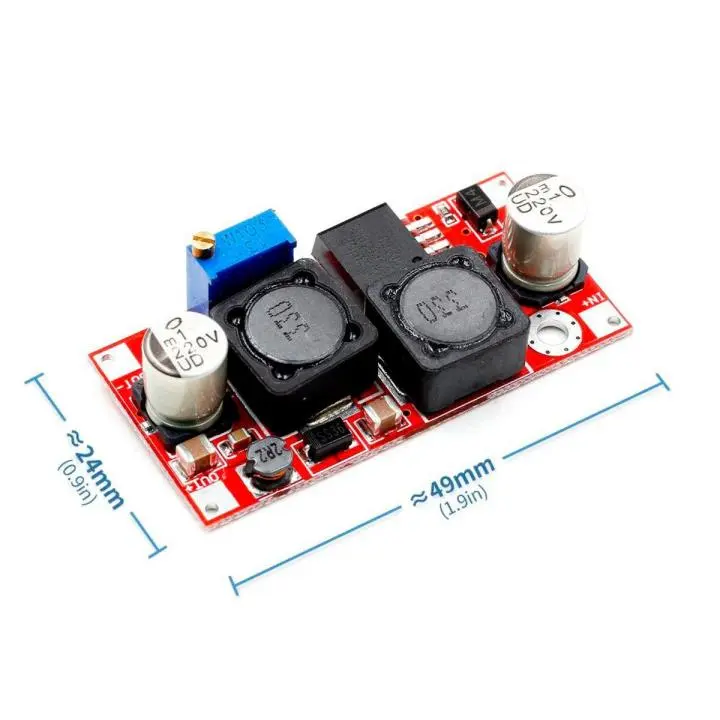

• Size: 49mm * 24mm (L * W )
