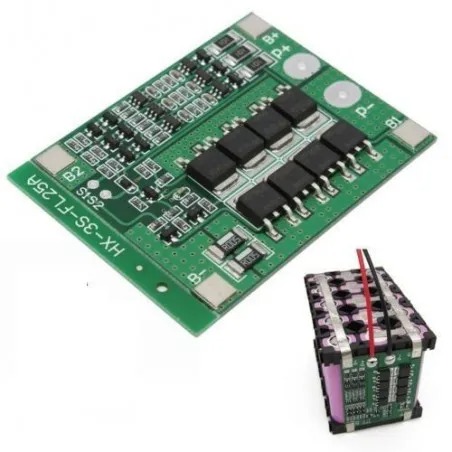

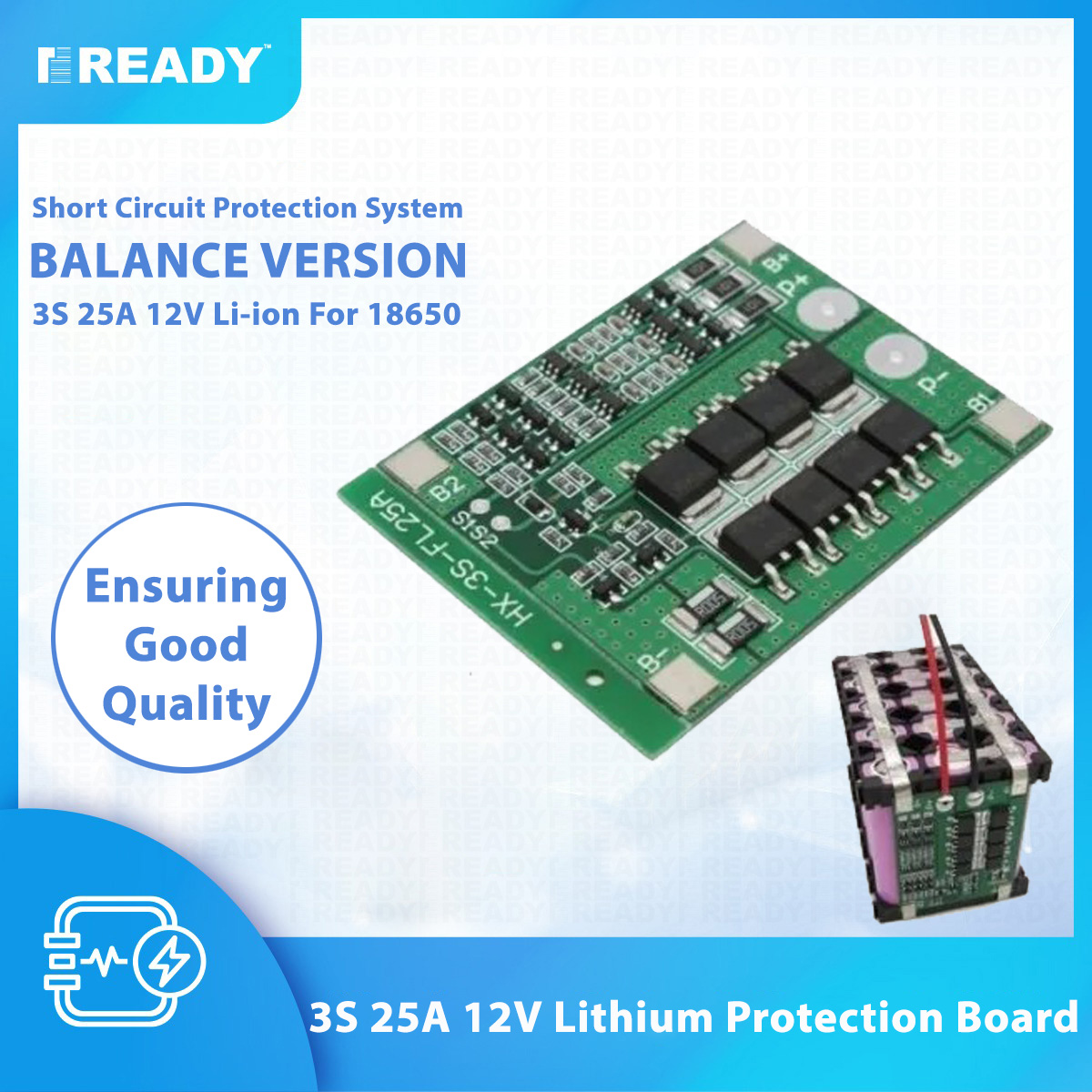

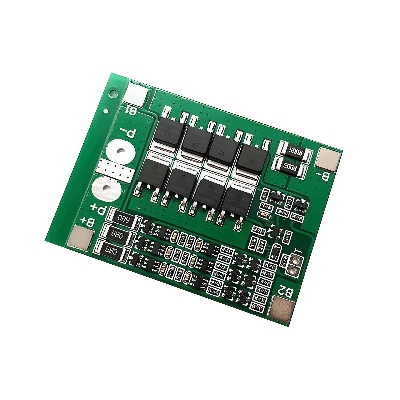

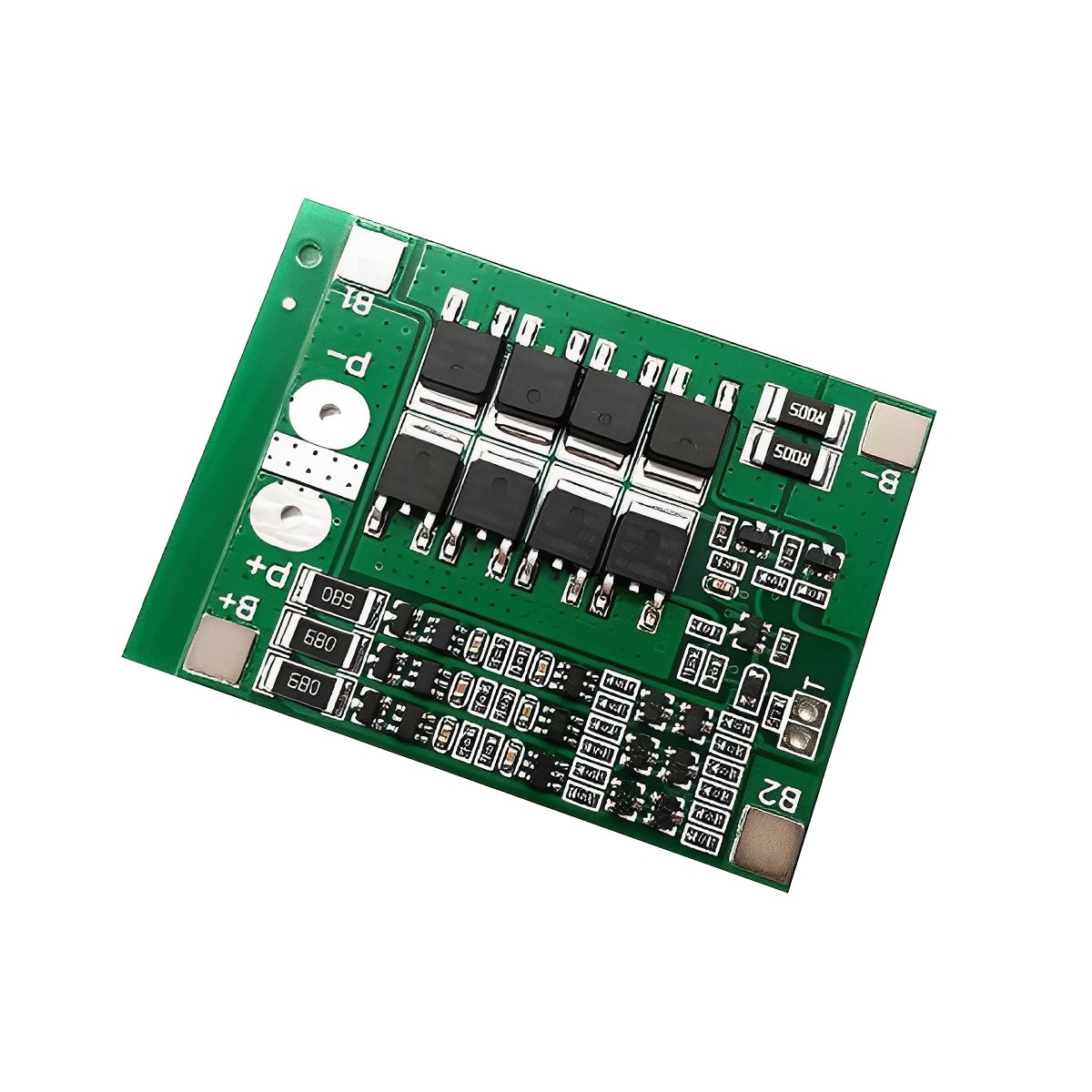

Advanced 3S 25A 12V Li-ion 18650 Lithium Protection Board: BMS PCB Guards Against Short Circuit - Secure Purchase for E-commerce

Category:
SKU: RDE01889
Seller: READY ELECTRONICS
Tk 189
Tk 450
Tk 450
58% OFF
0 review(s)
  • Size: about 56mm*45mm*1.2mm
  • Over voltage range: 4.25-4.35v±0.05v
  • Over discharge voltage range: 2.3-3.0v±0.05v
  • Maximum operating current: 0-25A
  • Maximum transient current: 34-40A
  • Quiescent current: less than 30uA
  • Internal resistance: less than 100mΩ
  • Working temperature: -40---+50℃
  • Storage condition: -40-- +80℃
  • Effective life: more than30000h
  • Short circuit protection: Yes, delayed self recovery

Call For Order : 09613-800800
  • Size: about 56mm*45mm*1.2mm
  • Over voltage range: 4.25-4.35v±0.05v
  • Over discharge voltage range: 2.3-3.0v±0.05v
  • Maximum operating current: 0-25A
  • Maximum transient current: 34-40A
  • Quiescent current: less than 30uA
  • Internal resistance: less than 100mΩ
  • Working temperature: -40---+50℃
  • Storage condition: -40-- +80℃
  • Effective life: more than30000h
  • Short circuit protection: Yes, delayed self recovery





  • Size: about 56mm*45mm*1.2mm
  • Over voltage range: 4.25-4.35v±0.05v
  • Over discharge voltage range: 2.3-3.0v±0.05v
  • Maximum operating current: 0-25A
  • Maximum transient current: 34-40A
  • Quiescent current: less than 30uA
  • Internal resistance: less than 100mΩ
  • Working temperature: -40---+50℃
  • Storage condition: -40-- +80℃
  • Effective life: more than30000h
  • Short circuit protection: Yes, delayed self recovery
