4 pin to HDD Dual SATA Split Power Cable DVR CCTV Recorder (Type 2)

Name: 4 pin to HDD Dual SATA Split Power Cable DVR CCTV Recorder (Type 2)
SKU: SASN717933
Price: 250.00 BDT
Availability: InStock

Category: Data Cable

SKU: SASN717933

Seller: SASIN

App Coupon to Get Extra Discount

Tk 250

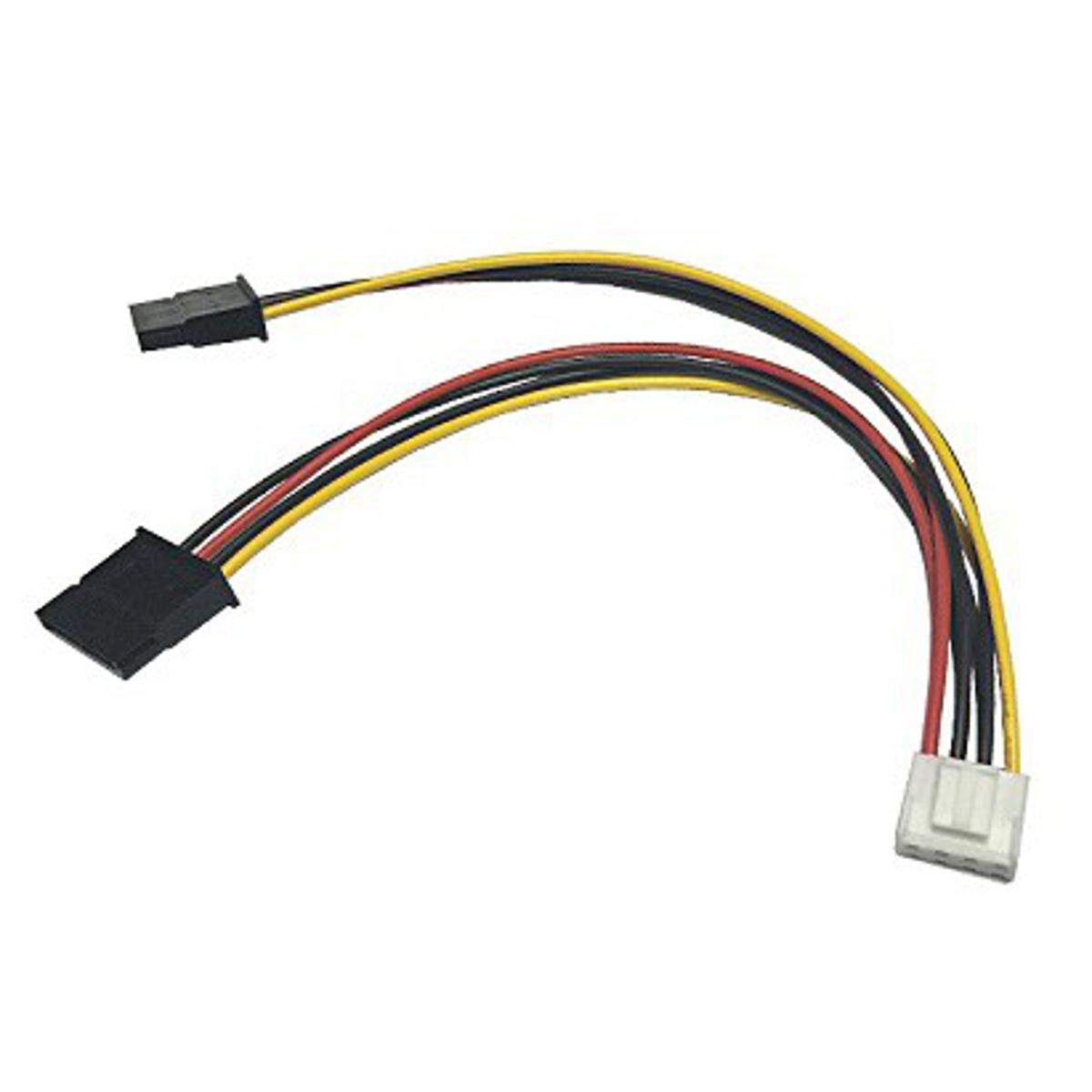

Brand by Akiba-Accessories - 4pin P-3.96 connection split to 2 way SATA Connector for power
This cable is used for DVR / DNR / XVR Video Recorder / Mini Industrial PC and etc...Each type of brands or models may require different voltage inputs, thus resulting mainly 2 types or wiring connection on 12V & 5V.
This cable is with Type 2 connection at 4pin connection. (5V red wire
Pin 4 from left, 12V Yellow Wire
Pin 1 from left). Wiring details please refer image 2
Connector on End A : 2 x SATA (15 pin) Female
Connector on End B : 1 x 3.96mm Pitch (4 pin Power) Female
Approx Cable Length: 15 cm
