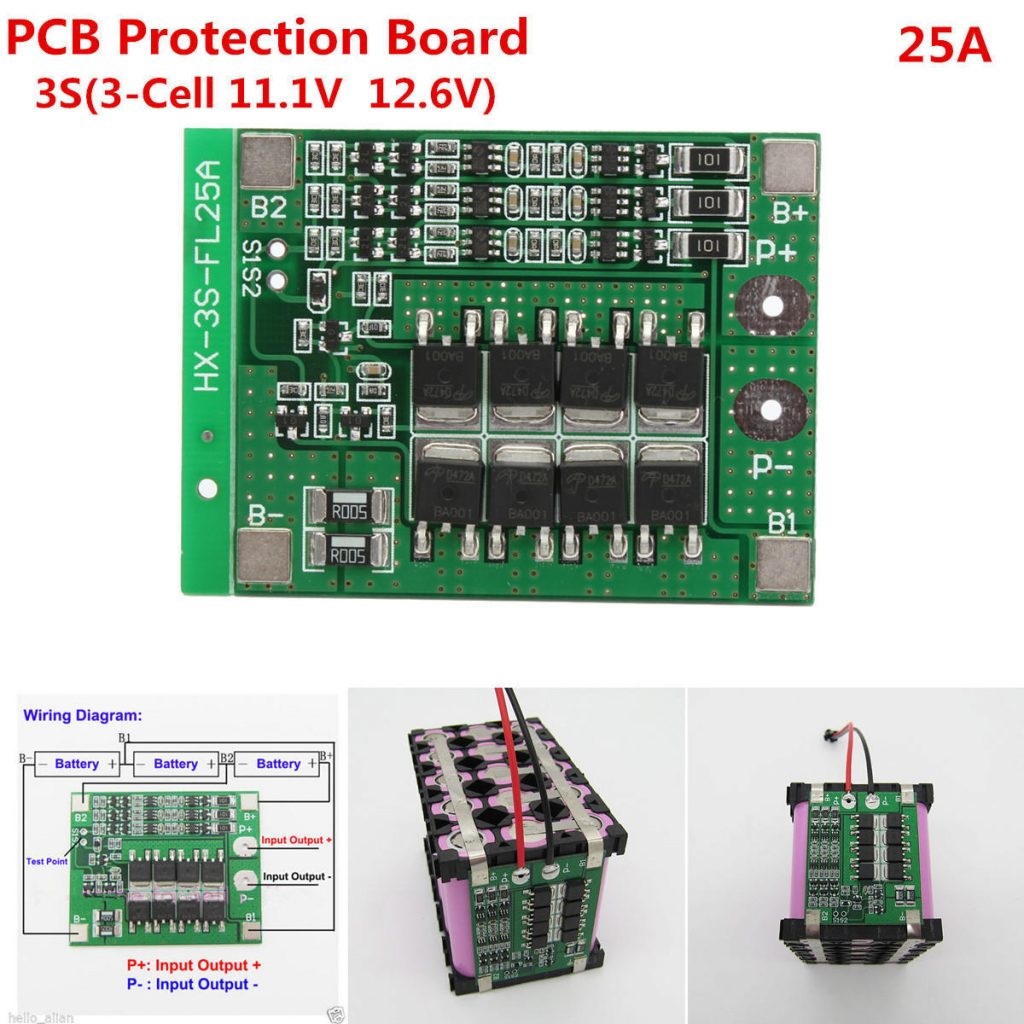

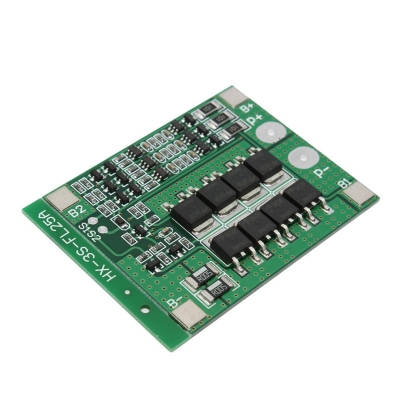

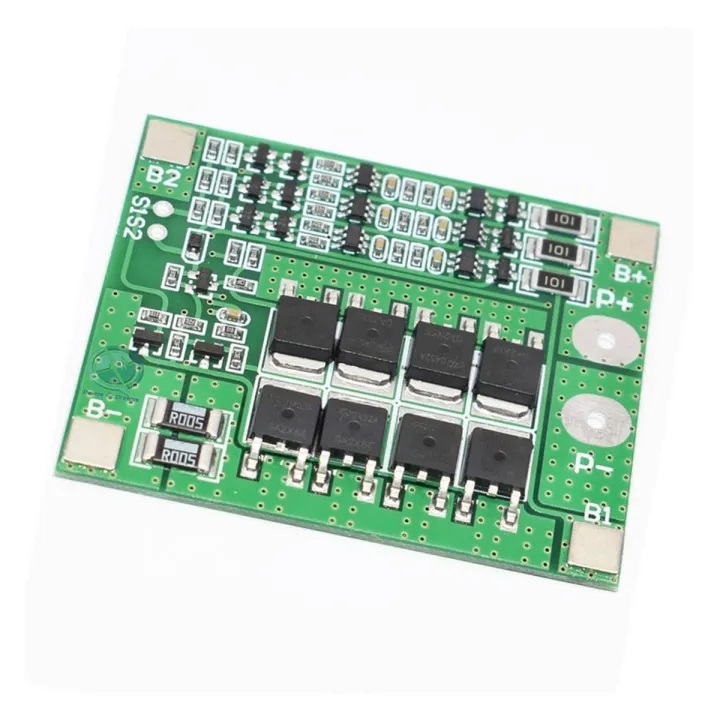

3S 25A 12 Volt Lithium Battery Charger Protection Board BMS Module for 3 Piece 18650 Li-ion Battery Cell Charging 11.1V 12.6V Multicolor

Category: Mobile Charger
SKU: OPSP732042
Seller: Open Shopping

Tk 350
SoldOut


Brand new

  • Size: about 56mm*45mm*1.2mm
  • Overcharge voltage range: 4.25-4.35v + 0.05v.
  • Over discharge voltage range: 2.3-2.7v + 0.05v.
  • Operating current: 0 – 25A.
  • Operating temperature: -40 – +50℃.
  • Instantaneous current: 35 – 40A.
  • Storage condition: -40 – +80℃.
  • Quiescent current: less than 30uA.
  • Balance current: about 40 – 50mA.
  • Effective life: more than 30000 hours.
  • Internal resistance: less than 100m ohm.
  • Short-circuit protection: protection, delayed self recovery.
  • Short circuit protection: Yes, delayed self recovery
