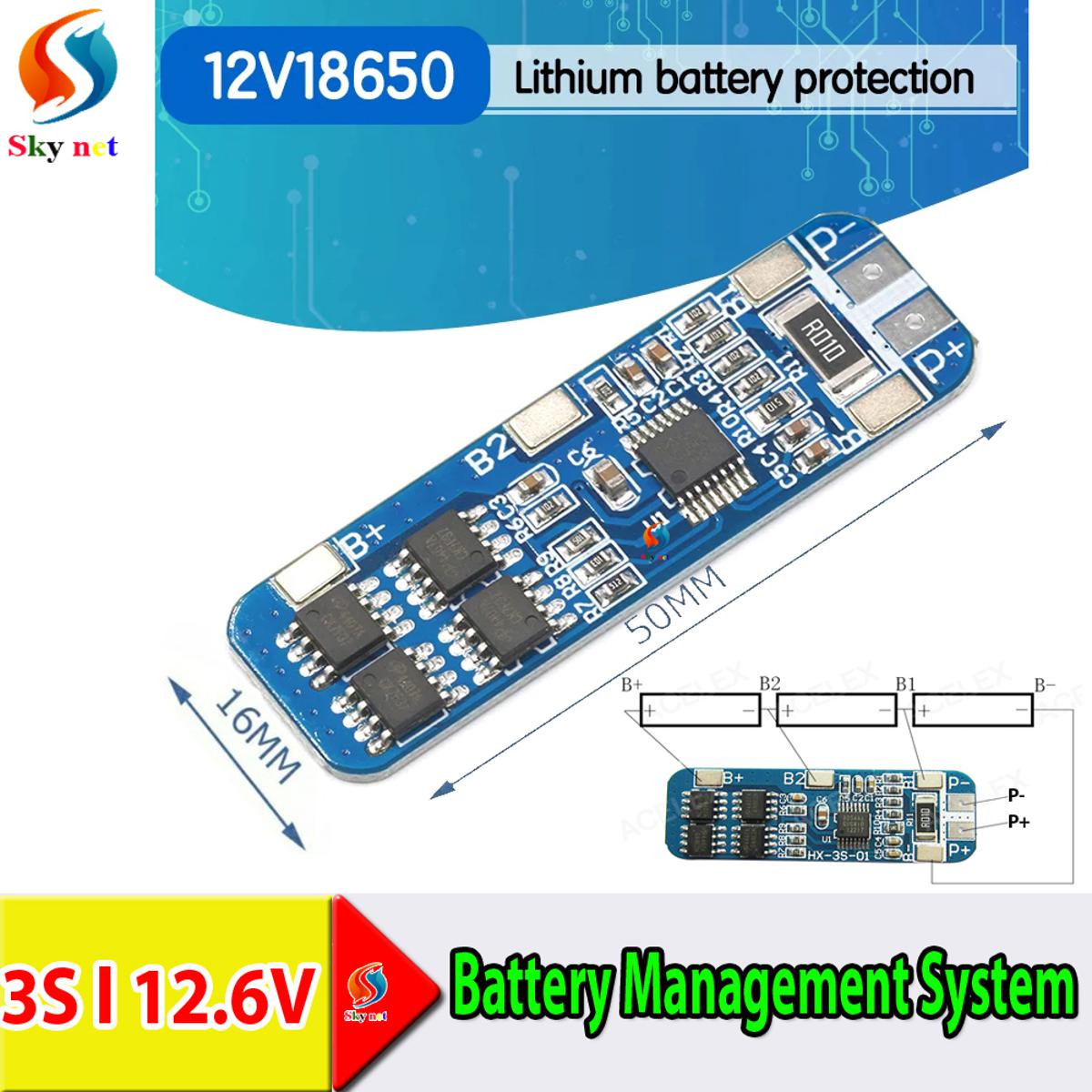

Picture of 3S 10A BMS Charger Protection Board for Pack of 3 Li-ion lithium Battery Cell
Picture of 3S 10A BMS Charger Protection Board for Pack of 3 Li-ion lithium Battery Cell

3S 10A BMS Charger Protection Board for Pack of 3 Li-ion lithium Battery Cell

Category: HDD, Processor & Main Board
SKU: SKNT59317
Seller: Skynet
bKash 10% Cashback ( T&C)
Tk 120
Tk 204
Tk 204
41% OFF
0 review(s)
  • Size: approx.50x16x1mm
  • Maximum discharge current: 10A
  • Overcharge detection voltage: 4.25-4.35V±0.05V
  • Over-discharge detection voltage: 2.3-3.0V±0.05V
  • Maximum working current: 5A-8A
  • Transient current: 9A-10A
  • Operating temperature: -40~50°
  • Storage temperature: -40~80°
  • Quiescent current: ＜6uA
  • Internal resistance: ＜60mΩ
  • Service life: ＞30,000 hours
*

Call For Order : 09613-800800
  • Size: approx.50x16x1mm
  • Maximum discharge current: 10A
  • Overcharge detection voltage: 4.25-4.35V±0.05V
  • Over-discharge detection voltage: 2.3-3.0V±0.05V
  • Maximum working current: 5A-8A
  • Transient current: 9A-10A
  • Operating temperature: -40~50°
  • Storage temperature: -40~80°
  • Quiescent current: ＜6uA
  • Internal resistance: ＜60mΩ
  • Service life: ＞30,000 hours





  • Size: approx.50x16x1mm
  • Maximum discharge current: 10A
  • Overcharge detection voltage: 4.25-4.35V±0.05V
  • Over-discharge detection voltage: 2.3-3.0V±0.05V
  • Maximum working current: 5A-8A
  • Transient current: 9A-10A
  • Operating temperature: -40~50°
  • Storage temperature: -40~80°
  • Quiescent current: ＜6uA
  • Internal resistance: ＜60mΩ
  • Service life: ＞30,000 hours
