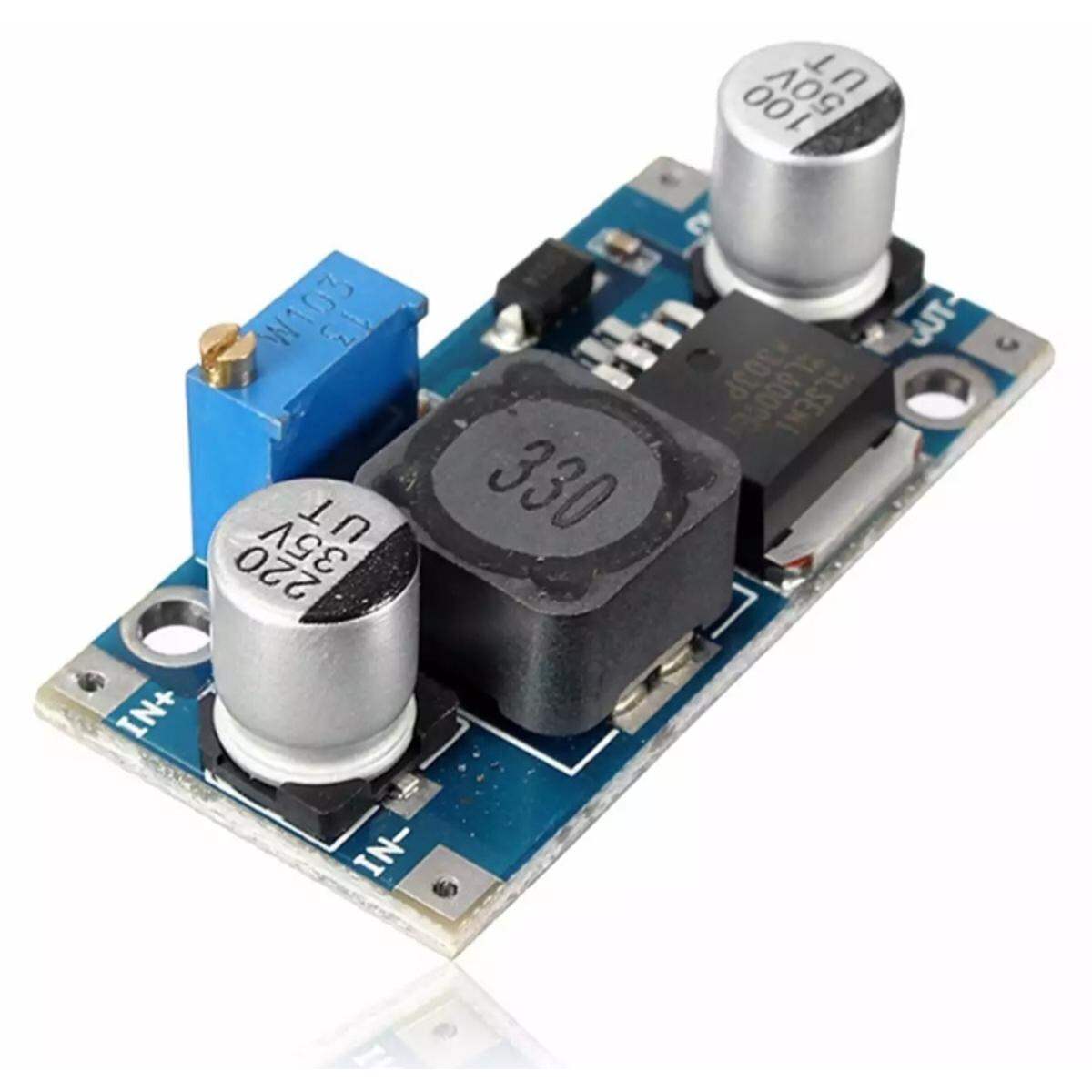

Product details of 3A XL6009 DC-DC 50KHz Adjustable Step Up Power Converter Module

• 1.Wide Input voltage: 3V-30V
• 2.Output Voltage: 4-35V (Adjustable)
• 3.Output current: rated current 3A MAX ( Heat-sink Needed)
• Switching Frequency: 50KHz
• Rectifier: Non-Synchronous Rectification
• Short circuit protection: current limiting, since the recovery

Product Features:
LM2577 chip module uses high-quality, high efficiency (up to 92%), heat a small, no increase in the case of the radiator can go to 15W, plus the radiator can be achieved after the 20W of output power.

Specification:
1.Wide Input voltage: 3V-30V
2.Output Voltage: 4-35V (Adjustable)
3.Output current: rated current 3A MAX ( Heat-sink Needed)
4.If you need its output power greater than 15W, please add with heat-sink
5.Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
6.Switching Frequency: 50KHz
7.Rectifier: Non-Synchronous Rectification
8.Short circuit protection: current limiting, since the recovery
9.Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
10.Full load temperature rise: 40 ℃
11.Load regulation: ± 0.5%
12.Voltage regulation: ± 0.5%
13.Size：47x26x15 mm

Note:
1. This module is adjustable boost module, you can adjust the module above the sinking blue adjustable resistor to change the output voltage. The maximum output voltage is 35V.
Modules indicated above IN-(negative input), IN + (positive input), OUT-(negative output), OUT + (positive output) must be connected correctly, otherwise it may cause damage to the module.
2. Do not exceed the rated output power of this module, for example the module (20W) can not be used to supply laptop (90W) use.
This module has no output short circuit protection, output short circuit if prolonged, may result in damage to the module.
