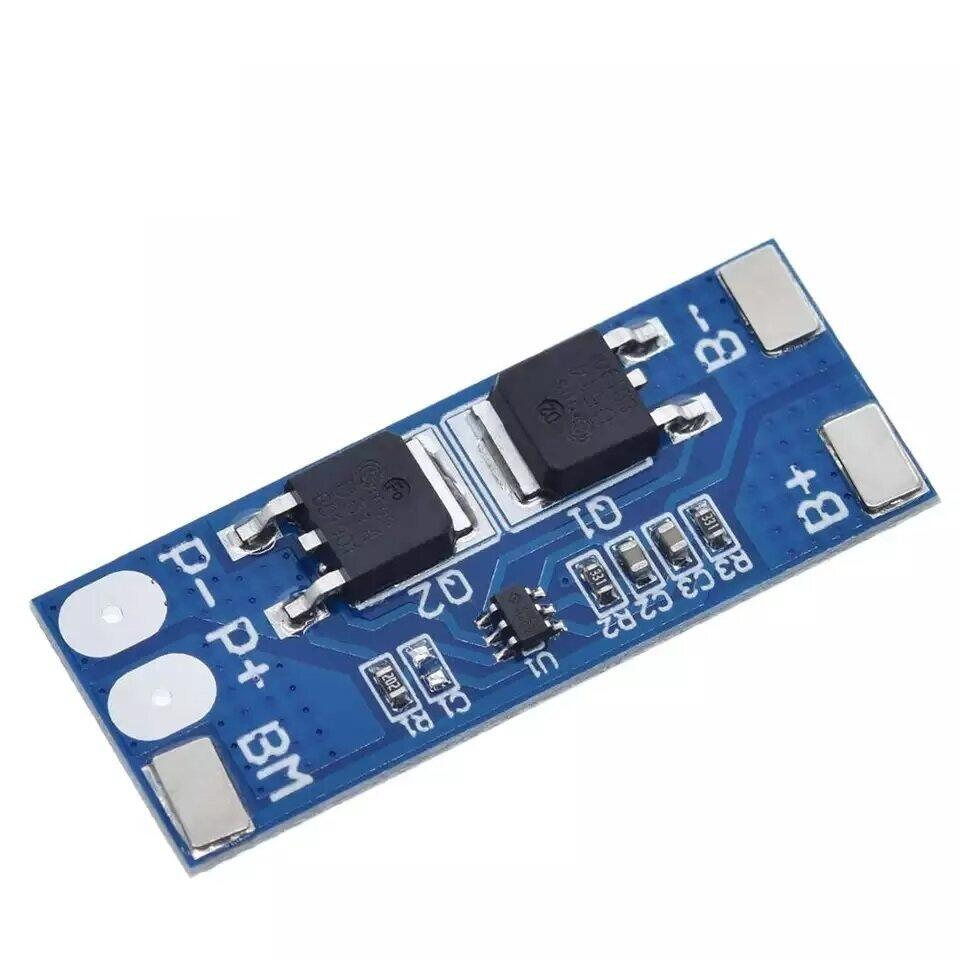

Picture of 2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A Peak Current Battery Protection Board bms Pcm For Li-ion Lipo battery Cell Pack max 15A
Picture of 2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A Peak Current Battery Protection Board bms Pcm For Li-ion Lipo battery Cell Pack max 15A

2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A Peak Current Battery Protection Board bms Pcm For Li-ion Lipo battery Cell Pack max 15A

Category: HDD, Processor & Main Board
SKU: SKNT42822
Seller: Skynet
bKash 10% Cashback ( T&C)
Tk 120
Tk 204
Tk 204
41% OFF
0 review(s)
  • Over charge voltage:4.25-4.35v±0.05v
  • Over dishcarge voltage: 2.5-3.0v±0.05v
  • Max continuous current:8A
  • Max peak current:15A
  • Working temperature:-40---+50
  • Storage Temperature:-40-- +80
  • Small current:less than 3uA
*

Call For Order : 09613-800800
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.





  • Over charge voltage:4.25-4.35v±0.05v
  • Over dishcarge voltage: 2.5-3.0v±0.05v
  • Max continuous current:8A
  • Max peak current:15A
  • Working temperature:-40---+50
  • Storage Temperature:-40-- +80
  • Small current:less than 3uA
