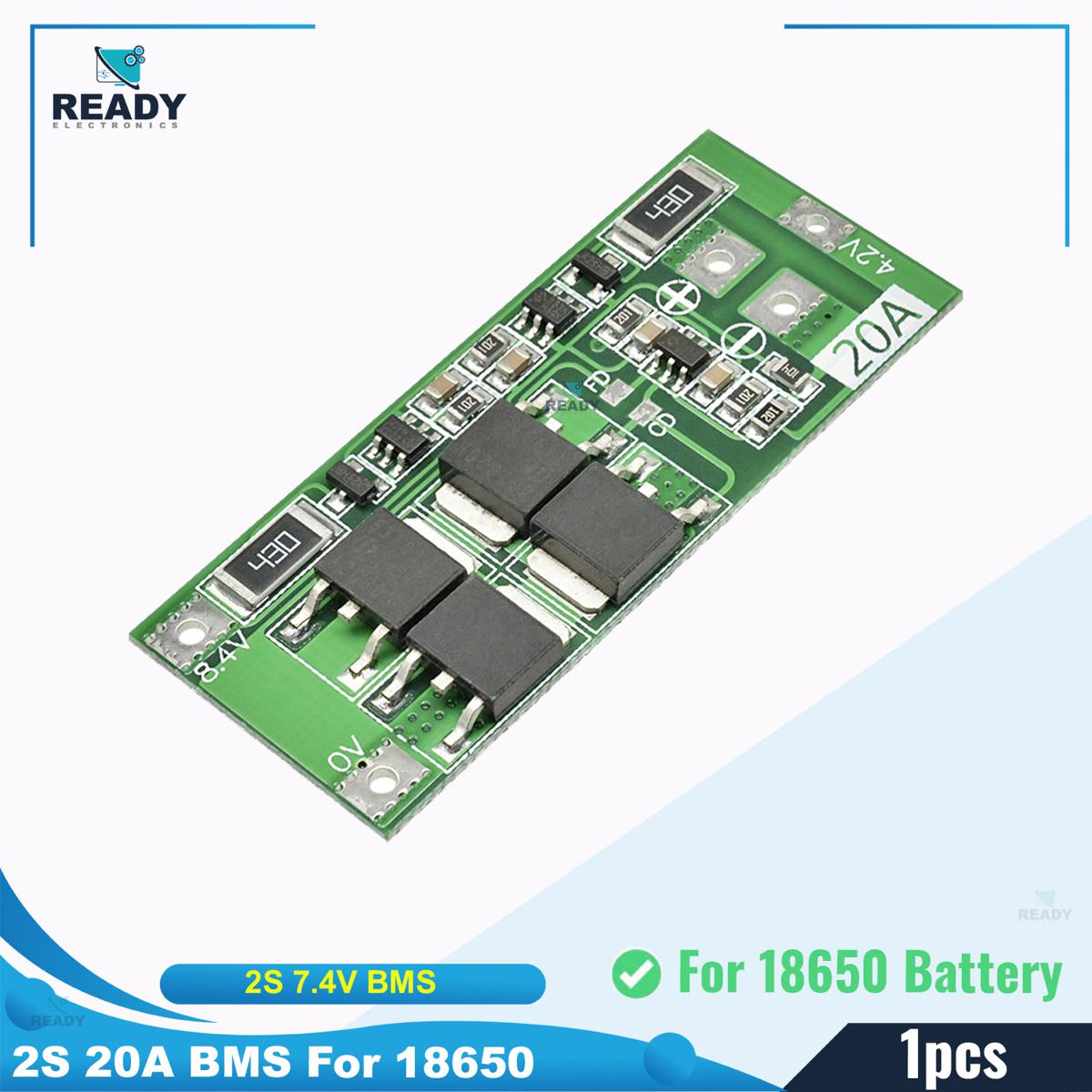

2S 20A Li-ion Lithium Battery Charger Protection Board PCB BMS For 20A Current Drill Motor 8V 9V Lipo Cell Module Enhanced

Category:
SKU: RDE02225
Seller: READY ELECTRONICS
Tk 162
Tk 650
Tk 650
75% OFF
0 review(s)
  • Model Number: X13090
  • Place of Origin: Guangdong, China
  • Brand Name: diymore
  • Base Material: FR-4
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.25mm
  • Min. Line Width: 3mi
  • Min. Line Spacing: 0.003"
  • Surface Finishing: Lead
  • Charging voltage: 8.4V - 9.0V
  • Continuous discharge current: 20A66 Wifi Wireless Shield
  • Continuous charge current: 10A
  • Product name: 2S 20A lithium battery protection board

Call For Order : 09613-800800
Description:
Applicable scope: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, without limitation on the dimensions) Charging voltage: 8.4V - 9.0V Continuous discharge current (upper limit): 20A (If the cooling environment is not good, reduce the load current use) Continuous charge current (upper limit): 10A Standard Edition: Suitable for starting drills with currents up to 25A below 50W, or resistive loads below 168W. Balanced version: Suitable for starting currents below 25A and below 50W power drills, or resistive loads below 168W, with balanced charging function. This is balance version! Note 1: The successful start of power drill requires two 10C-20C power batteries, or four 5C-10C power batteries (ordinary 18650 can not start drill! ! !); 0V and 8.4V cable, use 2 square mm Above copper wire (cannot use nickel plate!!!) Note 2: Connect 0V, 4.2V, 8.4V according to the diagram strictly. When connecting the battery for the first time, it needs to be charged before output. Note 3: When the battery is charged, “430” resistance heating is a normal phenomenon, indicating that the equalizing circuit is working; if the “430” resistance is also heating in the state of not charging, please check whether the wrong line is connected. For some customers with poor electronic foundation, please explain: Do not mix good batteries and bad batteries together! The capacity/internal resistance of 2 batteries should be as close as possible! (1 good battery + 1 bad battery = 2 battery use effect).





  • Model Number: X13090
  • Place of Origin: Guangdong, China
  • Brand Name: diymore
  • Base Material: FR-4
  • Copper Thickness: 1oz
  • Board Thickness: 1.6mm
  • Min. Hole Size: 0.25mm
  • Min. Line Width: 3mi
  • Min. Line Spacing: 0.003"
  • Surface Finishing: Lead
  • Charging voltage: 8.4V - 9.0V
  • Continuous discharge current: 20A66 Wifi Wireless Shield
  • Continuous charge current: 10A
  • Product name: 2S 20A lithium battery protection board
