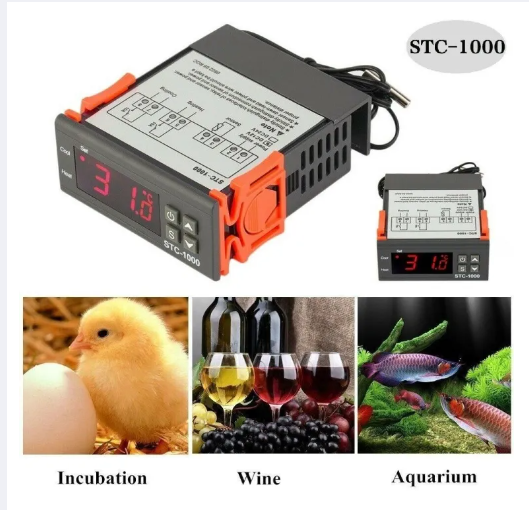

STC-1000 Operation Instruction

Main function

Switch the modes between cool and heat Control temperature by setting the temperature set value and the difference value:Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit orwhen sensor error.

Specification and size

◆Frontpanel size:75(L)x34.5(W)(mm) ◆Mounting size:71(L)x29(W)(mm)

◆Product size:75(L)x34.5(W)x85(D)(mm) ◆Sensor length: 1m(include the probe)

Technical parameters

◆Temperature measuring range:-50~99C◆Resolution:0.1C

◆Accuracy:±1C(_50C~70C)

◆Power supply:12V 24V110-220VAC 50Hz/60Hz◆Power consumption:<3W

◆Sensor.NTC sensor(1PC)

◆Relay contact capacity:Cool(10A/220VAC);Heat(10A/220VAC)

◆Ambient temperature: 0C~60C ◆Storage temperature:-30C~75

◆Relative humidity: 20~85%(No condensate)

Panel instruction

Specifications of 1pcs STC 1000 LED Digital Thermostat for Incubator Temperature Controller Thermoregulator Relay 12V 24V 220V
