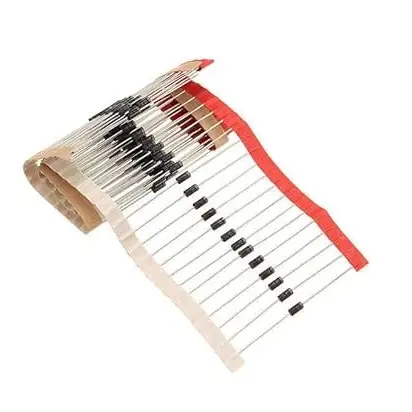

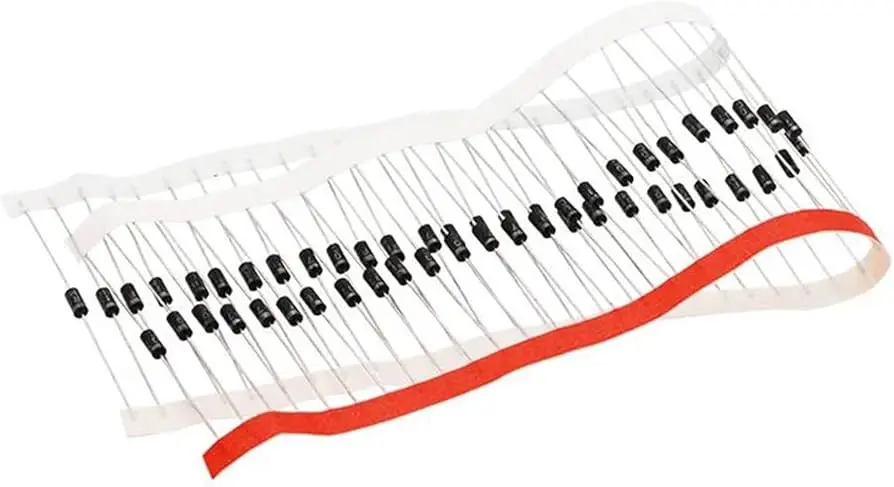

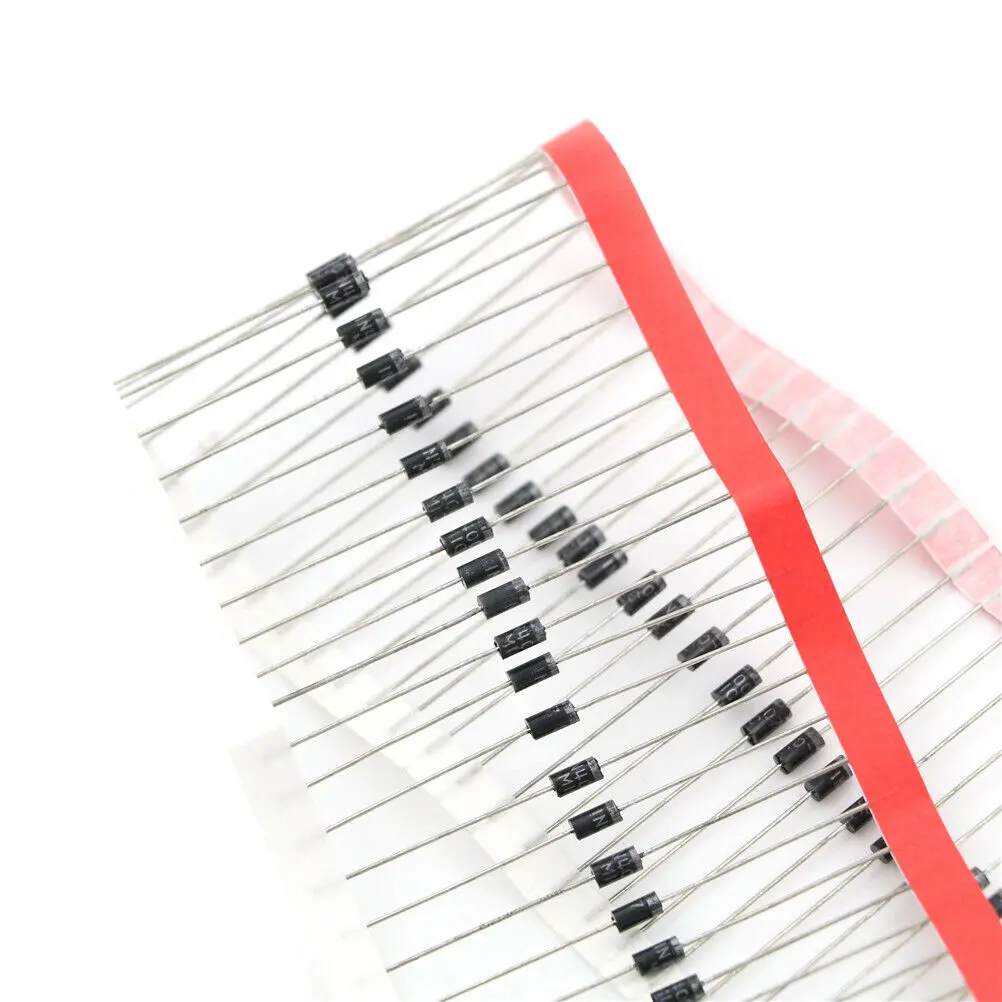

Product Name : Rectifier Diodes Type: Standard Recovery Rectifier Diode Model : 1N4007 Mounting Type: Through Hole Color : Black, Silver Tone Package:DO-41 Maximum Recurrent Peak Reverse Voltage : 1000 V Maximum Average Forward Output Current : 1 A Maximum Surge Current (IFSM): 27A Forward Voltage Drop (VF): 1V (at 1A) Reverse Leakage Current (IR): 5μA (at 25°C) Maximum Forward Voltage Drop per element at 1.0A DC : 1.1 V Operating and Storage Temperature Range : (– 65 to +175 °C) Weight :0.33 grams Applications: AC/DC rectification DC power supplies Unidirectional voltage protection Freewheeling diodes LED driver circuits General purpose low-power rectification
